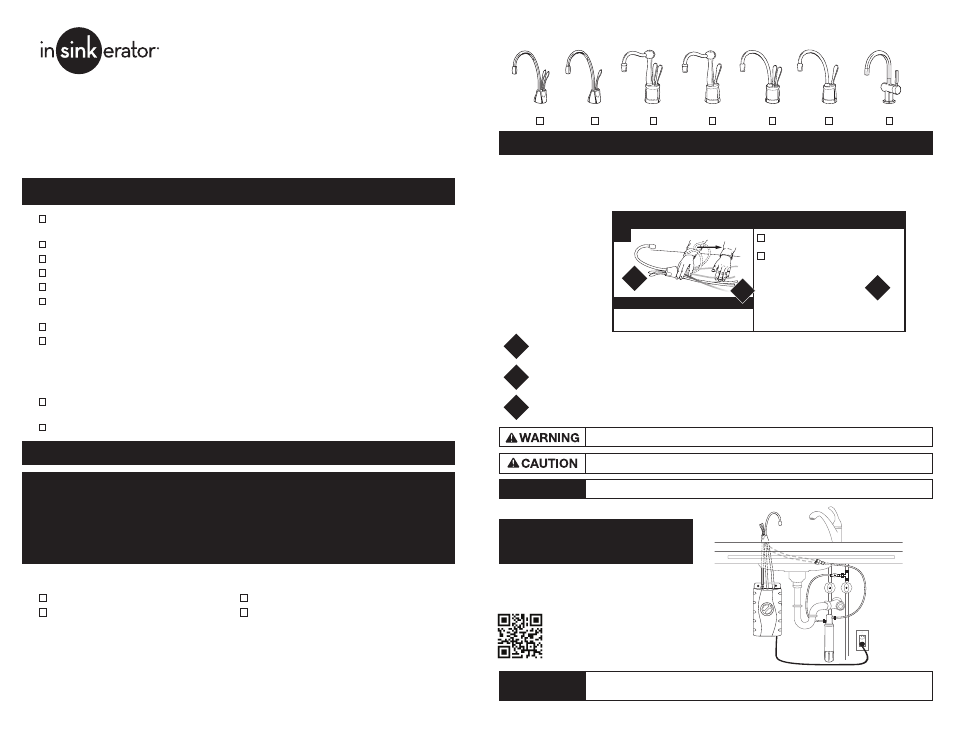

A
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
INSTALLING THE FAUCET
Unpack dispenser components.
On a firm, flat surface, carefully
straighten the copper tubing.
NOTICE
HOW TO USE THIS INSTRUCTION MANUAL
Provides a step-by-step narrative describing the installation step, with check boxes
that can be marked as you progress through the installation.
Contains simple illustrations that provide visual instruction to support the narrative.
Important safety messages that will require your attention during the step.
These instructions are separated into main sections, indicated by numbers, and subsections,
indicated by capital letters. The manual is setup this way to allow you to take a break at any
point after completing a section or subsection without affecting the installation process.
What you’ll see in the
instruction manual:
1
2
3
Identify the model of your instant hot water dispenser and record it here:________________
1
2
A potentially hazardous situation, which, if not avoided, could result in death or serious injury.
A potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
Do not plug in the power to the hot water tank Until Step 6C. To avoid permanent damage to
the product, only operate the tank after it is filled with water.
3
We are delighted that you have chosen the InSinkErator ® Instant Hot Water Dispenser
to be a part of your home. This unique appliance will save you time and effort in the kitchen,
and you’ll enjoy discovering new uses for it each day. That’s exactly why millions of people are
now using an InSinkErator Instant Hot Water Dispenser.
We are confident that by following our step-by-step instructions, you’ll soon be enjoying the
convenience of instant hot water.
For your satisfaction and safety, read all instructions, cautions and warnings before installing or using this instant
hot water dispenser.
This particular unit is not intended for commercial use.
Make sure that all electrical wiring and connections conform to local codes.
A standard 115-volt grounded electrical outlet is required under the sink for the dispenser’s electrical power.
The wall outlet powering your dispenser must have power supplied to it continuously.
This outlet must be fused and should not be controlled by the same wall switch that operates the disposer, unless
you have a SinkTop Switch ™ from InSinkErator ® .
It is recommended that a dedicated control valve be installed on the cold water line supplying water to this system.
If you suspect elevated levels of chlorine in your water, or your water has a rusty appearance before the installation
of this unit, it is recommended to use our water filtration system.
This product contains stainless steel. The manufacturer cannot guarantee against rusty water because of the
number of factors that are involved beyond the manufacturer’s control. However, the sudden appearance of rusty
water discharged from the hot water dispenser may indicate the need for service or replacement of this product.
The use of a water filter should NOT result in the water pressure to drop below 30 psi (207kPa). If it does, this will
prevent your unit from operating properly.
Moving parts inside the tank causing a rattling noise is normal.
WHAT YOU SHOULD KNOW BEFORE YOU BEGIN
n Phillips and flat blade screwdrivers
n Pencil
n Tape measure
n Level
Equipment You May Need:
Equipment Required:
n Drill
n T-fitting
n Dedicated control valve
n Adjustable wrench
n Philips Screw Driver
n Pencil
n Tape Measure
Anchors for drywall
Hole saw Basin wrench
Hole punch
If you intend to use the sprayer hole in your sink for your dispenser, you may need a basin wrench and a
1/8" plug or a 1/4" cap ( not supplied) for the faucet spray hose line. See Step 1B.
If you need to cut a mounting hole in your stainless steel sink, you may need a 1 1 ⁄
4
" - 1 1 ⁄
2
" hole saw made
for cutting stainless steel or a hole punch. Consult a professional if you are drilling into a surface other
than stainless steel.
WHAT YOU NEED TO GET STARTED
F-HC3300/F-H3300 F-HC1100 F-GN1100 F-GN2215 F-HC2215 F-GN2200 F-HC2200
OVERVIEW OF A
COMPLETED SETUP
2 3
Notice is used to address practices not related to personal injury. NOTICE
NOTICE
To see a tutorial of this installation:
http://goo.gl/yYrfOA
