7

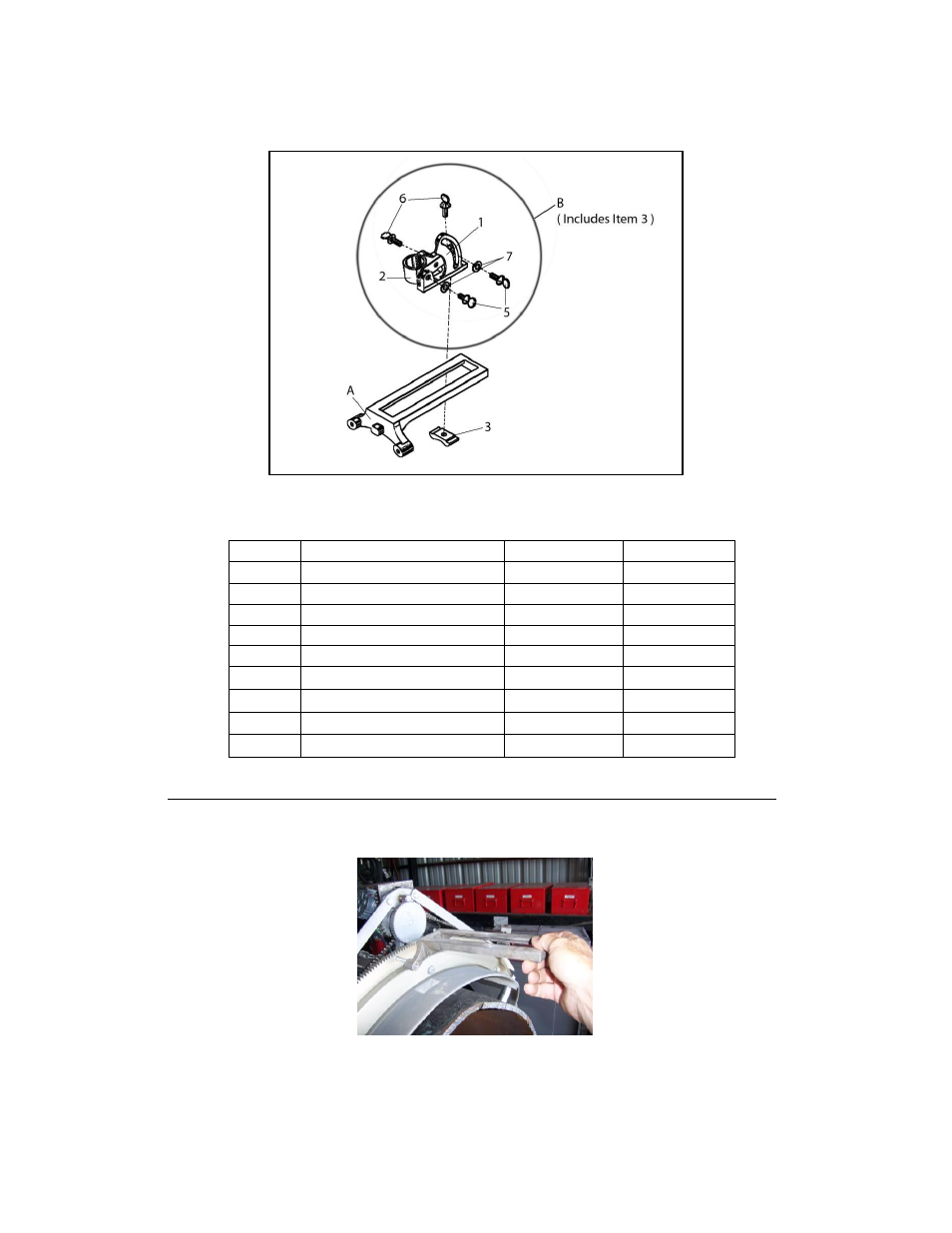

Figure 3: Torch Arm Part Number: 03-0101-001
Torch Carrier Assembly Part Number: 03-0100-002
Table 3 - Torch Arm and Torch Carrier Parts Identification
ITEM # PART DESCRIPTION PART # QUANTITY
A Torch Arm 03-0101-001 1
B Torch Carrier Assembly 03-0100-002 1
1 Torch Clamp Base 03-0100-003 1
2 Torch Clamp 03-0100-005 1
3 Clamp 03-0100-004 1
4 Screw Kit (includes 5, 6 & 7) 03-0100-029 1
5 Thumb Screw, 3/8-16 x 3/4” 22-38TS-034 2
6 Thumb Screw, 3/8-16 x 1” 22-38TS-100 2
7 Flat Washer, 3/8” 12-0038-F00 2
5.0 Installation of Torch Arm, Torch Carrier Assembly and Torch
5.1 Install Torch Arm (Figure 3, Item A) over the two threaded studs (Figure 4 item 16) in the face of the 4SA
Machine Ring Gear (Figure 4 Item 3).
Picture 3 – Installation of Torch Arm on the Threaded Stud
5.2 Secure the Torch Arm to the Ring Gear with the wing nuts (Figure 4 item 17) provided in the Spacer Bolt Box.
