IDEAL 4107; IDEAL 4109

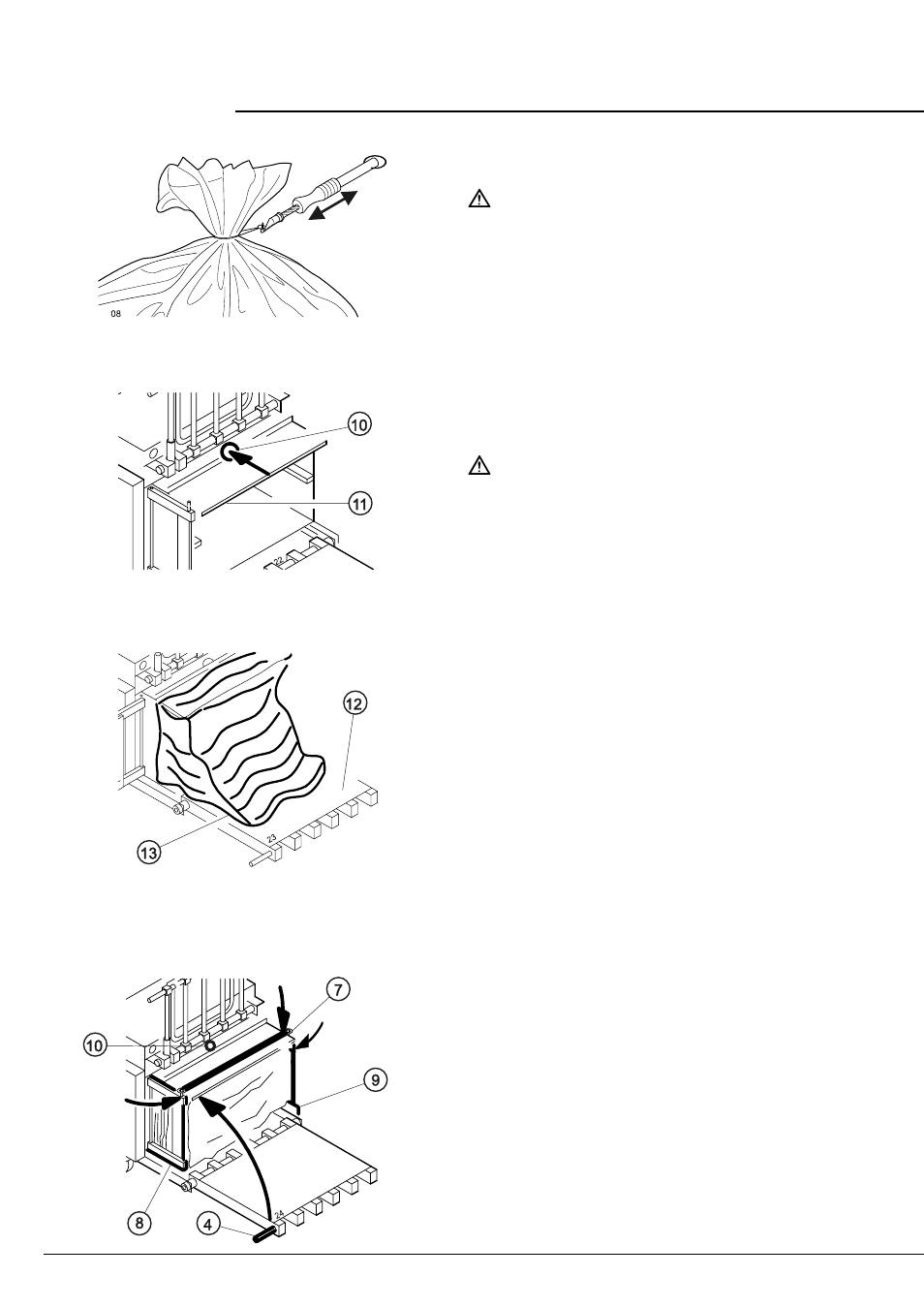

- While removing the plastic bag push down the
remaining paper.
- Place pressed bale on the floor.
Danger!
Do not reach into the hopper.
­ Danger of getting cut!
- Tie bales or seal with locking device. (for sealing
parts and binding wires see accessories).
- Press ball knob (10) for approx. 2 secs. ­ Piston
reverses for a short distance.
Danger!
Do not reach under the cover sheet (11).
­ Danger of getting cut!
- Stand upon the bale ejecting guard (12).
- Slide new plastic bag (13) over the bale hopper.
- Swing in clamps (8) and (9) and secure on
tension rod (7).
- Press ball knob (10) for approx. 2 secs. ­ Piston
reverses for a short distance.
- Swing up bale ejecting guard (4).
