- 20 -
IDEAL 4860 • IDEAL 5260 • IDEAL 6660
1
9
6
4
5
3
7
8
8
2
1
T
Memory
1

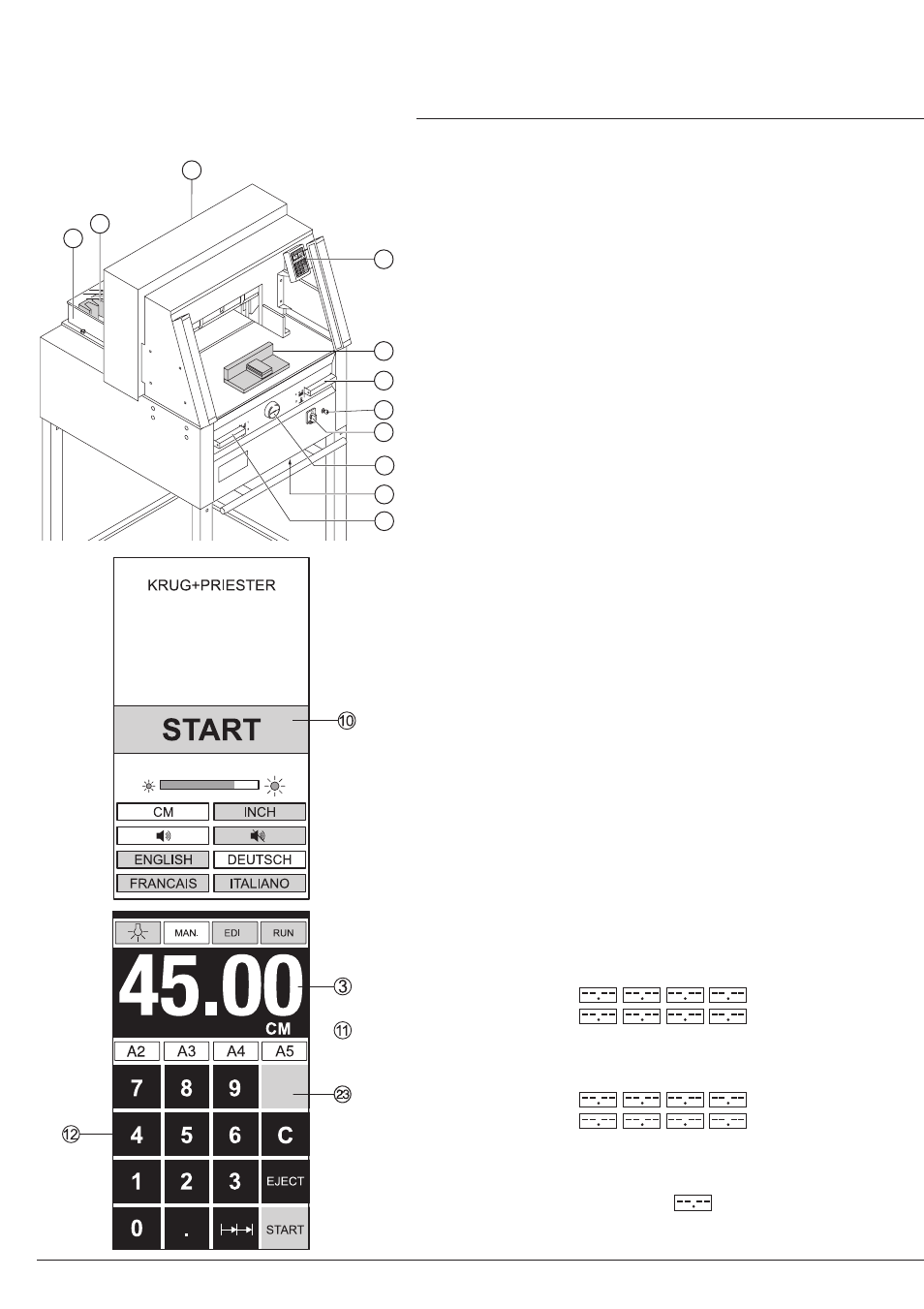

Operating elements
A - Safety two-handed control system
Pre-clamping and cutting
B - Overload switch
(blade drive/clamp drive/
backgauge drive)
C - Backgauge control
D - Main switch
E - Hand-wheel for backgauge setting
F - Key switch
G - Backgauge
H - Side lay left and right
• Operation •
Start machine
• Main switch D to position "I", insert the key
F for the control panel and turn to the right.
Start screen appears
The following functions are changeable:
Brightness
CM/INCH
Touchtone ON/OFF
Language
•
Press START J backgauge G moves to
the rear and searches for the reference
position, wait until a measurement
is shown in the display C
IDEAL 4860 = 45.00 cm, 17.72 inches
IDEAL 5260 = 52.00 cm, 20.74 inches
IDEAL 6660 = 61.00 cm, 24.02 inches
• The DIN and free programmable
measurements are recallable with the
respective buttons W .
Memory 1: A2, A3, A4, A5,
Memory 2: A6, A7, B3, B4
Memory 3:
Memory 4:
and in inch
Memory 1: 4¼", 5 ½", 7", 8 ½"
Memory 2: 11", 12", 14", 17"
Memory 3:
Memory 4:
In memory 3 + 4 (mm and inch) no
measurements are saved. Until a first input
of data the following will be shown in the
corresponding fields: . The
measurements entered remain stored.
They cannot be deleted but overwritten .
