290-0921, rev 1.0
Feb. 1998
DigiCard/24 User’s Manual Addendum
3

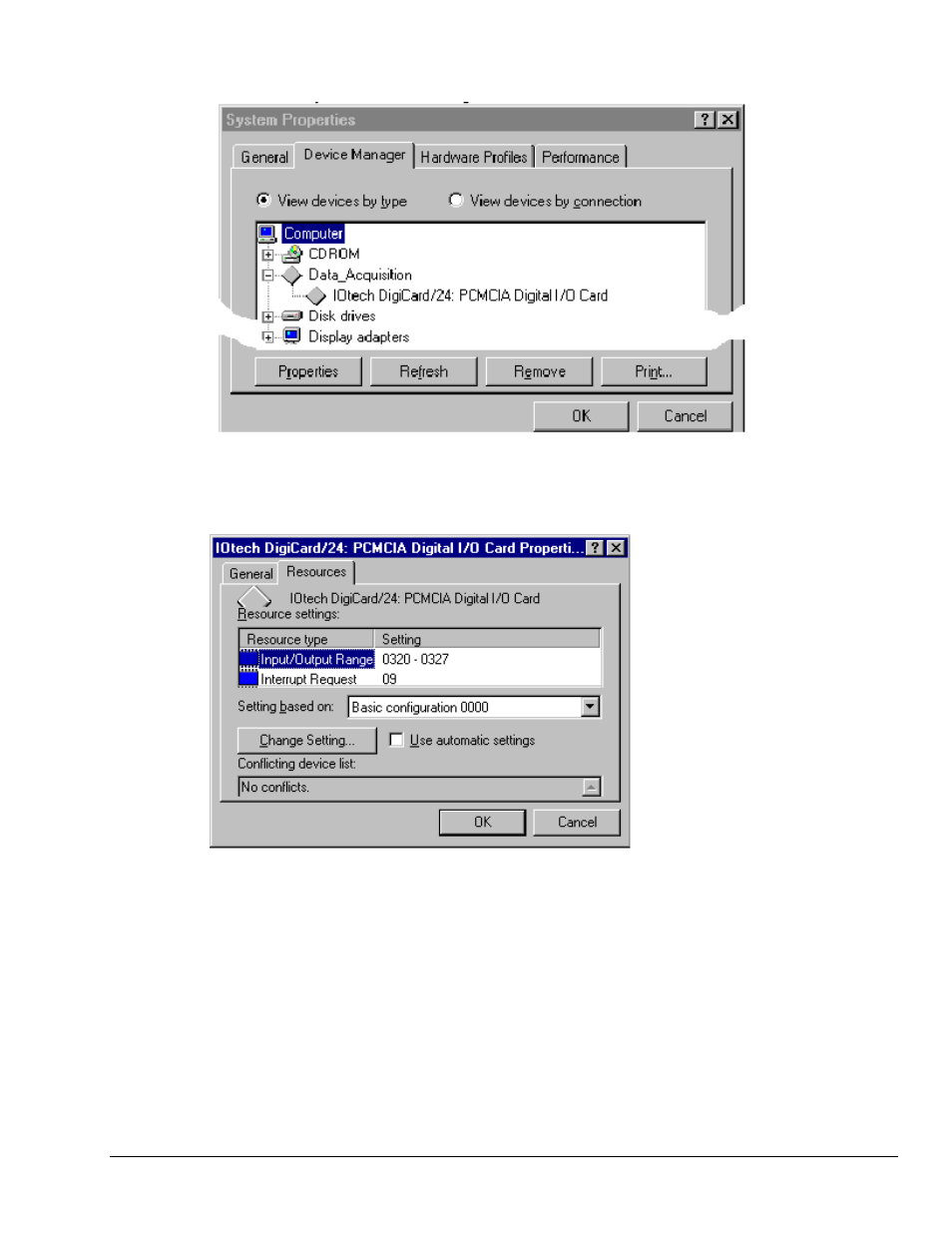

c. Select Data_Acquisition. The following text should appear: “IOtech DigiCard/24: PCMCIA Digital I/O
Card” as indicated in the above figure.
d. Double-click on the DigiCard/24 selection (from step 9c). Then click on the Resources tab. A screen image
similar to the following will appear.
10. Record the I/O address assigned by Windows 95. This is the Input/Output range setting. In our example the
address is 0320 - 0327. You will need this information to run DigiView.
