10
Configuration

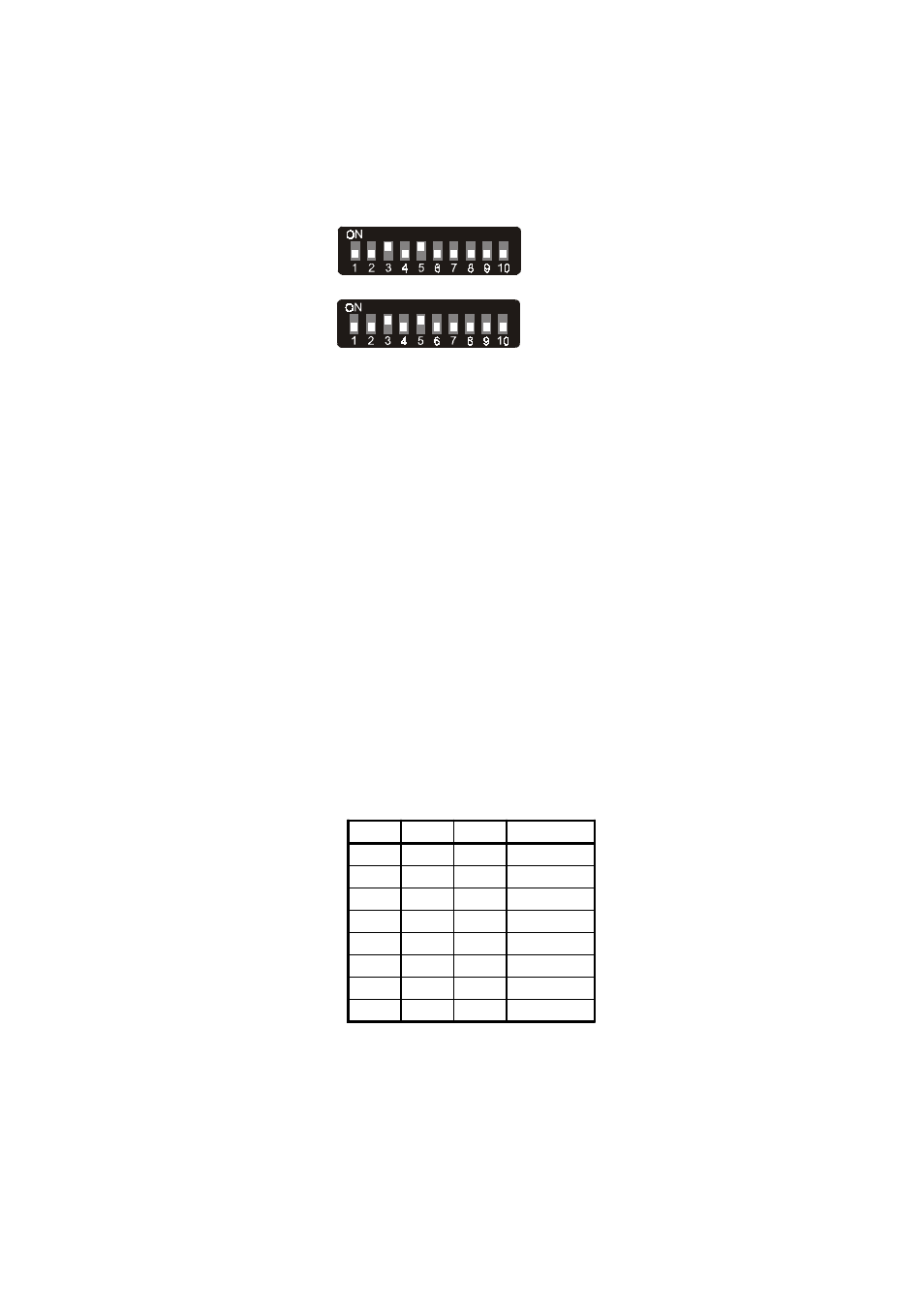

There are two DIL switches to configure the UA509 as described below.
D IL 0
D IL 1
Default settings of COM0(DIL0) and COM1(DIL1):
Baudrate:
9600 Baud
Framing:
7E2
Output Mode:
once per second
Time Zone:
MEZ/MESZ (CET/CEST)
The two DIL switches SWx9 and SWx10 are reserved.
Transmission Speed
The transmission speed of each channel can be selected by the levers 1 to 3 of the DIL
switches. Using RS232 mode both interfaces can be set to baudrates between 600 baud
and 57600 baud. If a 20mA current loop output driver is used, the transmission speed
of that channel should not exceed 9600 baud. Changes in these settings become valid
after reset.
SWx-1
SWx-2
SWx-3
Baudrate
off
off
off
600
on
off
off
1200
off
on
off
2400
on
on
off
4800
off
off
on
9600
on
off
on
19200
off
on
on
38400
on
on
on
57600
