EDVWSPV Horizontal Power Vent System
Part No. XG1303 - 120110
Dimensions
9 3/4"
REF.
11 1/16"
11 1/16"
9 3/4"
10 9/16"
4
9.0

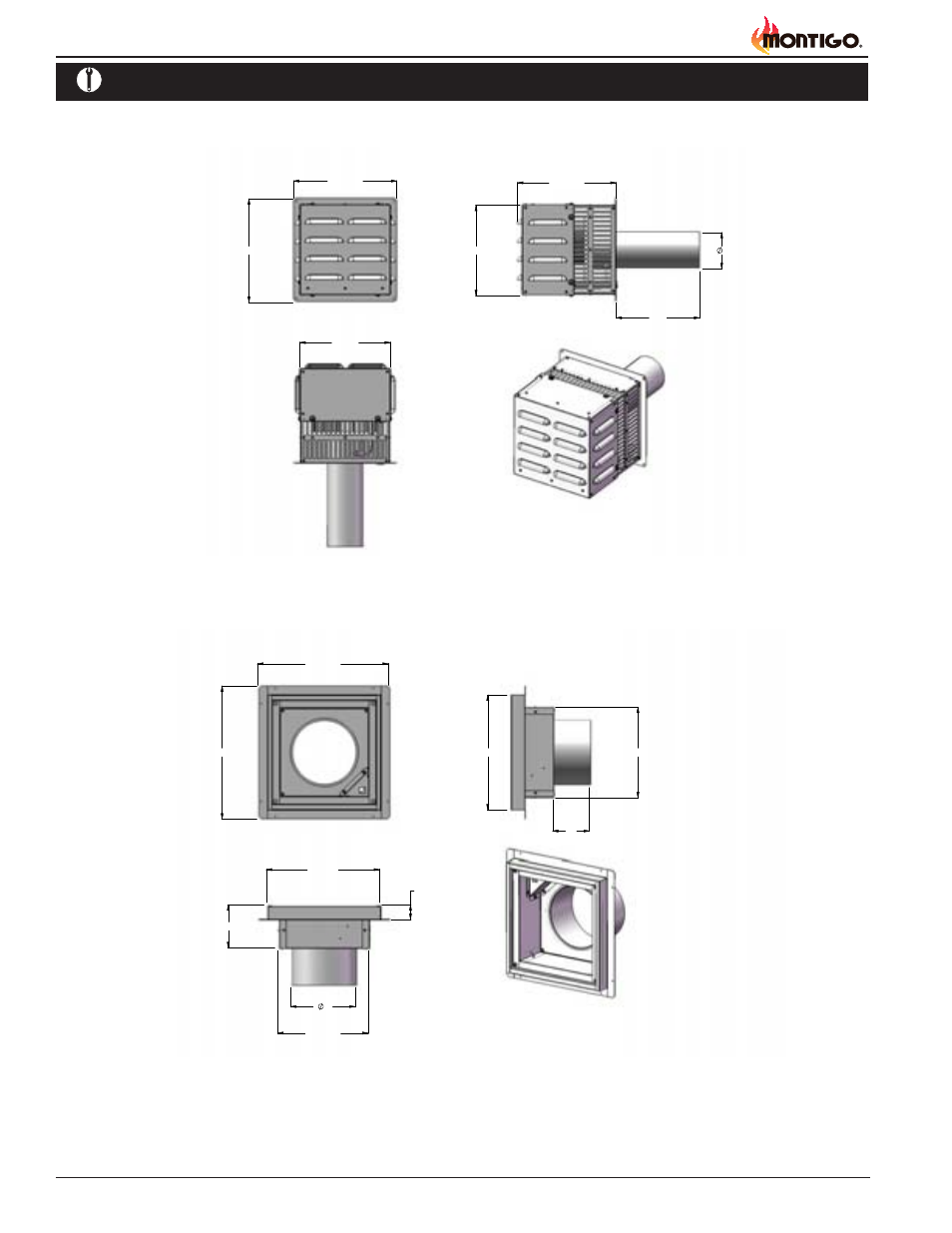

Dimensions EDVWSPV47.
Dimensions EPVF47 mounting frame for EDVWSPV47.
14 1/4"
14 1/16"
12 1/8"
1 1/2"
7
9 11/16"
4 9/16"
12 5/16"
4
9 11/16"
