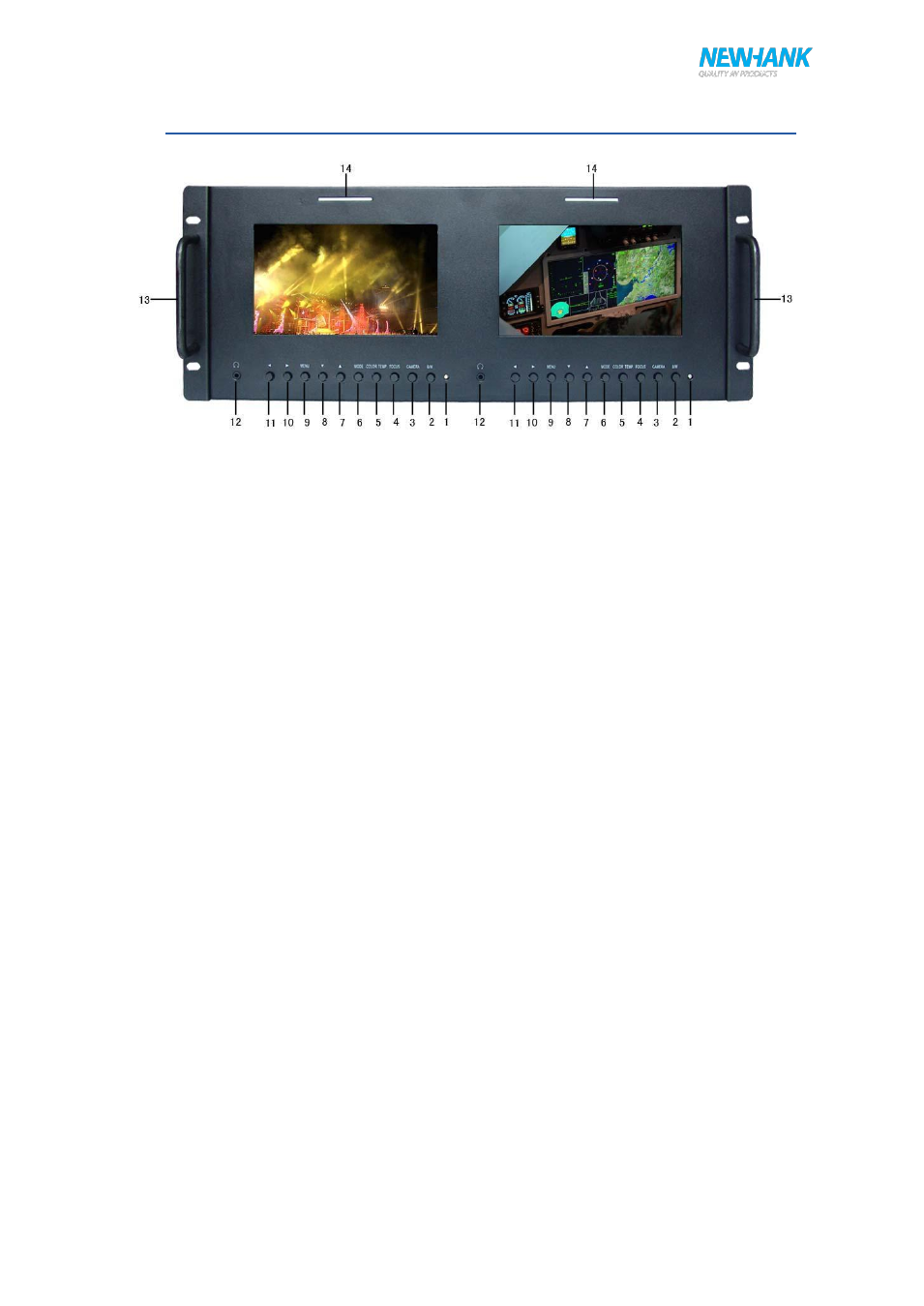

5. PANEL FUNCTION AND BUTTON OPERATING INSTRUCTION
1. POWER INDICATOR: Orange light is NO signal state, green light is in working state.
2. B/W: Switch on/off Check Field (Red, Green, Blue, Monochromatic and color)
3. CAMERA: Canon 5D Mark II Camera Mode(camera mode is recording, full display on monitor, No
delay, No deform).
4. FOCUS: Crochet Focus Assist (peaking filter) Key
5. COLOR TEMP: Color temperature selection
6. MODE: Input signal selection
7. ▲: Menu item value up adjustment button. No Menu State to cycle adjust the 5 level brightness
8 .▼: Menu item value down adjustment button
9. MENU: To activate or close OSD menu
10 .►: Right adjusting key, function confirmation or increase the menu analog value
11. ◄: Left adjusting key, function confirmation or decrease the menu analog value
12. : Earphone insert.
13. The front handle.
