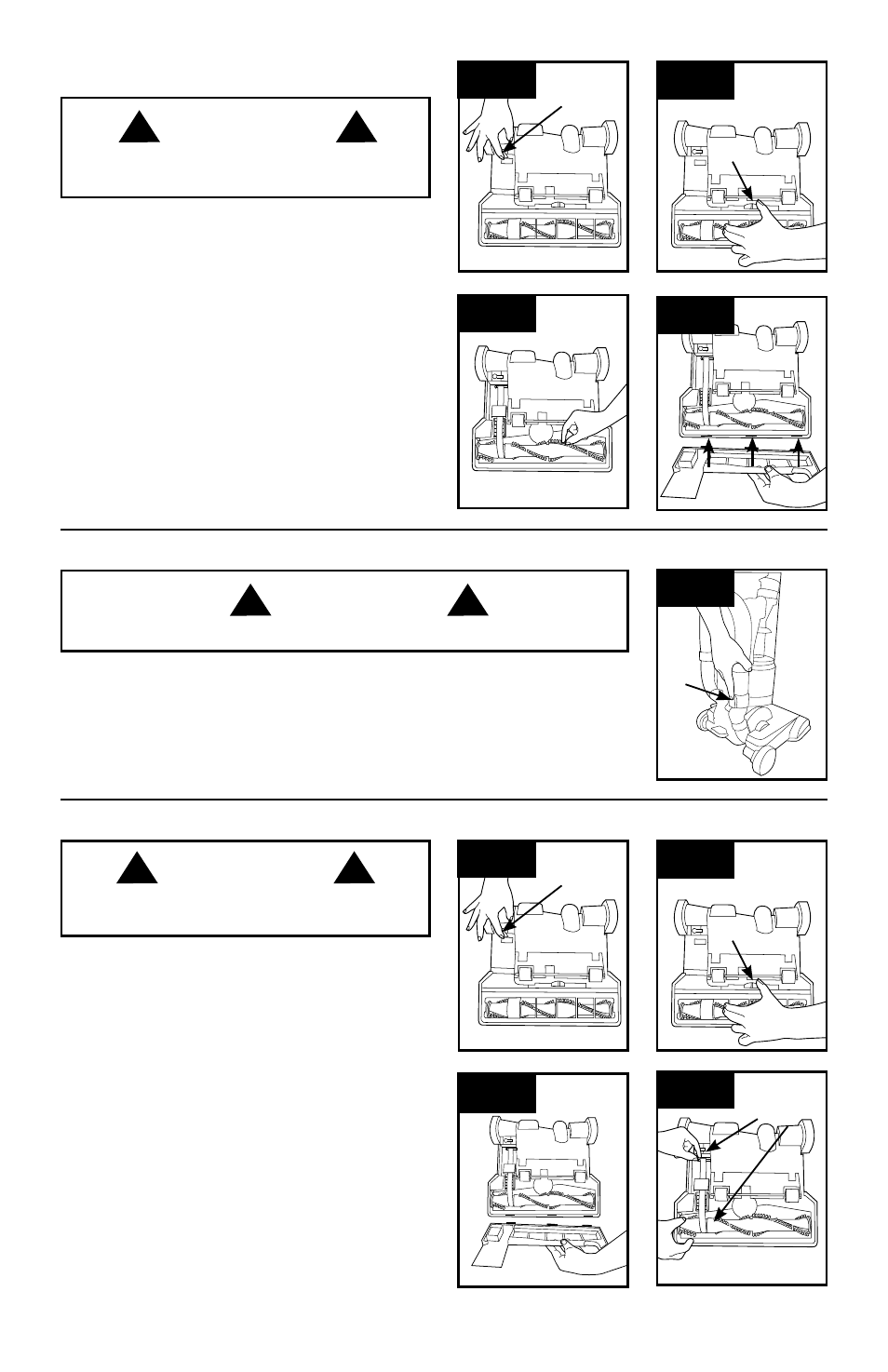

11
Hose
: How to Clean
4.17
A
CAUTION
! !
To reduce the risk of injury from moving parts - Unplug vacuum before servicing.
4.17 To remove hose for tool use, press the hose release button (A) and pull
hose end out.
Clear away debris or obstructions from hose. Do not use sharp objects to clean
out hose as they can cause damage. To lock back into place, push hose into
hose tube until you hear a click.
BRusHRoll
: How to Clean
4.13 Turn vacuum over so bottom side is facing up.
Rotate red upper latch (A) counterclockwise.
4.14 Slide red lower latch (B) to the unlock position.
4.15 Pivot out bottom plate and remove any debris
and/or hair from brushroll.
4.16 Reposition bottom plate, aligning the three
tabs along front edge of nozzle guard with the
three slots in nozzle. Rotate back into position.
Slide red lower latch to Lock position, and rotate
red upper latch clockwise.
4.13 4.14
A
B
4.15
CAUTION
! !
To reduce the risk of injury from moving parts
- Unplug vacuum before servicing.
4.16
Actual model may vary from images shown.
Belt
The belt is located under the bottom plate of the
vacuum and should be checked from time to time
to be sure it is in good condition.
when to Replace
How to Replace
4.18 Turn vacuum over so bottom side is facing up.
Rotate red upper latch (A) counter clockwise.
4.19 Slide red lower latch (B) to the unlock position.
4.20 Lift off bottom plate.
4.21 Remove used belt from brushroll (C) then from
motor shaft (metal rod) (D) and discard.
Replace belt if it is stretched, cut or broken.
To check the belt, refer to Fig. 4.18 - 4.20.
4.20
C
D
4.21
4.18 4.19
A
B
CAUTION
! !
To reduce the risk of injury from moving parts -
Unplug vacuum before servicing.
