Thunder Tiger Titan X50 EF - Manual (Page 20)

-19-

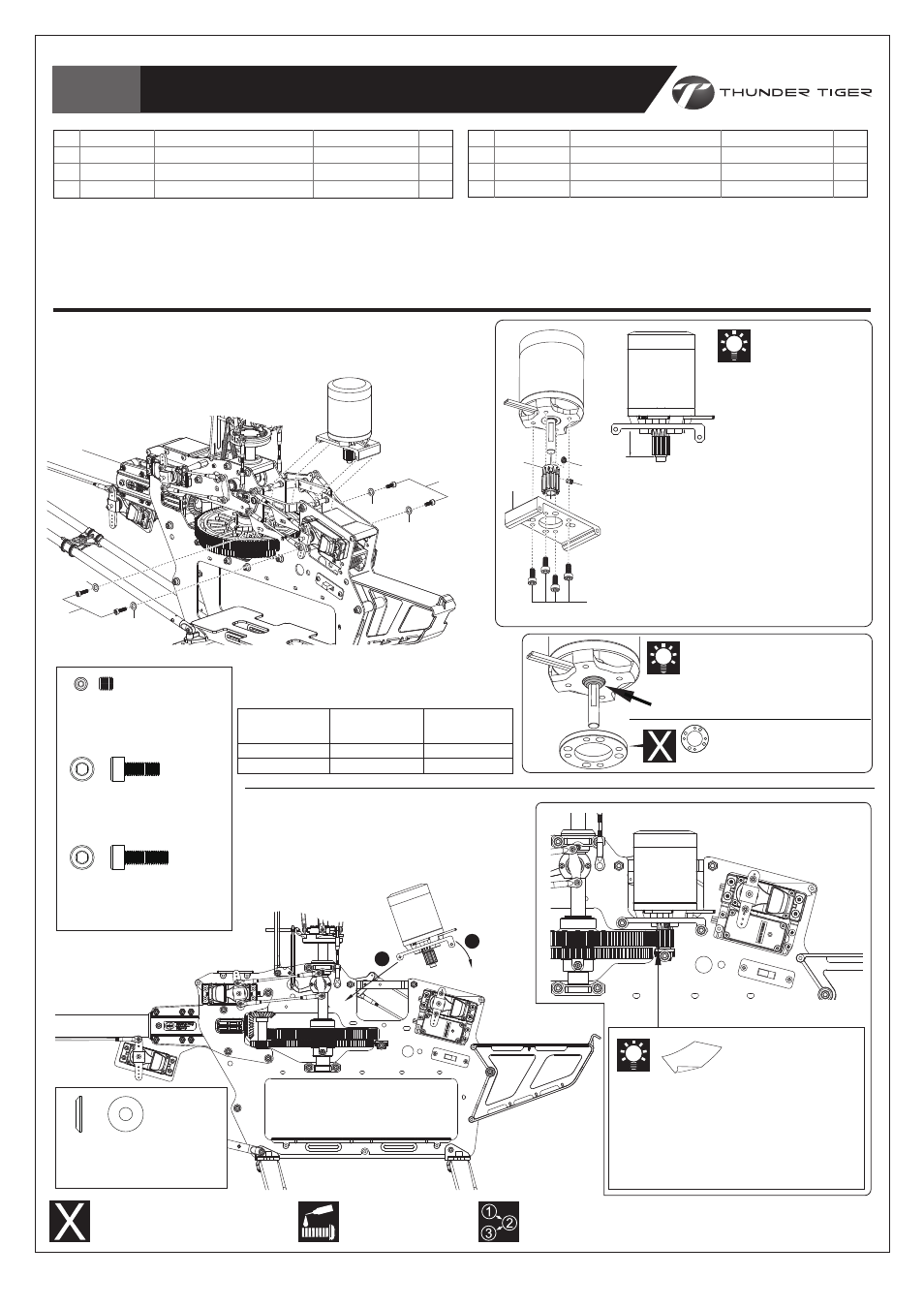

Power Motor Installation / 動力馬達安裝
Bag K
Secure all screws shown on this page with a drop of thredlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Motor Recommended for Stock Gear Ratio:
使用原廠設定齒比時，馬達KV值建議：
For proper mesh, insert a paper strip
between the Pinion and Main Gear,
and then push the Motor/Main Gear
together. Remove the paper strip.
在驅動齒輪及主齒盤插入一紙片可取得兩者
間適當的間隙，完成後請記得抽出紙片。
Paper strip
紙片
No.
1
2
3
Qty Material No. Description 名稱 No.
4
5
6
Qty Material No. Description 名稱
(1)
(1)
(2)
(2)
(5)
(6)
(3)
(4)
(6)
1
2
HMC3-10B
BK0087
BK2260 BK2584
HMC3-8B
HME4-3B 內六角螺絲, M3x10
墊片, d3xD8xW1.4
馬達上座
馬達齒-15T
內六角螺絲, M3x8
無頭內六角螺絲, M4x3
SOCKET SCREW,M3x10
WASHER,d3xD8xW1.4
UPPER MOTOR MOUNT MOTOR PINION-15T
SOCKET SCREW,M3x8
SET SCREW M4×3 4
4
1
1
4
2
Must be purchased separately
改裝品需另購
BK2557
MOTOR MOUNT ADAPTOR
馬達固定座墊片
HMC3-8B
SOCKET SCREW,M3x8
內六角螺絲,M3x8
HMC3-10B
SOCKET SCREW,M3x10
內六角螺絲,M3x10
The motor pinion comes with
the kit is 15T, which is
applicable both to 10S and
12S power. Note the actual
configuration may vary due to
the efficiency of motors.
套件內附15T馬達齒，可適用於
10S及12S動力設定；請注意實際搭配可能因馬達效率值
而有所不同。
Applicable to a 6 mm diameter as standard, and 25
mm long shaft & above is recommended; The
Motor Mount for both M4x30 mm and M3x25/ 30
mm bolt position
標準使用6 mm圓徑及建議長度25 mm以上軸心之馬達
。馬達螺絲鎖固位置可分別適用於M4x30 mm及M3x25/
30 mm規格。
16.5mm
Apply threadlocker
使用螺絲防鬆膠 Assemble in right order
依標示順序組裝
HME4-3B
SET SCREW M4×3
無頭內六角螺絲 M4×3
Power動力
Gear Raito齒輪比
10S
12S
Gear Raito齒輪比
(135T/15T)
9
9
Applicable motor
適用馬達
600~680KV
520~580KV
Add the Motor Mount Adaptor
when mounting if the shaft of the
motor features a stage.
當馬達主軸具有錐度時，請加裝馬達
固定座墊片。
(2)
(2)
BK0087
WASHER,d3xD8xW1.4
墊片,d3xD8xW1.4
