• AQ-DM-5UBT Digital Media Locker™
• 2-Way RF Waterproof Remote Control (AQ-RFDM-5UBT)
• Jack Cable (3.5mm Male to 3.5mm Male)
• Wiring Harness (AQ-UNH-2)
• Six (6) Stainless Steel Mounting Screws
• One (1) CR-2430 Battery
• Mounting Template
• Owner’s Manual
1.1 Contents
1. 12-pin Watertight Harness
The 12-pin harness supplies power and ground connections to the Digital Media Locker and
four (4) speaker channel output connections from the Digital Media Locker.
Do not cut or modify the 12-pin harness on the Locker side or warranty will be void.
2. FM Radio Antenna Jack
Connect antenna (AQ-ANT-1 sold separately) to female antenna receptacle. For best FM
performance make sure the antenna is extended to the highest achievable position.
3. Auxiliary Outputs
Allows external amplifiers to be connected to power additional speakers.
4. Auxiliary Inputs
Allows input of external audio signal from RCA connectors.
5. 12V DC External Trigger
Allows for an external light or relay to be triggered (350mA max load).
6. Backlighting 12V DC Input
Connects to the 12VDC External Trigger to provide power for the Digital Media Locker’s inter-
nal LED illumination. By default this wire is connected to the 12V DC External Trigger wire.

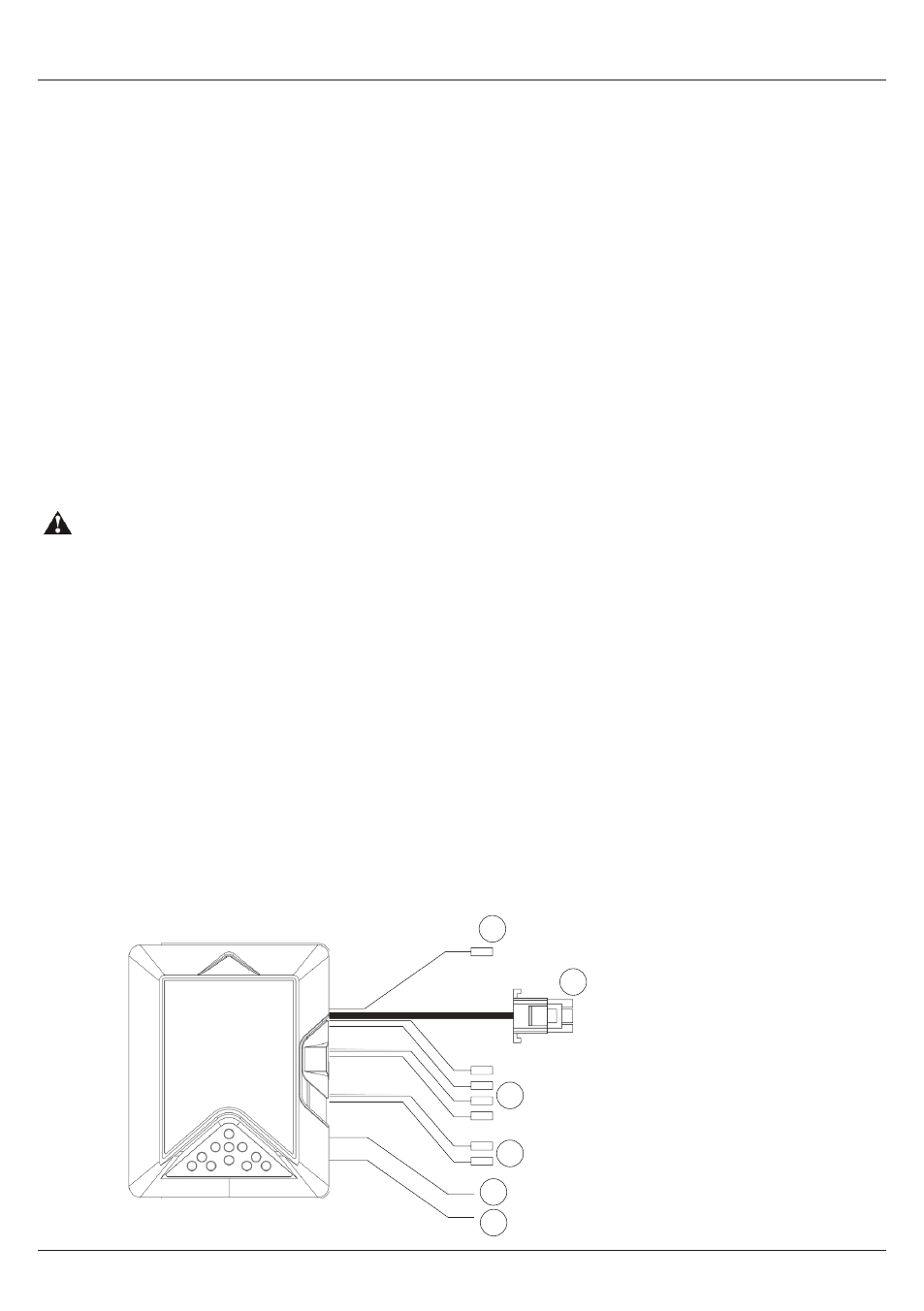

1.2 Connections
1
2 FM Radio Antenna Jack
12-pin Watertight Harness
3 Auxiliary Outputs (RCA)
5 External 12V DC Trigger wire (brown)
4 Auxiliary Inputs (RCA)
6 Backlighting 12V wire (orange)
