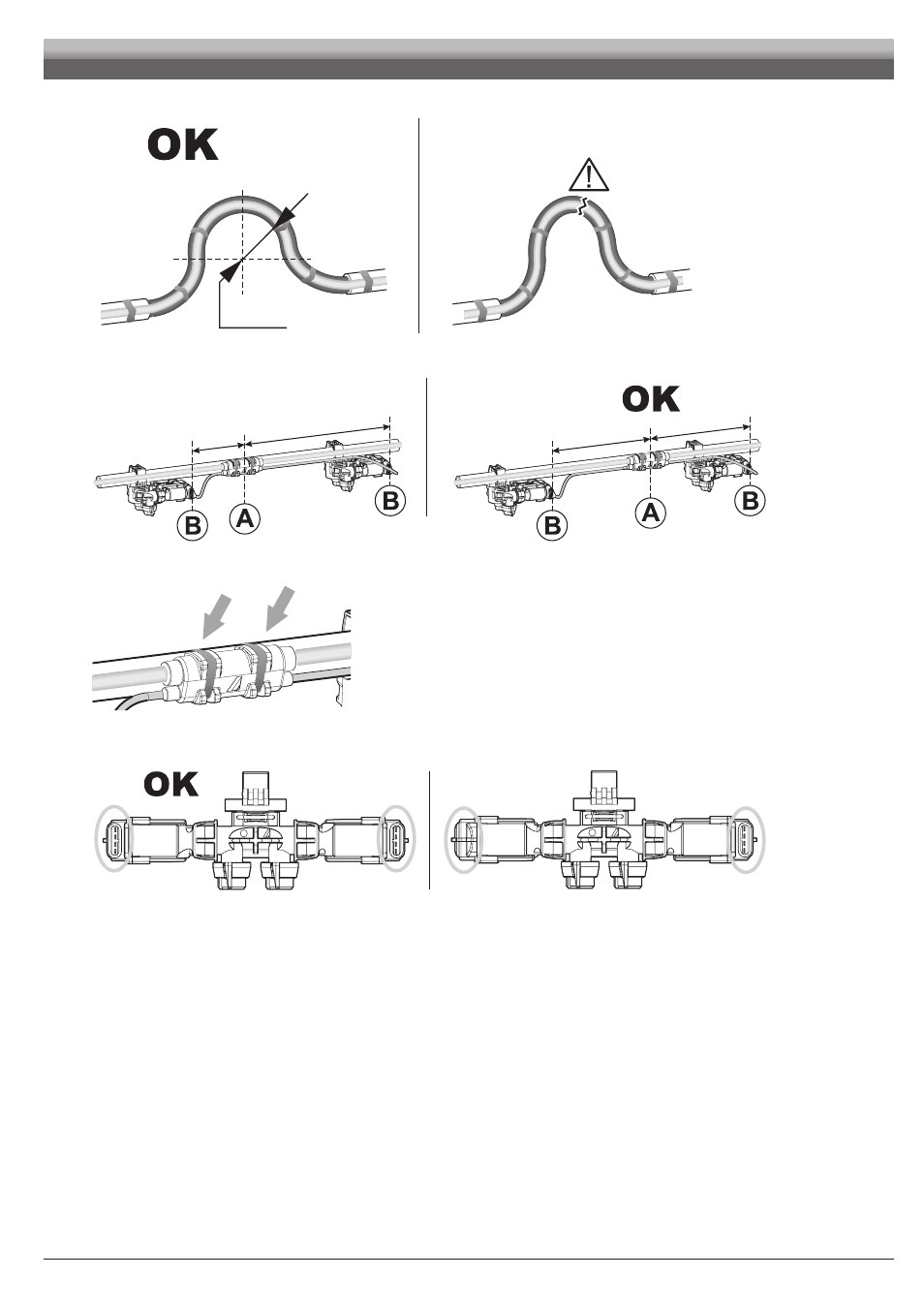

7 If space is limited and you need to bend a cable, be sure not to bend it too tight or it may get damaged.
MIN. RADIUS 12 cm
Fig. 16
8 Position the cable so that branches A are equally spaced from Seletron connectors B .
Fig. 17
9 Secure the branches to the boom threading the ties through the suitable recesses.
Fig. 18
10 When installing a twin or fourfold nozzle holder, make sure that all connectors are facing the same direction, or the computer might select the
wrong nozzle.
Fig. 19
For special needs it is possible to install two nozzles on boom ends that can work instead of the standard outer nozzles.
INSTALLATION
NO!
NO!
NO!
