8945EDA/-D — Instruction Manual 15
Installation
Front Module Installation
After installing the rear module, install the front module as follows:
1. Remove the front cover of the frame if required.
2. Locate the corresponding front slot.
3. Insert the front module so that the plastic card guides on the module
top and bottom edges go over the upper and lower raised rail guides on
the right of the top and bottom of the slot (
Figure 4 ).
4. Carefully slide the module into the rear connector.
5. Lock the front module ejector tab into the locking pin.

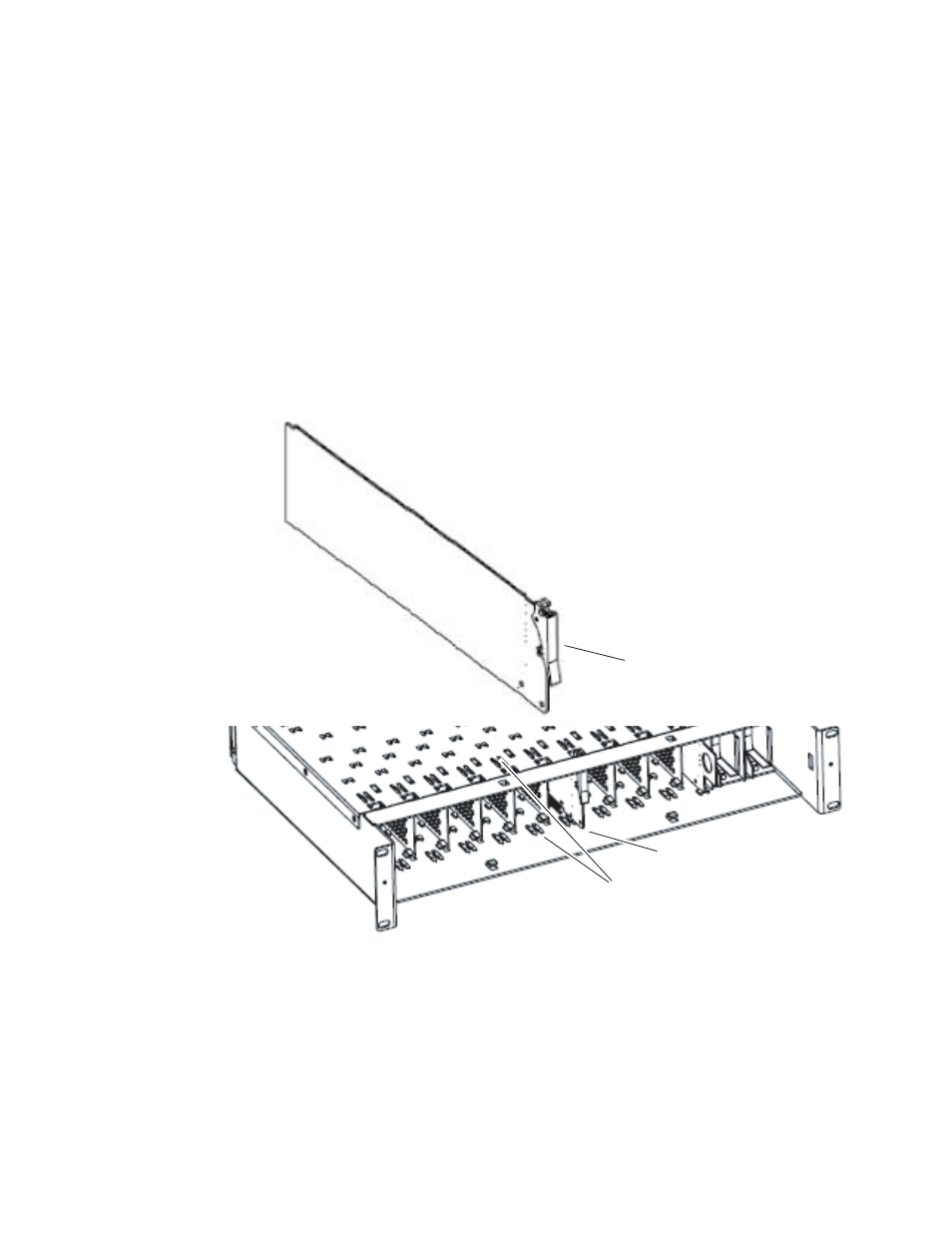

Figure 4. Front Module Installation
Slide top and bottom card carriers on module
over top and bottom guides on right of slot.
Module installed
Locking Pin
Front Module Side View
0642_10r0
