Acappella Configuration Pages

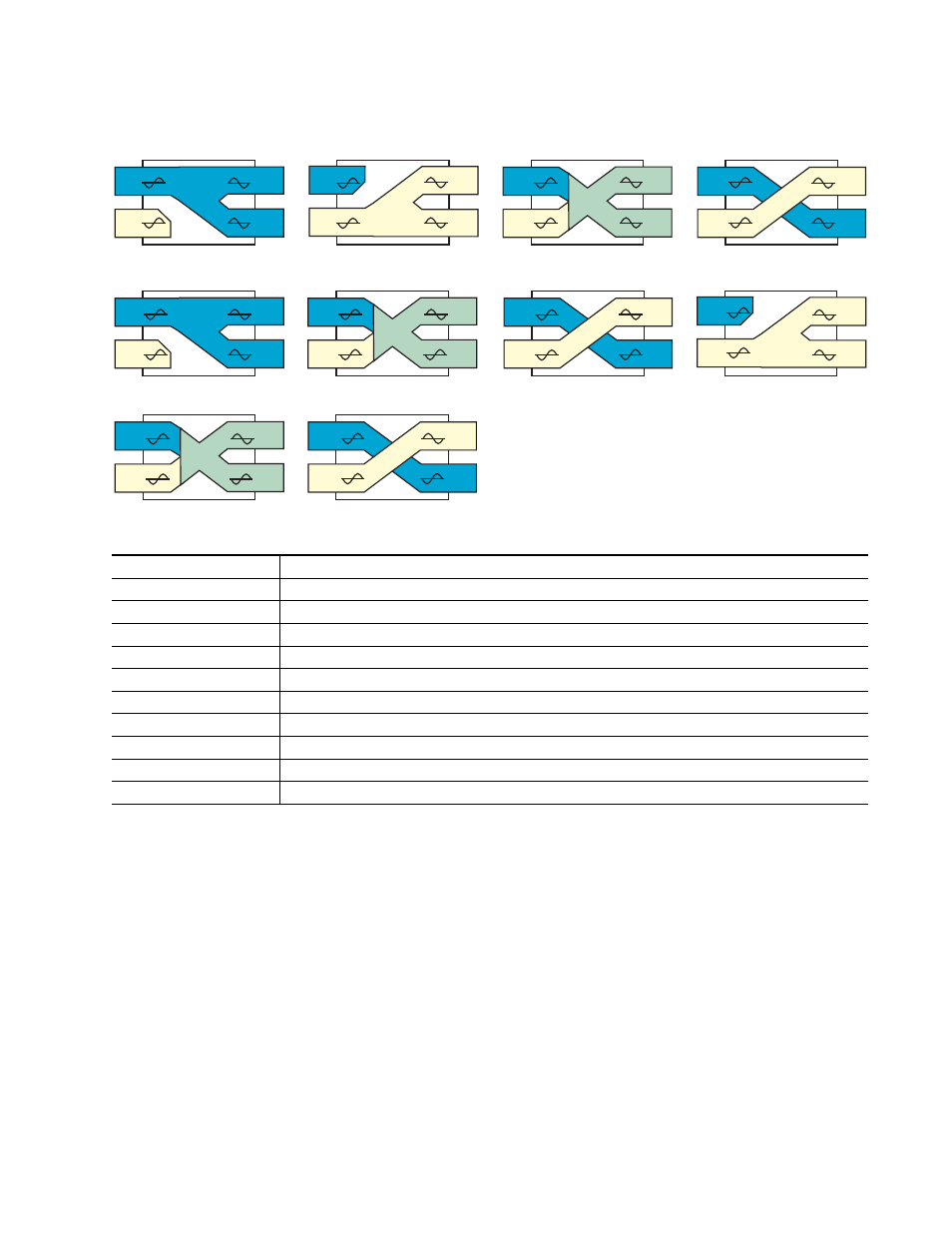

Figure 31. AES Attribute Combinations
Table 4. AES Attribute Combinations
AES Attribute Combination
Description
Invert Left & Right - Left Mono
Inverts Left (Channel 1) and Right (Channel 2) then Left (Channel 1) is sent to both Channel 1 and Channel 2.
Invert Left & Right - Right Mono
Inverts Left (Channel 1) and Right (Channel 2) then Right (Channel 2) is sent to both Channel 1 and Channel 2.
Invert Left & Right - Sum
Inverts Left (Channel 1) and Right (Channel 2) then Left (Channel 1) and Right (Channel 2) are combined.
Invert Left & Right - Swap
Inverts Left (Channel 1) and Right (Channel 2) then Left (Channel 1) and Right (Channel 2) are swapped.
Invert Left - Left Mono
Inverts Left (Channel 1) no effect on Right (Channel 2) then Left (Channel 1) is sent to both Channel 1 and Channel 2.
Invert Left - Sum
Inverts Left (Channel 1) no effect on Right (Channel 2) then Left (Channel 1) and Right (Channel 2) are combined.
Invert Left - Swap
Inverts Left (Channel 1) no effect on Right (Channel 2) then Left (Channel 1) and Right (Channel 2) are swapped.
Invert Right - Right Mono
Inverts Right (Channel 2) no effect on Left (Channel 1) then Right (Channel 2) is sent to both Channel 1 and Channel 2.
Invert Right - Sum
Inverts Right (Channel 2) no effect on Left (Channel 1) then Left (Channel 1) and Right (Channel 2) are combined.
Invert Right - Swap
Inverts Right (Channel 2) no effect on Left (Channel 1) then Left (Channel 1) and Right (Channel 2) are swapped.
Invert Right - Right Mono
CH1
CH2
Right
Invert Left -Left Mono
Left
CH1
CH2
Invert Left - Sum
CH1
CH2
Left &
Right
Invert Right - Sum
CH1
CH2
Left &
Right
CH2
CH1
Invert Left - Swap
CH2
CH1
Invert Right - Swap
CH1
CH2
Right
Left
CH1
CH2
Right
Left
CH1
CH2
Right
Left
CH1
CH2
Right
Left
CH1
CH2
Right
Left
CH2
CH1
Invert Left & Right - Swap
CH1
CH2
Right
Left
Invert Left & Right - Sum
CH1
CH2
Left &
Right
CH1
CH2
Right
Left
Invert Left & Right - Right Mono
CH1
CH2
Right
CH1
CH2
Right
Left
CH1
CH2
Invert Left & Right - Left Mono
Right
Left
CH1
CH2
Left
CH1
CH2
Right
Left
