Connections to the CopperHead 3400 Camera Unit

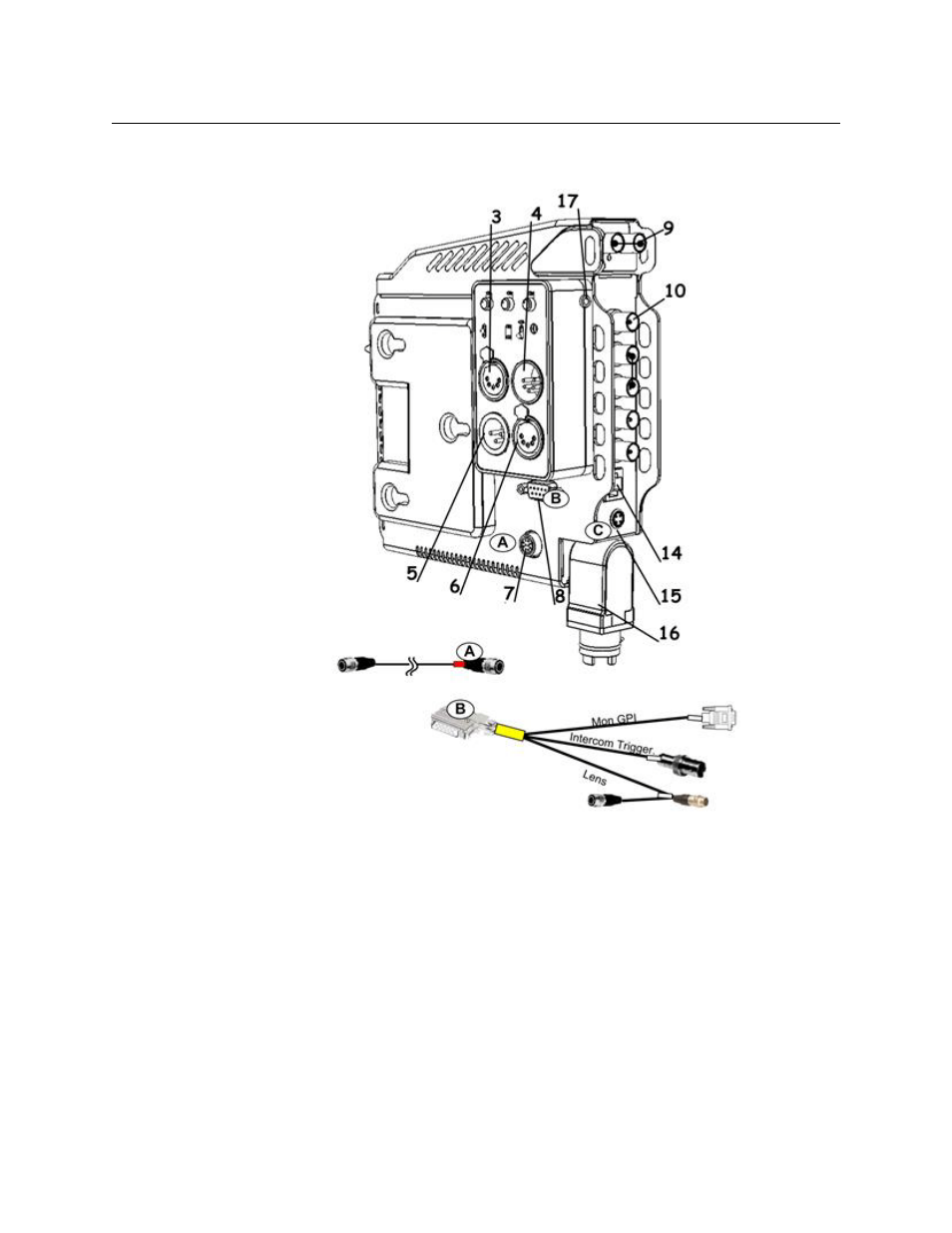

Fig. 5-7: CopperHead 3400 Camera Unit Back Side Connections
This information is presented here to provide a single list of all Camera Unit connections.
Key numbers refer to
Figure 5-7 and to the Overview Diagram found in Diagrams on
page 106.
