58
Connecting the Transceiver System
Connectors into and out of the CopperHead 3400 Camera Unit Front Side
Connectors into and out of the CopperHead 3400 Camera Unit Front Side

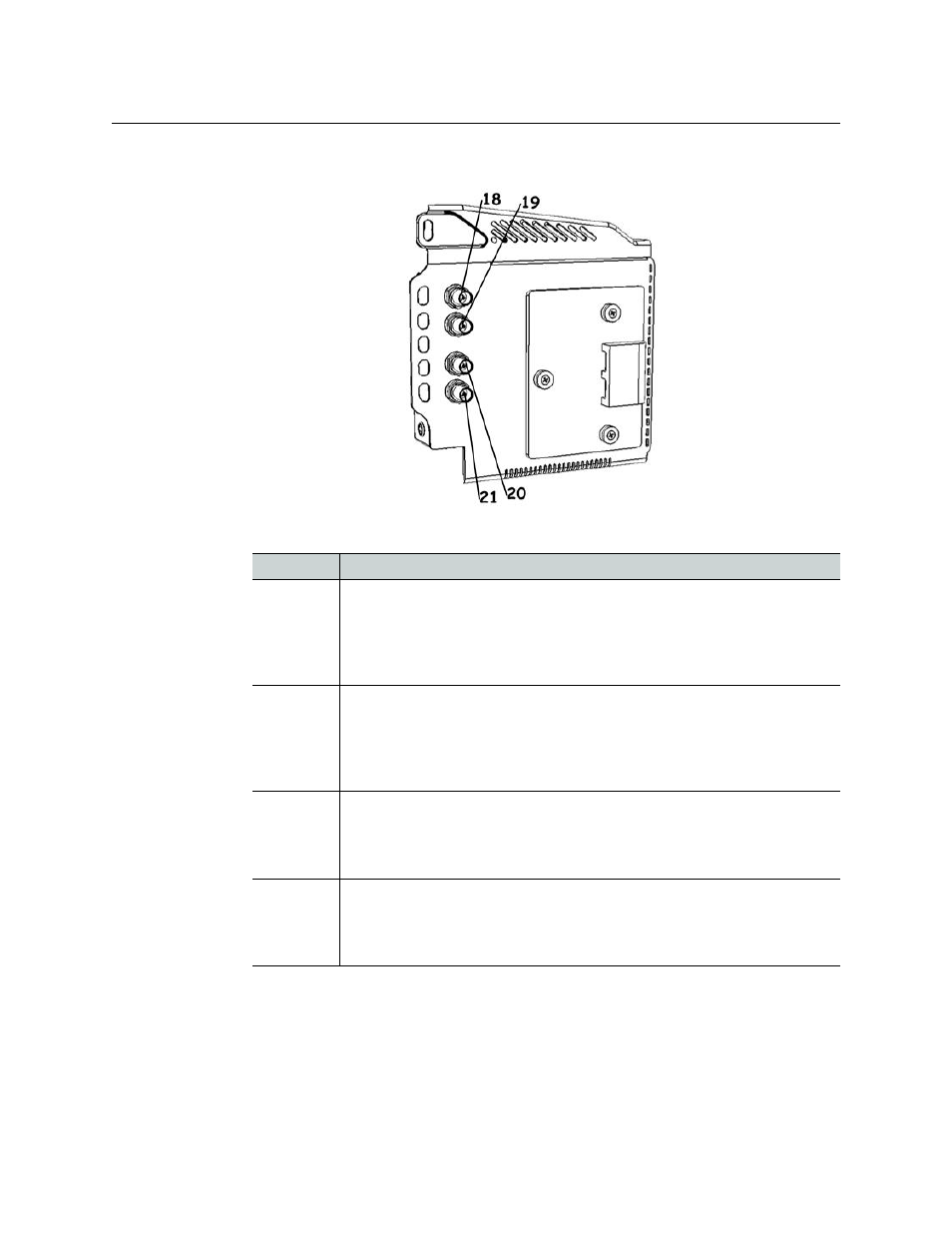

Fig. 5-8: CopperHead 3400 Camera Unit Front Side Connections
Diagram # Description
18 Time Code In
BNC Connector – Carries Time Code signal from the Camera to the Camera
Unit. This is return time code to the Base Station. This requires a short BNC
jumper cable between the Camera Unit and the Camera. Check to confirm
the connector type for your camera time code output.
19 Time Code Out
BNC Connector – Carries Time Code signal from the Camera Unit to the
Camera. This is master time code from the Base Station. This requires a short
BNC jumper cable between the Camera Unit and the Camera. Check to
confirm the connector type for your camera time code output.
20 VBS Out 2 (Genlock)
BNC Connector – Carries Genlock/Sync from the Camera Unit to the Camera.
This requires a short BNC jumper cable between the Camera Unit and the
Camera.
21 VBS Out 3 (Prompter)
BNC Connector – Carries a Prompter Feed or additional Base Station return
Video from the Camera Unit to the Camera. This requires a BNC cable
between the Camera Unit and any external equipment.
