25
CopperHead Pro
User Guide
AC Power Connector Interface
This power interface is used on CopperHead Base Stations that are equipped with an
internal power supply. This type of Base Station is typically used with Camera Units
powered with a PowerWafer via SMPTE Hybrid cable

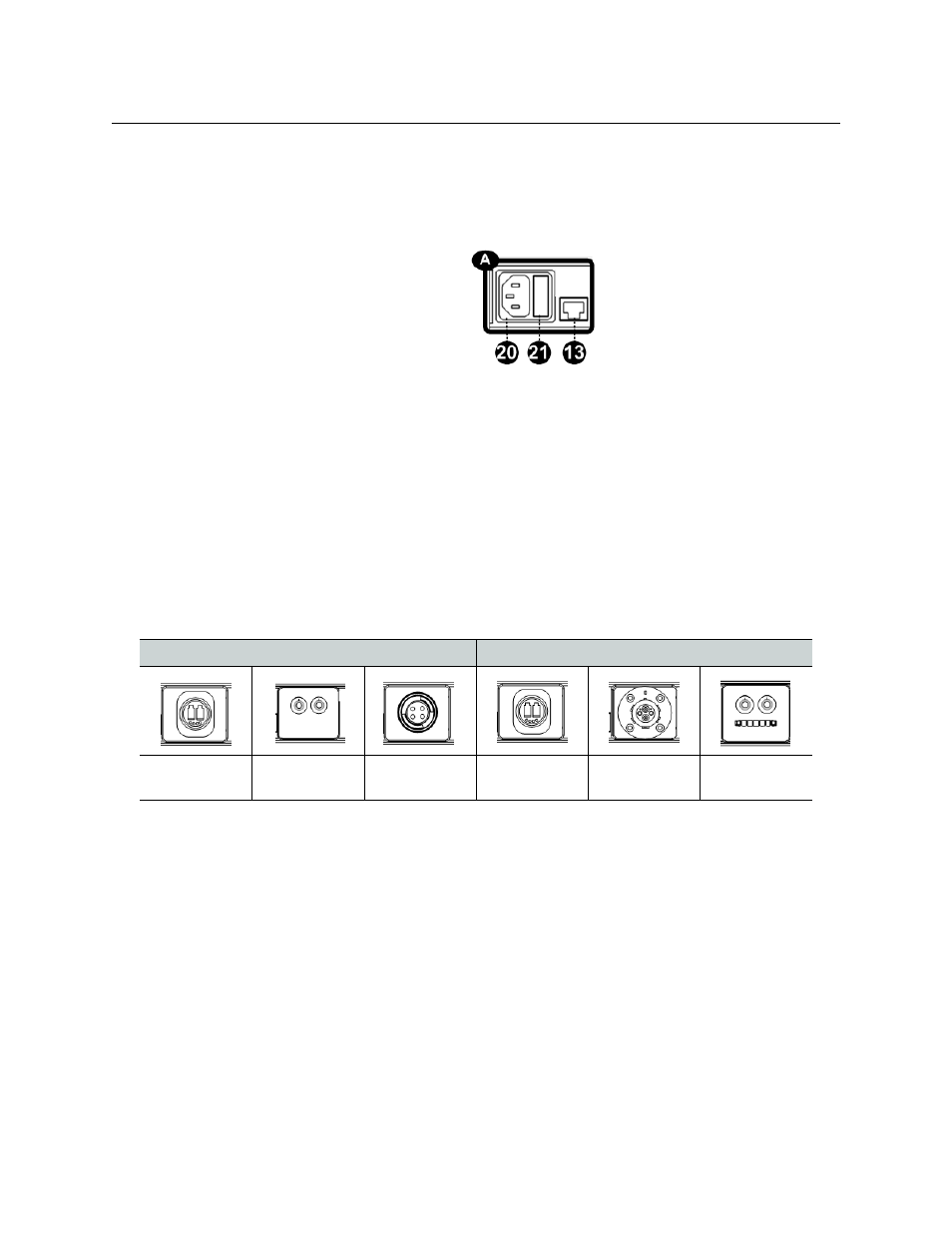

Fig. 3-15: AC Mains Connector
• 20: AC Power Receptacle 100-240V 50/60 Hz
• 21: 3.15 amp dual fuse assembly (see
on page 65 for fuse
specification)
• 13: For Future Use (RJ45)
Rear Panel Section B - Optical Connector
The fiber optic connector is used to connect Base Station directly to Camera Unit or to the
external MPS or HDX power supply configured with your system. The type of fiber
connector will vary depending on your system configuration.
Six types of fiber optic connectors are available for use with the CopperHead Base Station.
"Dry" (unpowered) fiber connectors
Fiber Connectors with Copper for Power
A: OpticalCON
(dry)
B: STs
C: MX
D: OpticalCON
(powered)
E. SMPTE 304M
F. STs & Molex
