2.5.4 CUBE / SLAB INDEX CARD

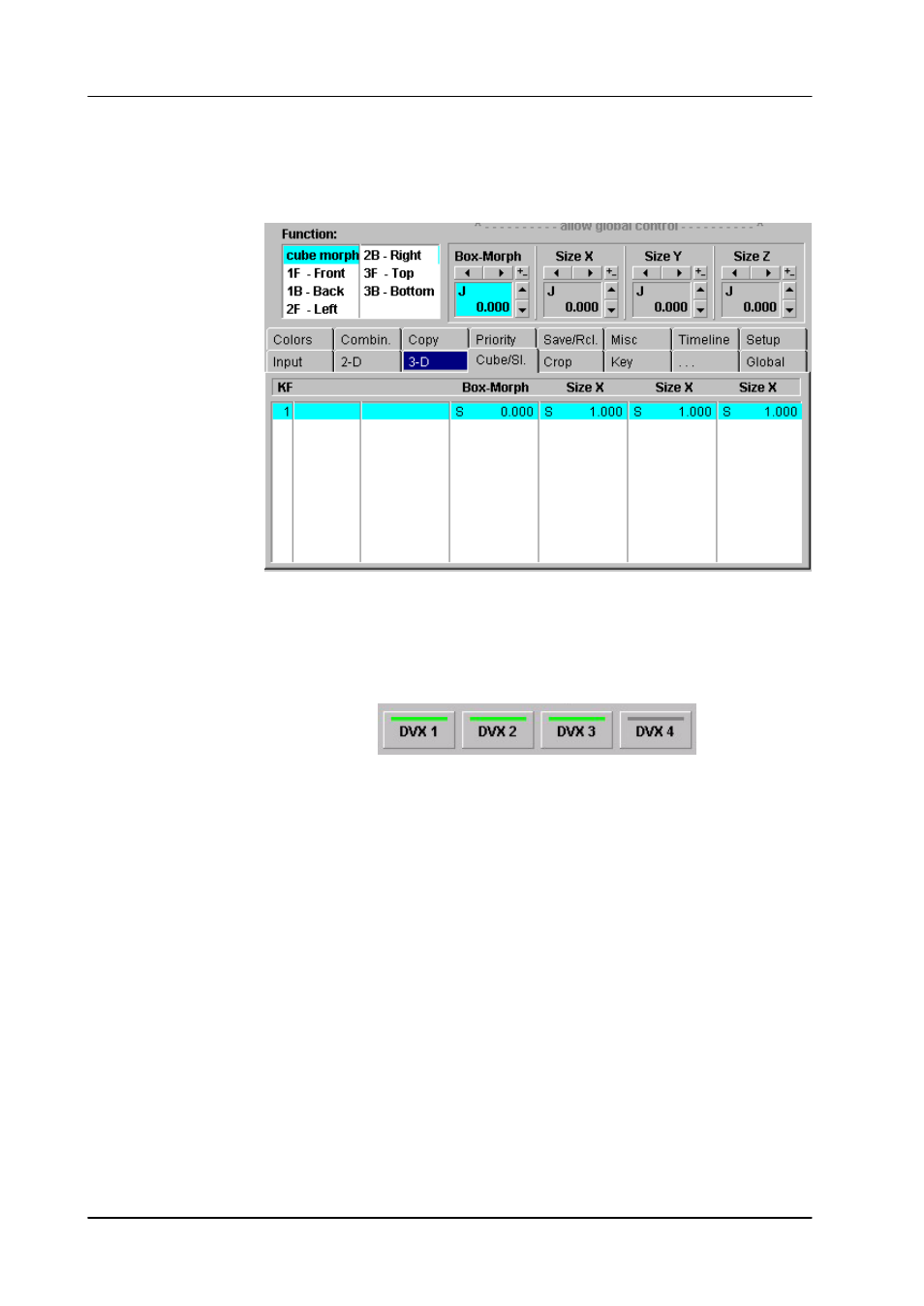

Index card with seven pages:
Page Box Morph
All commands on this index card are only effective when the global channel is en-
abled (Setup index card), and when the buttons DVX1 – DVX3 are selected:
If the box–morph value is 0.000 the 3–D parameters of the local channels are used
to position the local channels.
If the value is 1.000 the internal 3–D parameters for the cube–builder are used to
position the local channels.
That means when you run an effect with e.g. keyframe 1 box–morph = 0, and
keyframe 2 box–morph = 1.000 you will first see the 3 channels at their individual
positions, then flying to the positions to form a cube.
Size–X x–size of the cube (should be 1.0 for fullframe)
Size–Y y–size of the cube (should be 0.7 for fullframe)
Size–Z z–size of the cube
