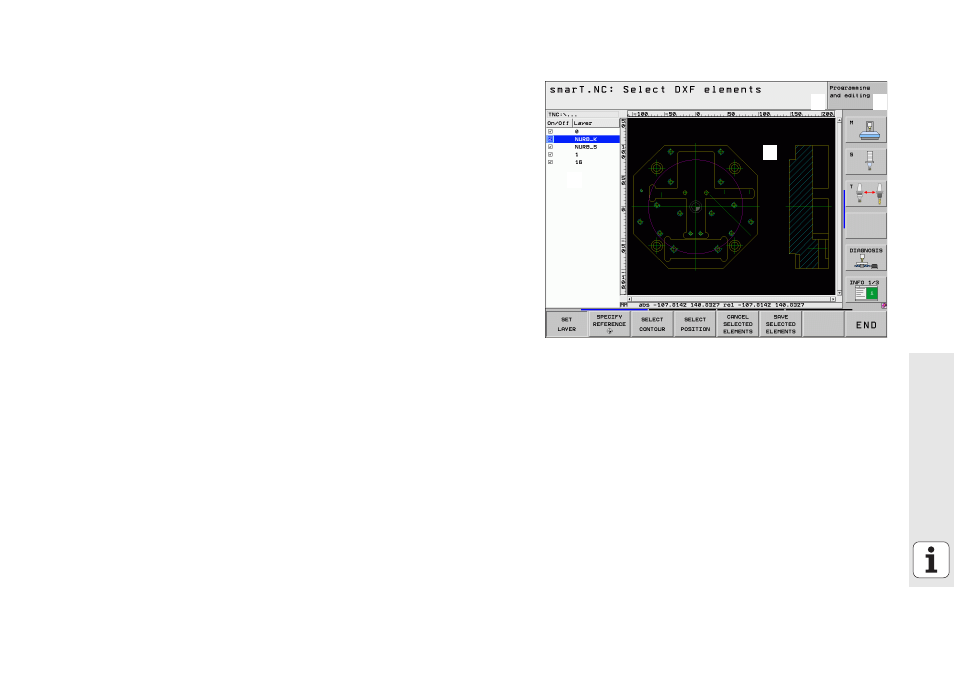

Displaying DXF files
1 1 2
1 3
1 4
1 Header: Operating mode text, error messages
2 Active background mode of operation
3 Layers or already selected contour elements or positions in the DXF
file
4 Drawing window in which smarT.NC shows the DXF file contents
