- 3 -
9. FRONT CHANNEL HIGH-PASS FREQUENCY SELECTOR: For selection of front channel high-pass
crossover frequency between 32Hz and 800Hz (or 320Hz and 8KHz when its frequency multiplier is at x10
position).
10. REAR CHANNEL HIGH-PASS FREQUENCY SELECTOR: For selection of rear channel high-pass
crossover frequency between 32Hz and 800Hz.
11. FRONT CHANNEL HIGH-PASS FREQUENCY EXTENDER: Positioning the switch at the x10 position changes,
the range of selectable crossover frequency for the front channel high-pass from 32Hz to 800Hz, 320Hz - 8KHz.
12. REAR CHANNEL HIGH-PASS FREQUENCY EXTENDER: Positioning the switch at the x10 position changes,
the range of selectable crossover frequency for the front channel high-pass from 32Hz to 800Hz,320Hz - 8KHz
.
13. SUBWOOFER FREQUENCY SELECTOR: For selection of the low-pass crossover frequency for the subwoofer
channel between 50Hz and 160Hz.
14. BASS-BOOST FREQUENCY CONTROL: For setting the frequency (from 40Hz to 120Hz)at which the
BASS-BOOST circuitry generates frequency boost to equalize the woofer enclosure.
15. BASS-BOOST LEVEL CONTROL: For selection of the boost level (from 0 to +12 dB).
16. PHASE INVERTER: Positioning the switch to the 180 position shifts the subwoofer output signals 180 degrees
out-of-phase relative to the front and rear output signals.
17. SUBWOOFER STEREO/MONO SWITCH: For selection of stereo or mono mode subwoofer output.
18. FRONT CHANNEL OUTPUT GAIN CONTROL: For adjusting the front channel output signal level.
19. LEFT/RIGHT FRONT CHANNEL OUTPUT TERMINALS: To be connected to the front channel amplifier
left/right inputs.
20. REAR CHANNEL OUTPUT GAIN CONTROL: For adjusting the rear channel output signal level.
21. LEFT/RIGHT REAR CHANNEL OUTPUT TERMINALS: To be connected to the rear channel amplifier
left/right inputs.
22. SUBWOOFER OUTPUT GAIN CONTROL: For adjusting the subwoofer channel output signal level.
23. LEFT/RIGHT SUBWOOFER OUTPUT TERMINALS: To be connected to the subwoofer channel amplifier
left/right inputs.
24. SUBWOOFER OUTPUT LEVEL REMOTE CONTROL TERMINAL: To be connected to the remote
control for exclusive maneuver of the subwoofer output level, and the subwoofer output level control on the
unit (22 above) is by-passed.

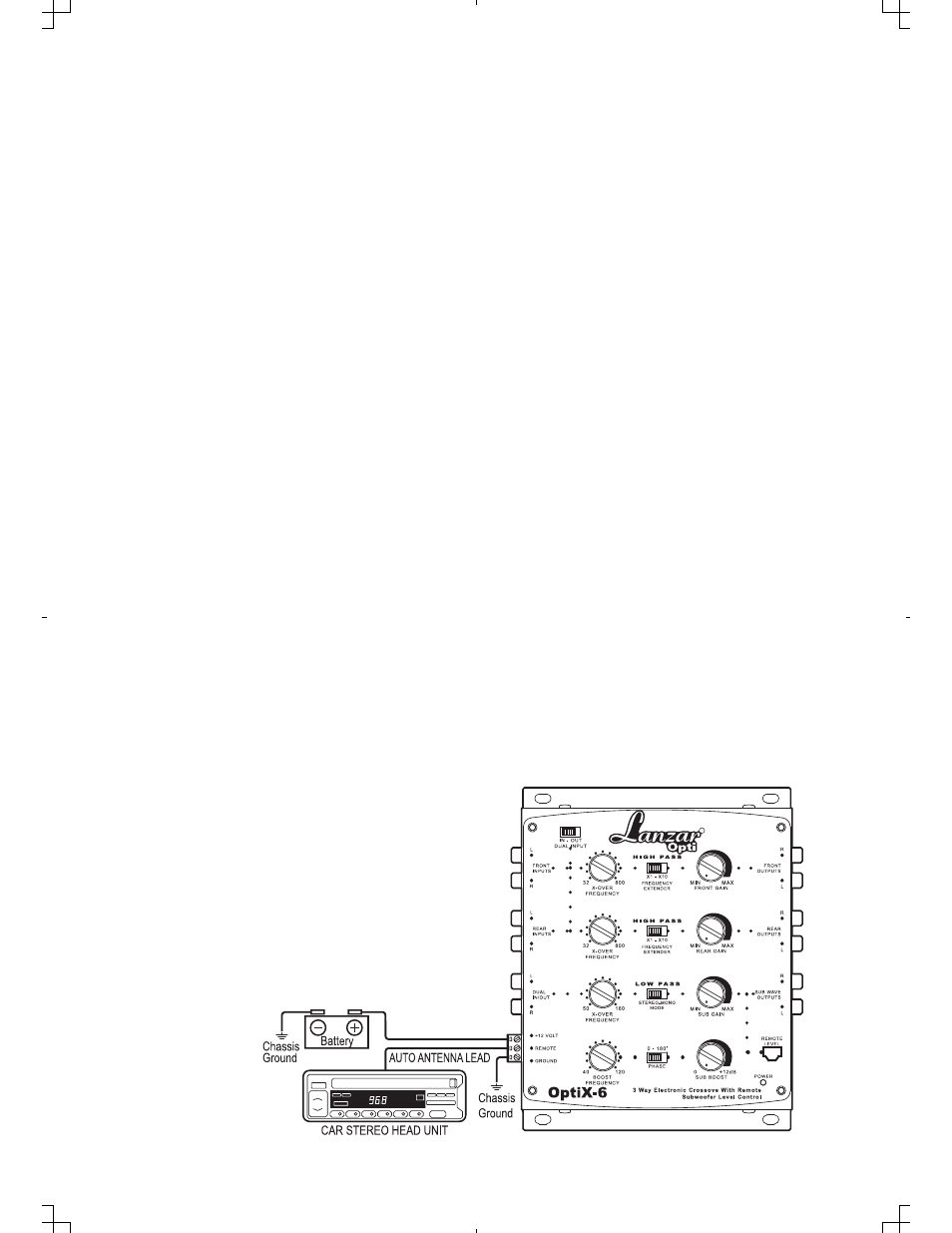

WIRING DIAGRAM : Power Connection
