EN-54
Getting Ready

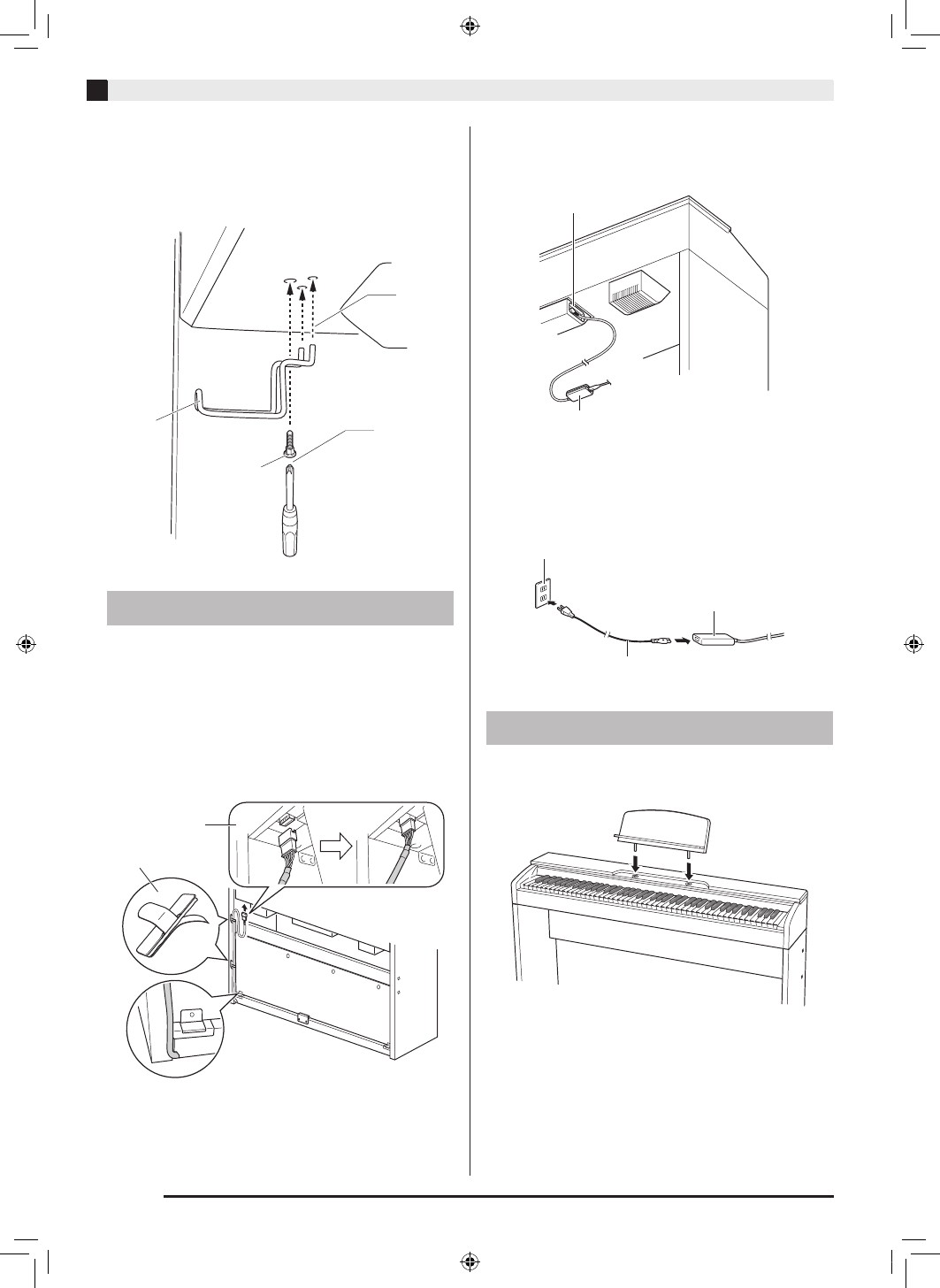

16.
Install the headphones hook O .
1.
Making sure that the pedal unit cable plug is
oriented as shown in the illustration below,
plug it into the pedal connector on the bottom
of the piano.
a.Press the plug fully into the connector as far as it will
go.
b.Use the clips G to secure the pedal cable to two
locations on side panel B.
2.
Insert the plug of the AC adaptor that comes
with the Digital Piano into its power terminal
(
DC 24V).
3.
Plug the power cord of the AC adaptor that
comes with the Digital Piano into a household
power outlet as shown in the illustration
below.
1.
Install the music stand by inserting its pegs
into the holes in the top of the piano.
(16-1) Insert the headphones hook O into the two holes
on the bottom of the piano.
(16-2) Use the screw P to secure the headphones hook
in place.
To connect the cable
O
P
16-2
16-1
G
b.
a.
To install the music stand
AC adaptor plug
Supplied AC adaptor
Household power outlet
AC adaptor
Power cord
