6

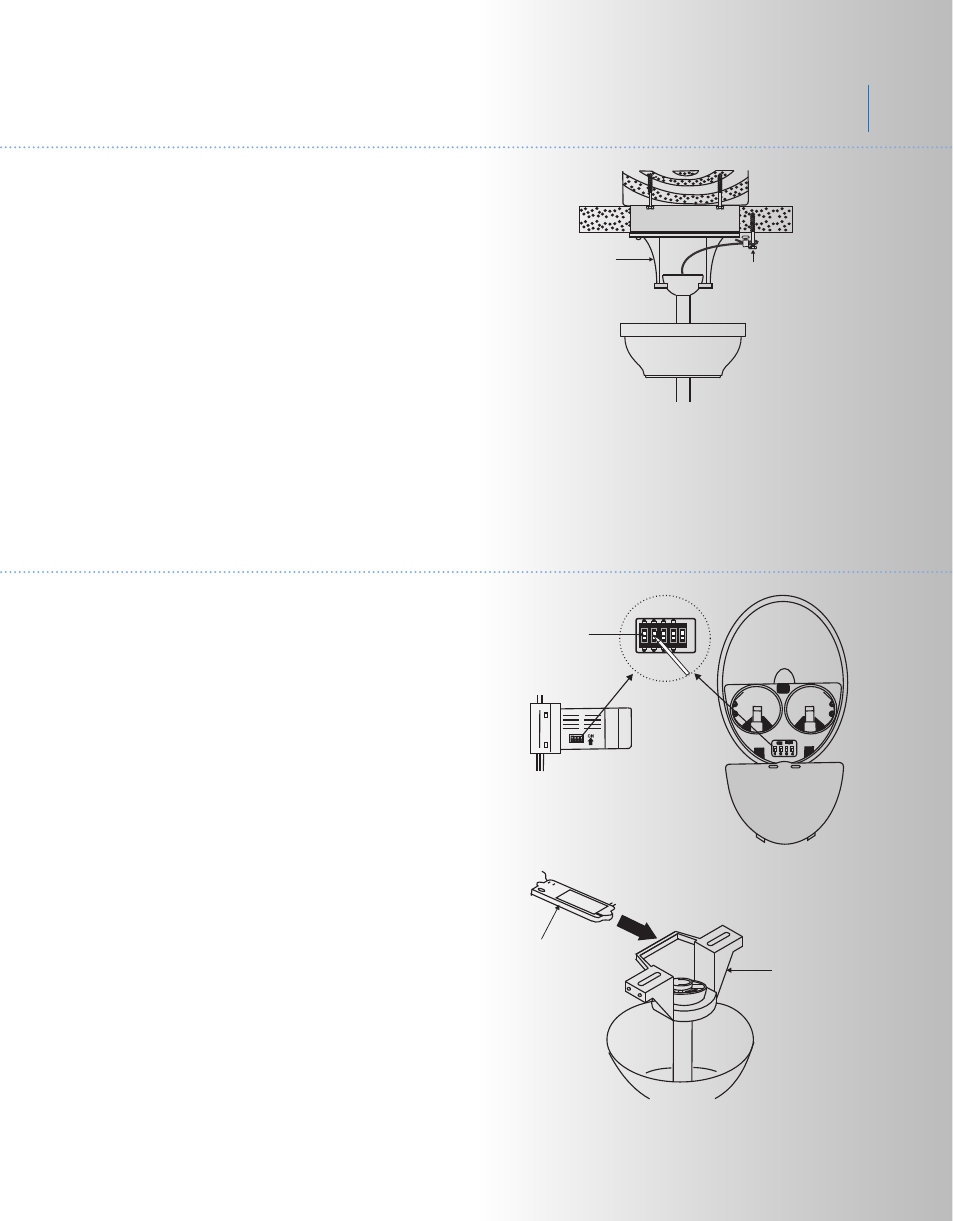

Fig. 11
Ceiling mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer
7. ELECTRICAL CONNECTIONS
Fig. 12
Fig. 13
Receiver
Ceiling Mounting
Bracket
WARNING: To avoid possible electrical shock, be
sure you have turned off the power at the main
circuit panel.
NOTE: In the Transmiter, Set Dip Switch #5 on
the X position. This disables the dimming
function because your ceiling utilizes CFL lamps
that can NOT be dimmed. (Fig.12)
NOTE: The CoolTouch™ Control System is
equipped with 16 possible frequency
combinations to prevent interference from or with
other remote control units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to the
same position. (Fig. 12)
Step 1. Insert the receiver into the ceiling
mounting bracket with the flat side of the receiver
facing the ceiling. (Fig. 13) For best performance,
make sure the Black Antenna, on the end of the
receiver, remains extended and not tangled with
any of the electrical wires.
Step 2. Motor to Receiver Electrical Connections:
(Fig. 14) Connect the black wire from the fan to
the black wire marked "TO MOTOR L" on the
receiver.
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling, please install
it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the mounting
bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of
the safety cable over the wood screw and under
the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
Fitch TM
Dip switch
ON
1 2 3 4
D
X
ON
