10
XL-FW492 Rev D
INSTALLATION INSTRUCTIONS
continued
Sliding Fifth Wheel Installation - ILS Slider
continued

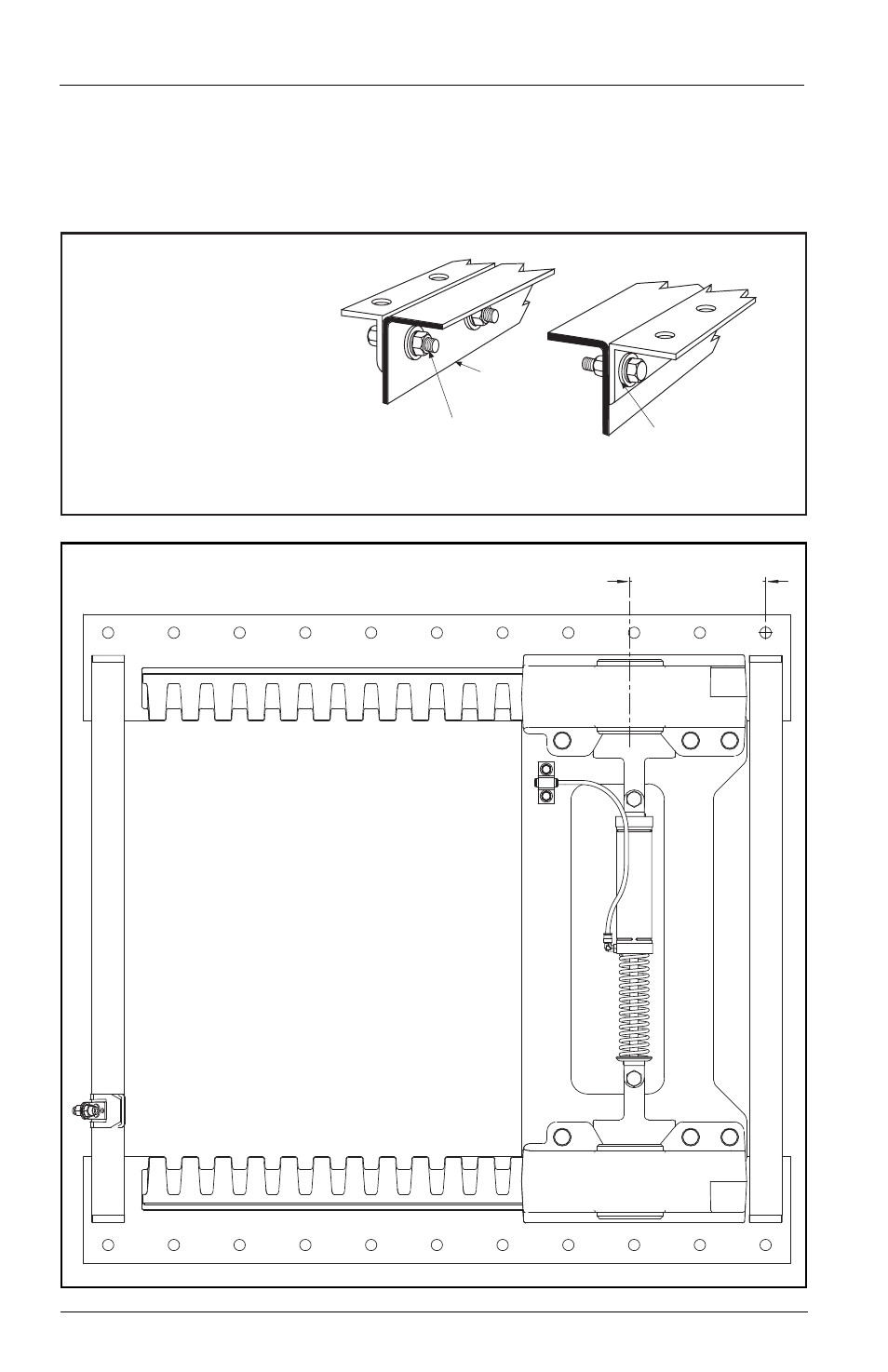

Outboard Angle Mounting
(See Figures 5A and 5B):
6B - Keatley July 31
FIGURE 5B
8.25˝
(209.55 MM)
FULL REAR
FIGURE 5A
5/8˝ diameter Grade 8 bolts minimum size,
tightening torque to bolt manufacturer charts.
Hardened steel washers or flanged locknuts.
5/8˝ diameter Grade C locknuts.
The full length of the fifth wheel
mounting angle should seat flush
on the truck frame to prevent
flexing of mounting angle and
to give uniform weight distribution
along truck frame rail.
TRUCK
FRAME RAIL
HARDENED
STEEL WASHERS
