18 XL-FW492 Rev D

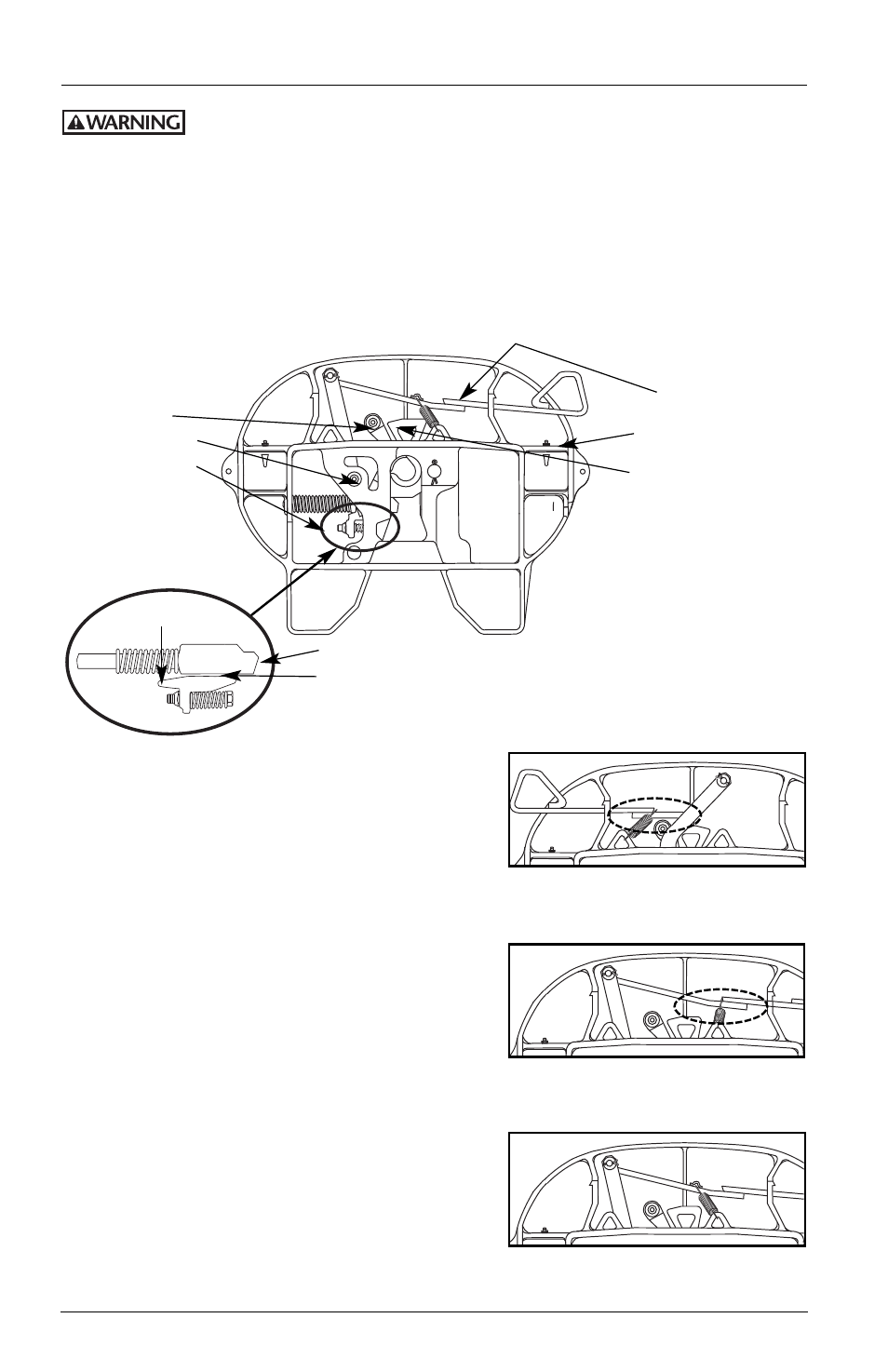

MAINTENANCE PROCEDURES
As-Needed and Periodic Lubrication
Figure 1a
Right Hand Release with Sliding Spring
(Grease Required)
Figure 1b
Left Hand Release with Sliding Spring
(Grease Required)
Figure 1c
Left Hand Release with Fixed Spring
(No Grease Required)
PLUNGER
Lubricate
between parts
CLEAN/
LUBRICATE
Cam bolt
Release arm bolt
Plunger-to-wedge
contact areas
Clean with spray
WD-40 or CRC
Lubricate with SAE
10W or 20W motor oil
GREASE
Release handle
(See Step 3)
Bracket pocket fittings
(right and left sides)
Swing lock-to-cam arm
contact area
Recommended Greases
A “low temp” grade
recommended for -30°F or
lower such as:
Cato Oil & Grease #5213
Craftsman Chemical Co. #LTF 2
Mystic LP-200
or equivalent
WEDGE
Figure 1
2. For fifth wheels with sliding brackets:
Release and slide fore and aft to assure entire
mechanism functions properly. Apply an aerosol
spray lubricant or soap to the slide path. Apply
Never-Seez ™ to the plunger and its moving parts.
Reposition and lock sliding mechanism.
3. Inspect the release handle. If your fifth wheel is
a RIGHT HAND (curb side) release, apply grease
along the release handle where it contacts the
handle spring (see Figure 1a). If you have a LEFT
HAND (driver side) release handle with a sliding
spring, as shown in Figure 1b, apply grease
along the release handle where it contacts the
handle spring. Lubrication is NOT required for
LEFT HAND (driver side) release handles that
HAVE a fixed spring (see Figure 1c).
4. Check the operation by locking and unlocking
using a Holland TF-TLN-5001 Lock Adjustment
Tool. Verify that the fifth wheel is completely
closed, as shown in Figure 3A on page 19.
You must read and understand the following instructions before operating your
fifth wheel.
All maintenance must be performed by a qualified person using proper tools and safe procedures.
All maintenance must be performed while the tractor is uncoupled from the trailer.
Failure to follow all the maintenance procedures contained in these instructions may result in a
hazardous condition or cause a hazardous condition to develop which, if not avoided, could result in
death or serious injury.
1. IMPORTANT! Always maintain adequate lubrication in fifth wheel locking mechanism.
Relube as necessary (see Figure 1).
