MAINTENANCE PROCEDURES

Required Inspections and Adjustments

Perform the following every six months or 60,000 miles, whichever comes first. Clean all
components before inspecting or adjusting.

General Fifth Wheel Inspection

1. Inspect the fifth wheel mounting. Check the torque and replace any missing or

damaged bolts. Check for broken, worn, or damaged parts; replace as needed.

2. Thoroughly clean the fifth wheel locking mechanism every 6 months or 60,000 miles

(see the figure below). Re-check operation with TF-TLN-5001 Lock Adjustment Tool.

3. Inspect the fifth wheel for bent, worn or broken parts. Replace with Holland parts

only.

4. Make sure the bracket pin retention bolts and locknuts are in place and tight.
5. Confirm that the lube plates are in place and properly attached.
6. Clean the lube plates to remove dry, dirty residual grease.
7. Inspect the components in the figure below for wear. If any are worn, broken, or

damaged, replace them.

((

((

((

((

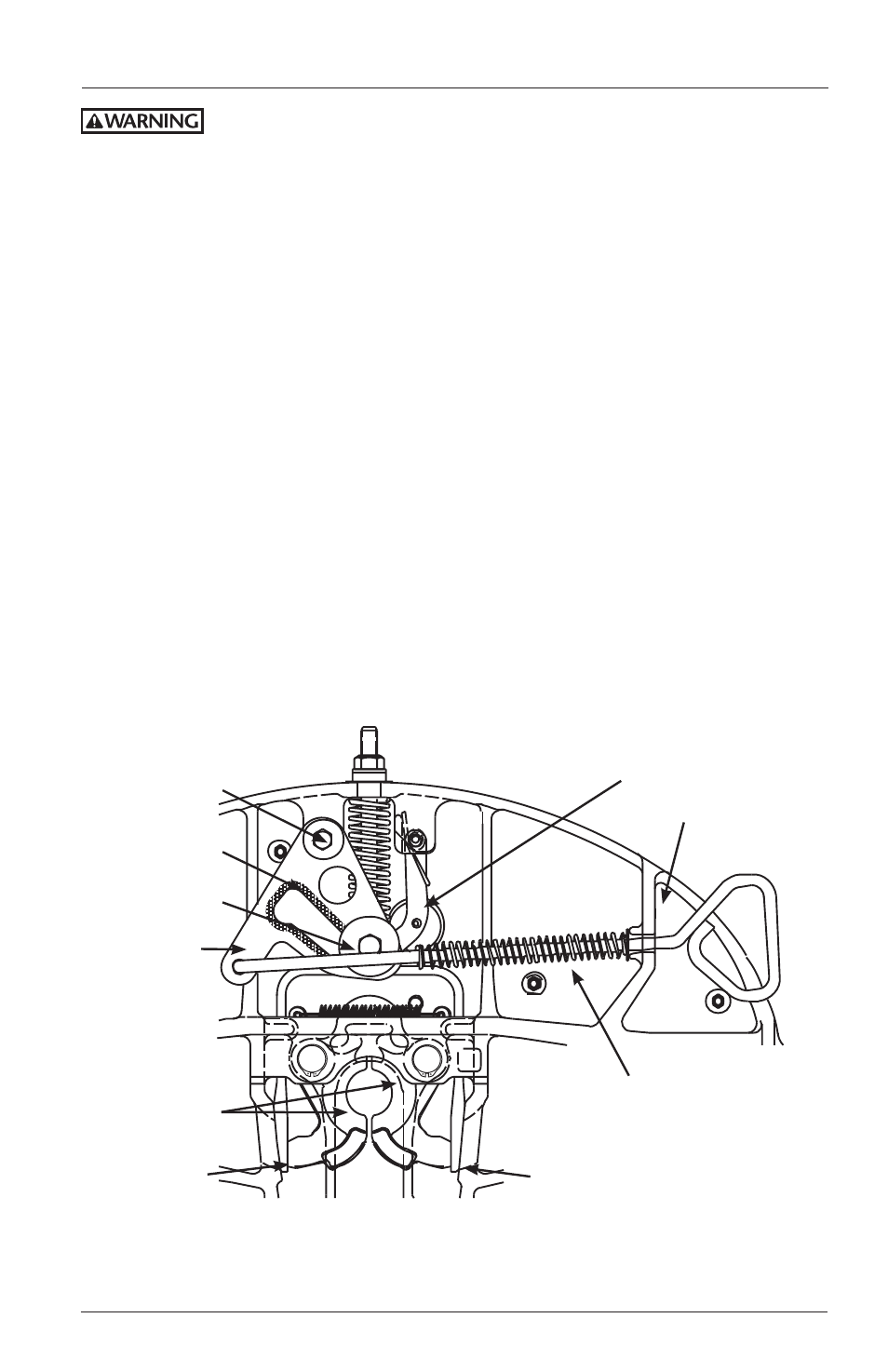

SECONDARY LOCK SUBASSEMBLY

PIVOT

CAM TRACK

CAM PLATE

LOCK JAWS

HANDLE SPRING INTERFACE

YOKE END

YOKE END

ROLLER

You must read and understand the following instructions before operating your
fifth wheel.

All maintenance must be performed by a qualified person using proper tools and safe procedures.
All maintenance must be performed while the tractor is uncoupled from the trailer.
Failure to follow all the maintenance procedures contained in these instructions may result in a
hazardous condition or cause a hazardous condition to develop which, if not avoided, could result in
death or serious injury.

LUBE TUBE
GREASE FITTING

Apply grease to lock jaws and front of throat
directly or through lube tube grease fitting.
