Features for changing priority and for copying and pasting settings are built into the four
channels of composition (keyers). You can instantly access preset settings through store
and recall operations using four memory banks.
HDMI inputs 3 and 4 and both HDMI outputs are
equipped with scalers that support SD through HD,
including data resolutions such as 1366x768 and
1920x1200.This makes it possible to input common data
resolutions sent from computers without external
converters and transmit signals from the V-1200HD that
are matched to the native resolution of the destination
display.
Input and output of up to 92 channels of audio embedded in SDI and HDMI signals is
possible. Full 16-channel support is provided for SDI audio. A 16-channel audio mixer
equipped with EQ, reverb, and delay is also built-in. Powerful patchbay functionality
lets you select 16 sources to be assigned to the audio mixer and also accomplish central
control of source feeds as a hub not just for video, but for audio as well.
Store up to 16 still images as BMP or PNG file formats in the internal memory.
The unit supports resolutions up to 1920x1200, and also supports alpha channel for
images in PNG format.
Primary input is freely assignable to any cross-point location. Quick input changes can be
accommodated easily because the source labels follow simultaneously.

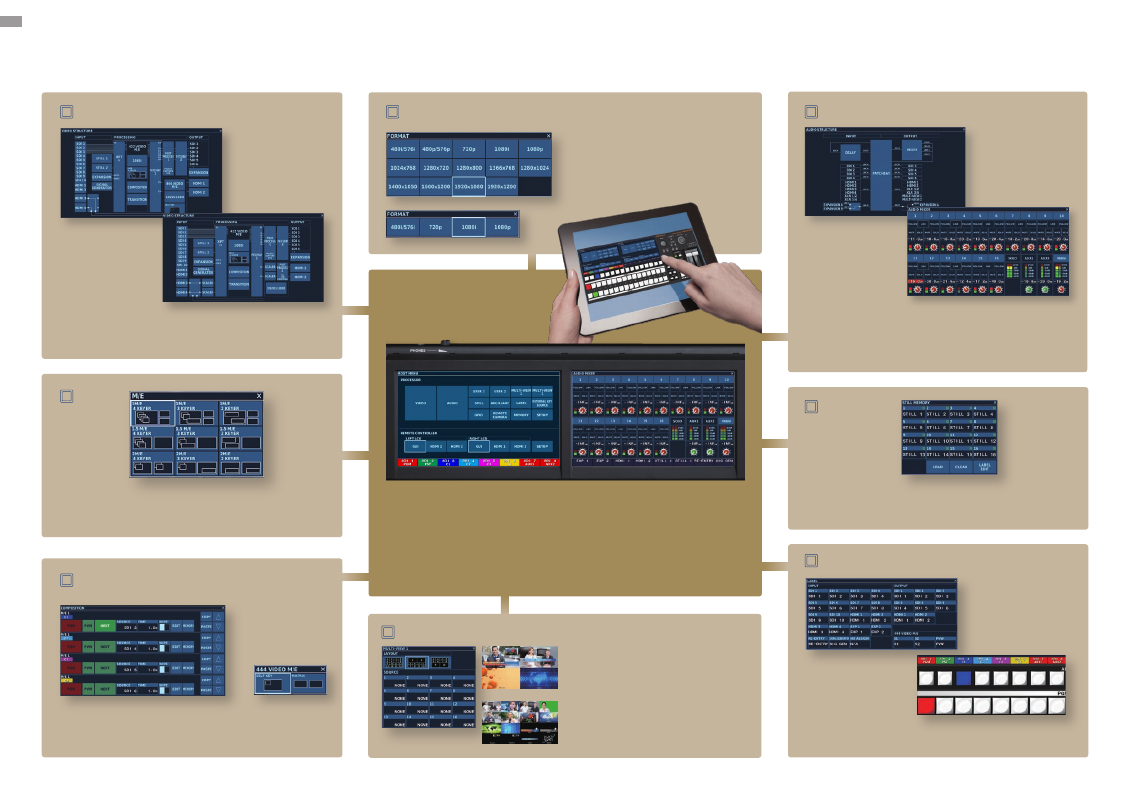

All functions and setting changes are
accessible from the root menu. This
instantly calls up the required operation
screen from among the large number of
parameters. These operations can be
performed not only via the dedicated
Multi-view is indispensable for single-point monitoring of
multiple video feeds. The V-1200HD contains two
multi-view outputs, one for the 4:2:2 buss and one for the
4:4:4 buss. Along with selecting from among three layout
patterns, you can also customize the arrangement of the
sources any way you like. ( The 10-source layout
configuration for the 4:4:4 process uses skip frame for
the frame rate.)
In addition to full functionality using the 4:2:2 processor you can also use the 4:4:4
processor to output two independent HDMI signals with outstanding color reproduction,
no color bleed, and crystal clear image on even large-size LED and projector displays.
Select multiple configuration from 1 M/E, 1.5 M/E, 2 M/E to meet the needs of your
video production. You can also select from four types of keyers: Luminance Key, Chroma
Key, *External Key, and PinP.
Video Structure Support for a Wide Range of Resolutions Audio Structure
Still Memory
Assignable Cross-point
M/Es
Keyers
Multi-view
Processing
V-1200HDR Control Surface, but also by
using the free remote control software,
V-1200HD RCS, on a connected
computer. Use the software without the
V-1200HD for off-line system
configurations and for training operators.
Multi-view out for
4:4:4 multi-format processer bus
Multi-view out for
4:2:2 2 M/E switcher bus
An innovative and flexible system designed to easily realize your full creative potential.
Root Menu
* Audio input is supported by SDI inputs 7 through 10.
* Two keyers are used when External Key is selected.
* Tablet control available from
Windows 8 compatible tablets.
