Roland V-1200HD Multi-Format Video Switcher - Manual (Page 5)

Multi-format support for a diverse range of inputs and outputs.
Two expansion slots are provided for even more compatibility.

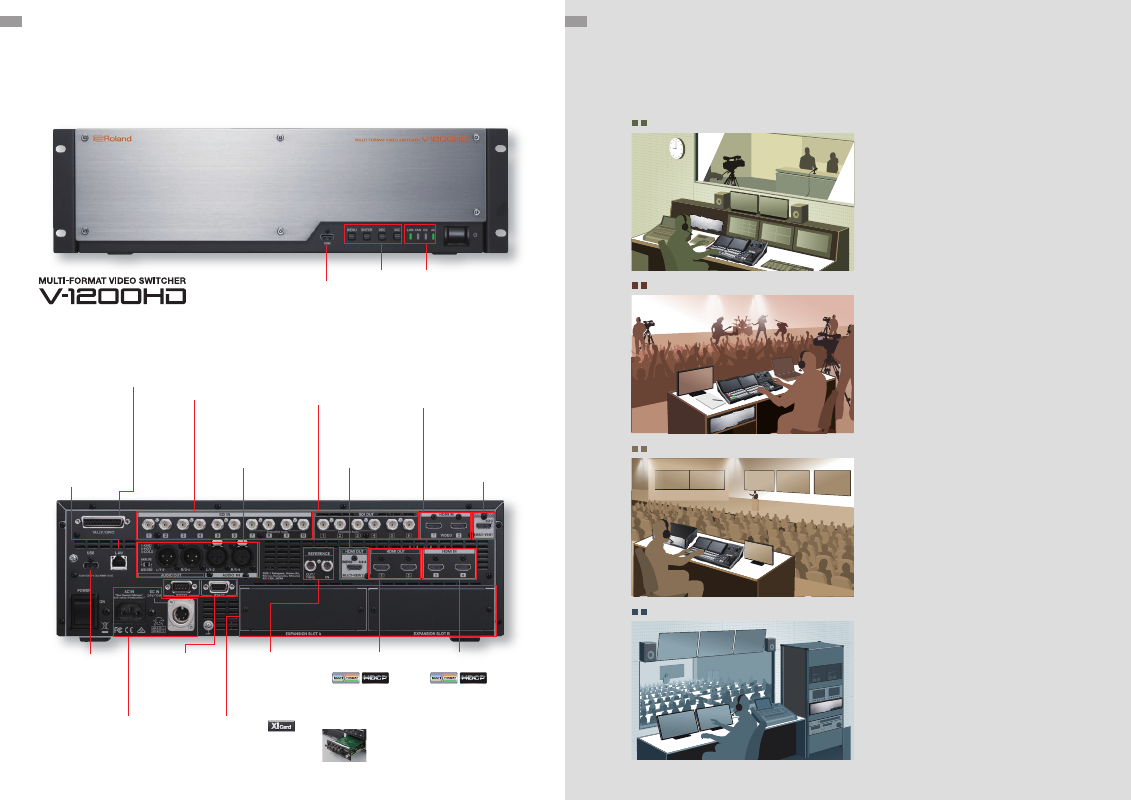

Application Hardware
The flexible workflow and functionality supports a wide variety
of live production applications.
Along with importing still images for storage in
internal memory, this is used for saving and
loading settings for the V-1200HD as well as for
updating the firmware.
USB Port
Visually monitor the status of the power
supply, console link, and the cooling fan.
LED Status Display Menu button
Video in the 4:2:2 processor can be
monitored via MULTI-VIEW 1.
An ordinary computer display can be
used for monitoring.
Multi-view Output 1
* HDMI IN 1 and 2 each support the upper
two channels of embedded audio input.
The 4:2:2 and 4:4:4 processes can both
use HDMI inputs. You can scale inputs
to the 4:2:2 processor. The 4:4:4
processor supports HDCP as well.
4:4:4 HDMI Input
* HDMI IN 3 and 4 each support the upper
two channels of embedded audio input.
* 4:2:2 processor doesn't support HDCP.
The 4:4:4 processes is output
to HDMI outputs.
HDMI Output
Video in the 4:4:4 processor can be
monitored via MULTI-VIEW 2. Use
an HDCP-compatible display for
monitoring is recommended.
Multi-view Output 2
Either two analog channels or four
AES/EBU channels are selectable for the
XLR audio input/output connectors.
(Input and output share a common
format.)
XLR Audio Inputs
Dedicated HDMI inputs for 4:2:2
processor with color space selection
and color correction.
(no support for HDCP)
4:2:2 HDMI Input
* HDMI IN 1 and 2 each support the upper
two channels of embedded audio input.
The six SDI outputs support 3G, HD,
and SD. Each output is individually
switchable to PGM, FTB, and still
image.
SDI Output
* SDI OUT 1 through 4 can each embed
16-channel audio.
The ten SDI inputs support 3G, HD,
and SD. All inputs are equipped with
color correction.
SDI Input
* SDI IN 7 through 10 each support
16 channels of embedded audio input.
Connect a video monitor capable of tally
input or a tally light system to illuminate
the tally lamps.
TALLY/GPIO Connector
An Ethernet cable connects the
console and the main-unit
processors. Using an Ethernet
hub lets you connect up to four
control panels or computers
installed with V-1200HDR RCS
(remote control software) to the
V-1200HD at the same time.
LAN Port
For future feature
expansion
USB Port
The V-1200HD accommodates both AC and
DC 24V power sources. Connecting both
establishes a redundant power supply (with
priority given to AC power).
Redundant Power
The unit's functionality can be extended through
two expansion slots. These make it possible to add
input and output for video and audio or even to
add fiber-optic support via SFP cartridges.
Expansion Slots
The RS-422 connector is
VISCA
* -compatible, and can be
used to control up to 4 cameras.
Remote Connector
Black burst, 2-value, and 3-value
input are supported. In addition
to loop-through, installing a
generator for output is also
supported.
Reference
Live-performance Production
Performance Hall Equipment
Live Events
Broadcast Studios
A wide variety of video effects enhances
broadcast studio productions.
Composition with freely selectable priority can be accomplished
using the four scaler-equipped keyers. The system also features
high-end Chroma Key, as well as the External Key essential for
title compositing. In addition to PGM and PVW output, two
AUX buses are usable for output (when in the 1M/E mode).
Multiple M/E choices allow for a diverse range of
video production applications in one switcher.
The V-1200HD is ideal as a main switcher for concert recording and
for a live feed. Through a variety of multi-view functions, even a
large number of sources can be checked at a glance. The M/E
configuration can be varied as desired to meet the needs of the
production. Control up to four remote cameras, ensures creative
productions even with limited camera operators.
Supporting a rich range of control
as a video/audio hub.
The full-featured routing functionality enables conversion and
distribution of a high number of video sources in a variety of
formats. The V-1200HD can also achieve remote operation as a
video/audio source hub from a variety of control terminals and
programs. In addition to just simple video switching, the system also
offers functions available only on production switchers, such as
distributing PinP video to various locations.
Equipped with HDMI input and output with
multi-format support. Freely mix computer and
video sources and output to a wide range
of displays and devices
Along with ten SD/HD-SDI inputs, the V-1200HD features four HDMI inputs.
Six SD/HD-SDI and two HDMI outputs are also provided.
Among these, the two HDMI inputs and outputs offer multi-format
support. Computer sources with varying resolutions and frame rates are
supported without a need for video converters. The signal is passed directly
to the 4:4:4 process, so it can be output, unchanged, at the same high
resolution. What's more, using an XI expansion card with a built-in scaler
makes it possible to mix digital and analog inputs and outputs.
* "VISCA" is a trademark of Sony Corporation.
