1-8 T22v-20 Flat Panel Monitor User’s Guide
4.

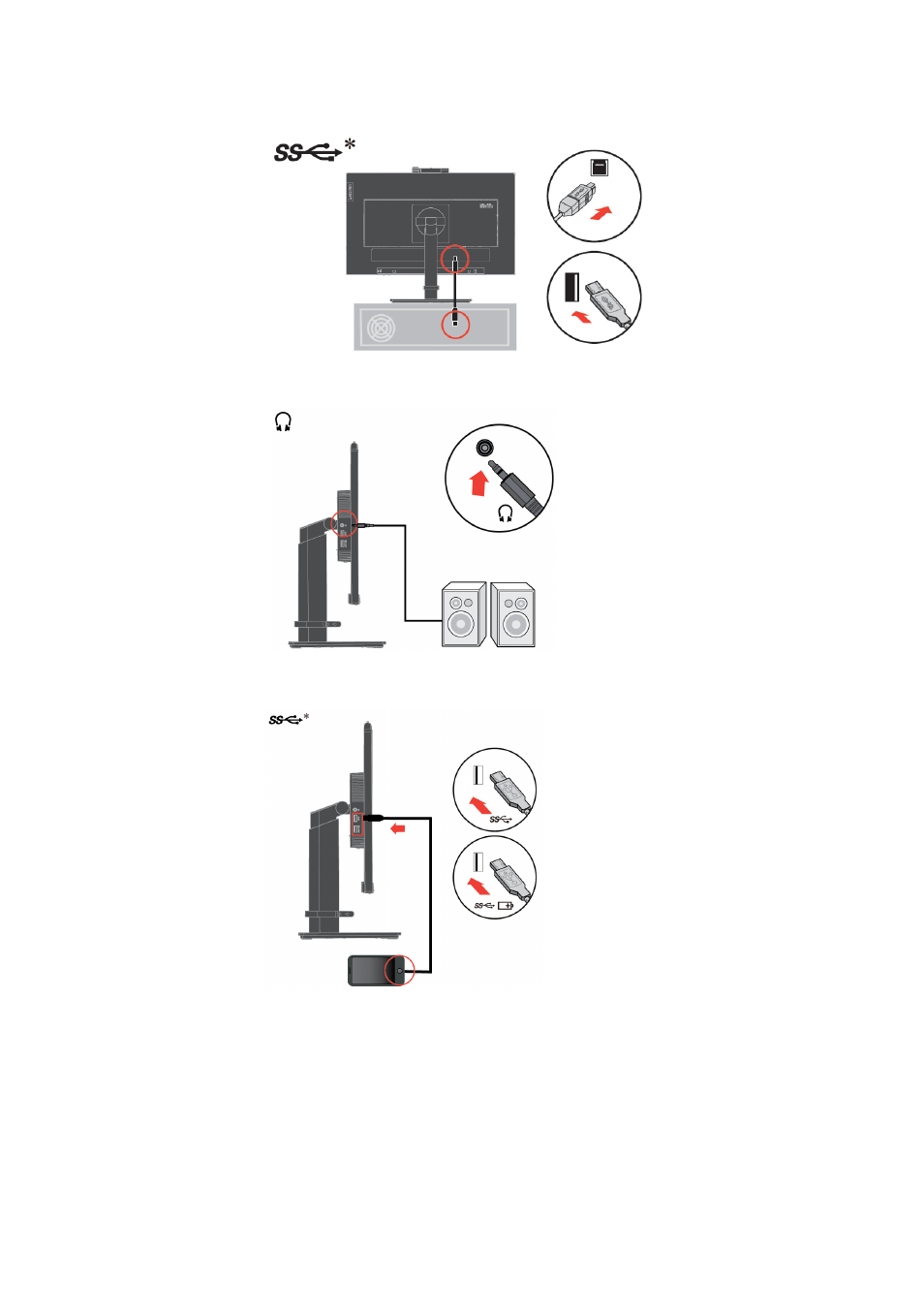

Connect one end of the USB 3.0 cable to the USB connector on the back of the computer,
and the other end to the upstream USB connector on the monitor.
5.
Connect the speaker’s audio cable and audio jack of monitor to transfer audio source from
DP, HDMI, or USB.
6.
Connect one end of the USB cable to the USB downstream terminal of the monitor, and connect
the other end of the USB cable to an appropriate USB port on your device.
Note:
The USB Battery Charging port (with battery symbol) specification 1.2 output
5Vdc/1.5A (typical), 2A (max) and the other standard USB Output 5Vdc/900mA. The USB
downstream port does not provide power while the monitor is switched off.
If there are any * tag, you can consult the comments on page 1-1
