21

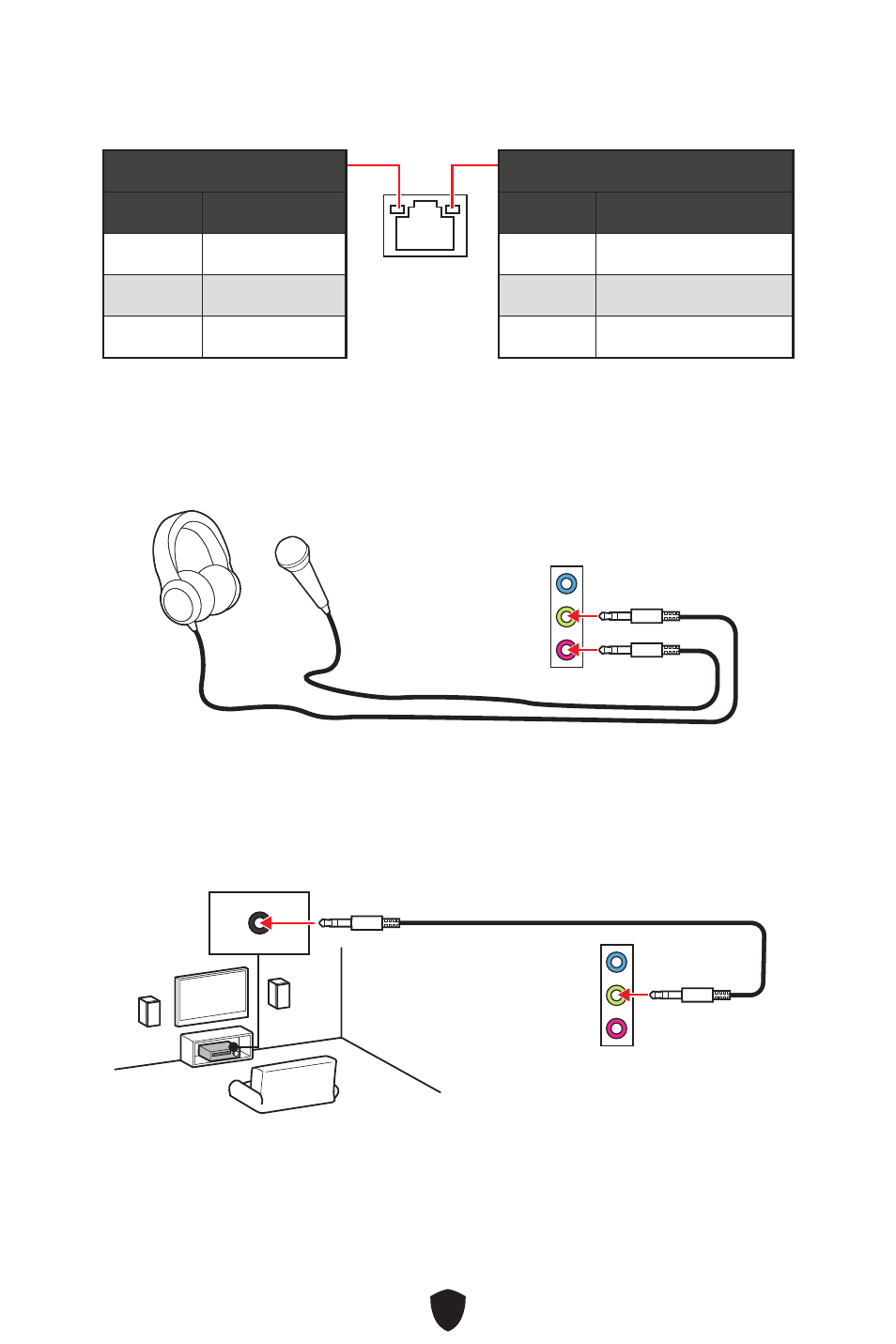

LAN Port LED Status Table
Link/ Activity LED
Status
Description
Off
No link
Yellow
Linked
Blinking
Data activity
Speed LED
Status
Speed
Off
10 Mbps
Green
100 Mbps
Orange
1 Gbps
Audio Jacks Connection
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
AUDIO INPUT
