BAT1

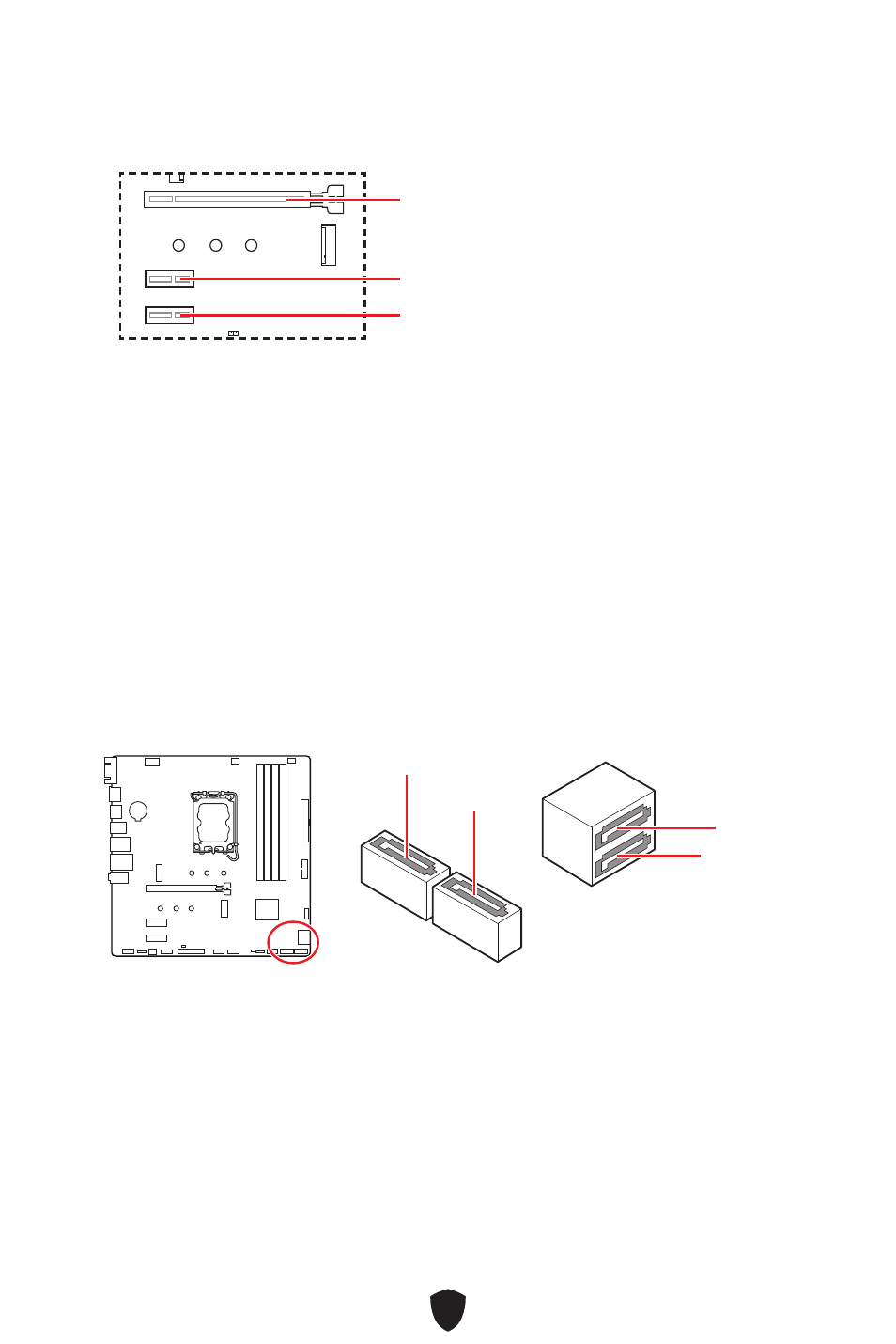

PCI_E1~3: PCIe Expansion Slots
PCI_E1 : PCIe 4.0 x16 (From CPU)
PCI_E2 : PCIe 4.0 x1 (From B760 chipset)
PCI_E3 : PCIe 4.0 x1 (From B760 chipset)
⚠
Important
∙ If you install a large and heavy graphics card, you need to use a tool such as MSI
Graphics Card Bolster to support its weight to prevent deformation of the slot.
∙ When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
SATA_5~8: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
⚠
Important
∙ Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙ SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙ SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
SATA_8
SATA_7
SATA_5
SATA_6
