FujiFilm DVD-A1XV User Manual
Page 13
13

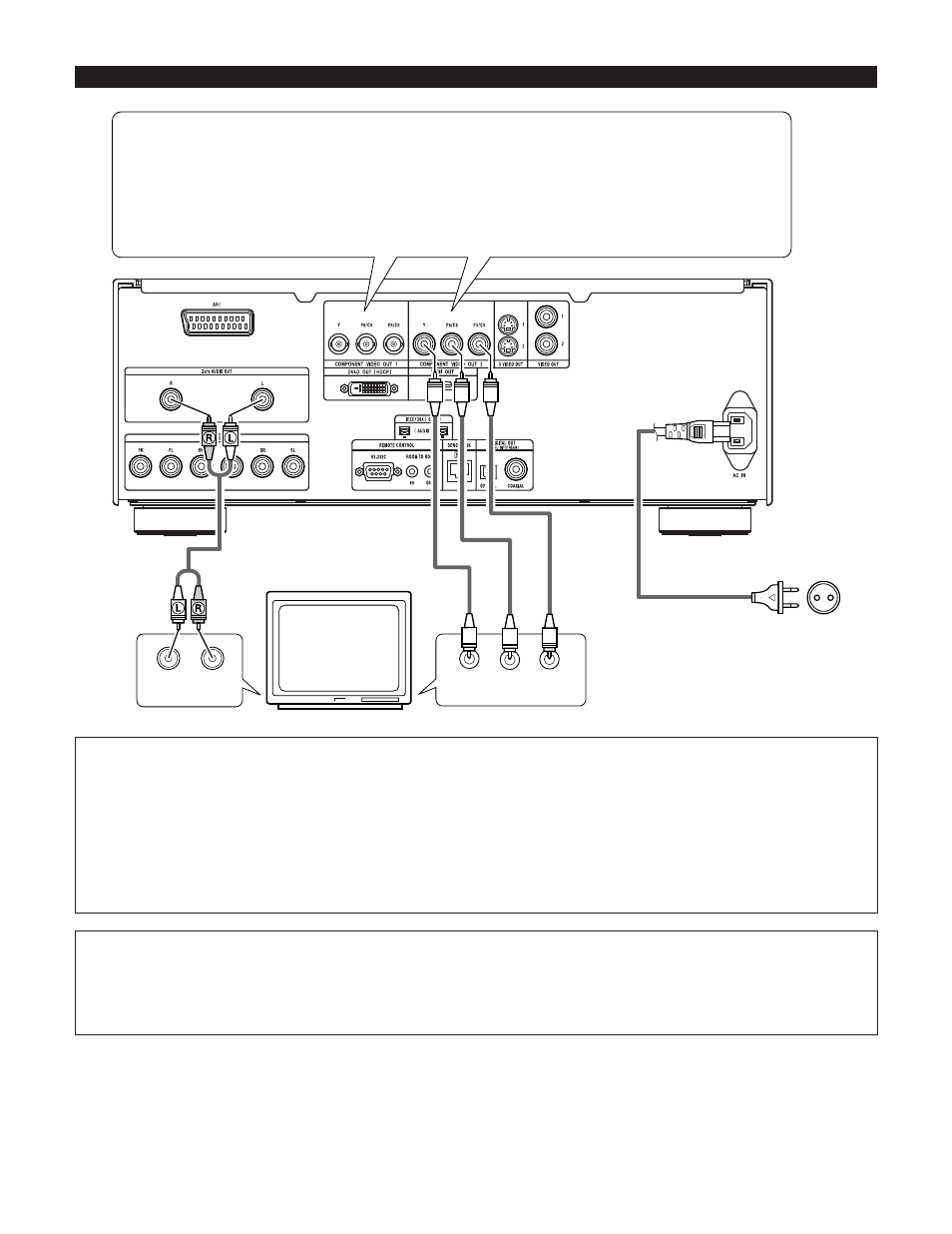

(2) Connecting to a TV or Monitor Equipped with Component Video Input Connectors
COMPONENT VIDEO IN
P
R
/C
R
P
B
/C
B
Y
AUDIO IN
L
R
To power outlet
Component video output connectors (P
R
/C
R
, P
B
/C
B
and Y)
The red (P
R
/C
R
), blue (P
B
/C
B
) and brightness (Y) signals are output independently, achieving more faithful
reproduction of the colors.
• The component video input connectors may be marked differently on some TVs or monitors (P
R
, P
B
and Y/R-
Y, B-Y and Y/C
R
, C
B
and Y, etc.). For details, refer to the TV’s operating instructions.
• Connect in this way if your TV is compatible with Progressive Scan.
NOTES:
• Use the three commercially available video cords to connect the DVD-A1XV’s component video output connectors to the TV or
monitor.
• Set the “TV TYPE” in “VIDEO SETUP” in “SETUP” to comply with your TV’s video format. When the TV is PAL formatted set to
PAL. (See pages 43, 44.)
• Set the “COMPONENT VIDEO OUT” in “VIDEO SETUP” in “SETUP” to comply with Progressive TV.
• Use the “2ch AUDIO OUT” connectors to connect a TV to the DVD-A1XV. To use with 5.1ch audio output, set “2CH (SRS OFF)”
or “2CH (SRS ON)” in “AUDIO CHANNEL” in “AUDIO SETUP” in “SETUP” at the initial settings. (See pages 46, 47.)
• Set the “TV ASPECT” in “VIDEO SETUP” in “SETUP” to comply with your TV’s aspect. (See page 43.)
TV
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE “STANDARD DEFINITION”
OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD
PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
DVD-A1XV
