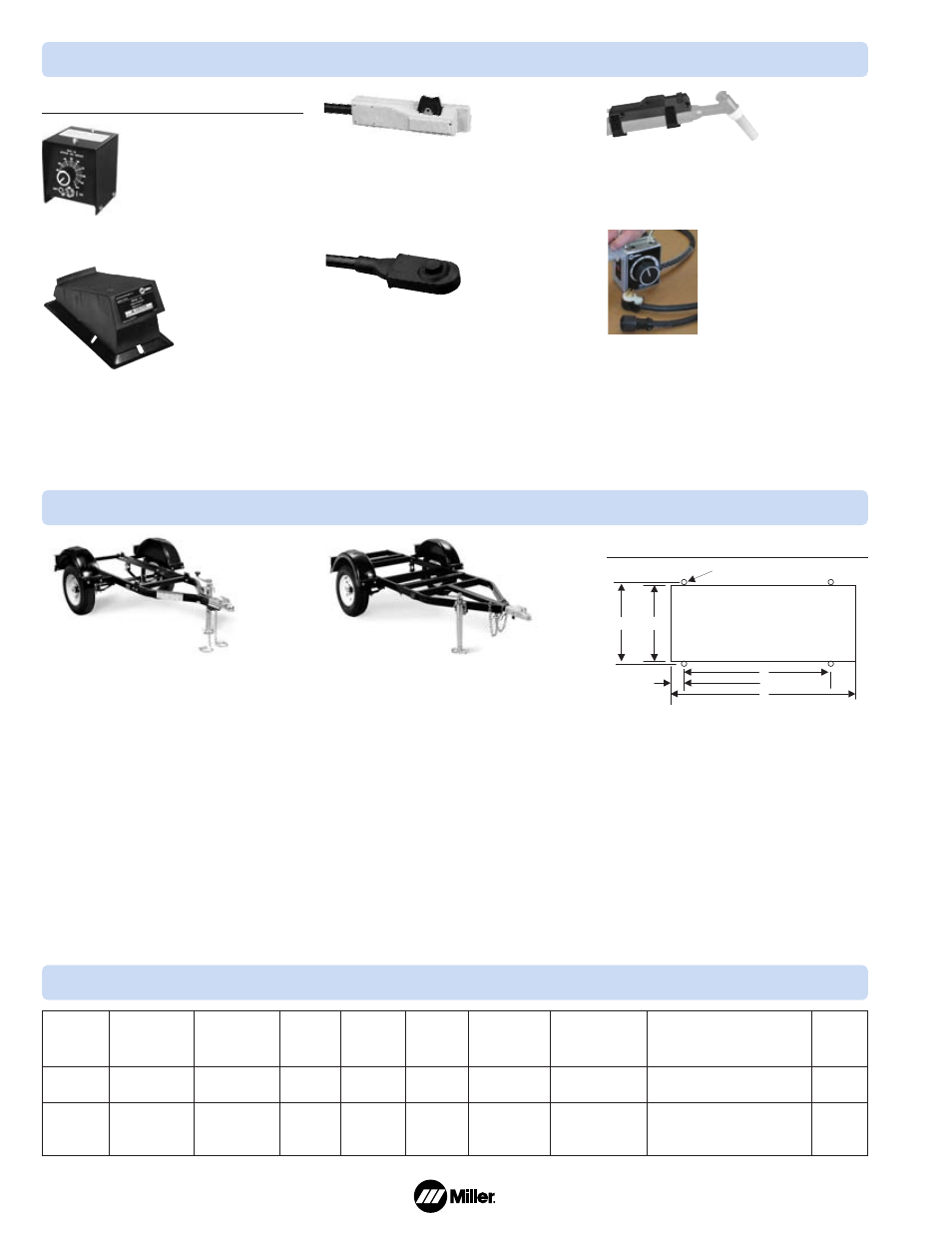

6
Genuine Miller Accessories
(continued)
Mid-Frame Trailer #195 481
1500 lb (680 kg) capacity highway trailer.
Welded steel tubing frame, heavy-duty axle
with roller bearing hubs and leaf-spring
suspension. Comes with jack stand, and
safety chain (order hitch separately).
Ball Hitch, 2 in #195 493
Lunette Eye 2-1/2 in (64 mm) #043 824
Fender Kit #195 482
Light Kit #195 483
Requires fender kit.
Cable Tree #195 023
Provides an area to conveniently wrap
weld cables and extension cords.
HWY-224 Trailer
#043 805 For highway use.
OFR-224 Trailer
#043 802 For off-road use.
A 2650 lb (1202 kg) capacity trailer.
Welded steel tubing frame, heavy-duty axle
with roller bearing hubs and leaf-spring
suspension. Includes jack stand, 2 in (50 mm)
ball hitch.
HWY-224 also includes fenders
and lights.
Note: Trailer is shipped unassembled.
Cable Tree #043 826
Provides an area to conveniently wrap weld
cables and extension cords.
Lunette Eye 2-1/2 in (64 mm) #043 824
Mounting Specifications
A. 27-3/4 in (705 mm)
B. 26-1/4 in (667 mm)
C. 52 in (1321 mm)
D. 2 in (51 mm)
E. 56 in (1422 mm)
F. 9/16 in (14 mm) dia.
4 holes
F
Front Panel
C
E
D
A B
Trailers and Hitches
(Note: Trailers are shipped unassembled.)
Shown with ball hitch,
fenders and lights.
Height: 32 in
(813 mm)
Width: 26-1/4 in
(667 mm)
Depth: 56 in
(1422 mm)
Specifications
(Subject to change without notice.)
Gross Vehicle
Weight Rating
1666 lb
(755 kg)
2960 lb
(1343 kg)
Gross Axle
Weight Rating
1500 lb
(680 kg)
3500 lb
(1588 kg)
Height
of Bed
18-1/2 in
(470 mm)
18-1/2 in
(470 mm)
Road
Clearance
6-1/2 in
(165 mm)
7-1/2 in
(191 mm
Net
Weight
242 lb
(110 kg)
355 lb
(161 kg)
Track (Center
to center of
tires)
45 in
(1143 mm)
52 in
(1321 mm
Standard Tires
(Standard rating
or P-size rating)
B78-13
B78-13
Dimensions
Length: 98 in (2489 mm)
Width: 52 in (1321 mm)*
Length: 122-1/2 in (3112 mm)
Width: HWY– 61 in (1549 mm)*
OFR–58-1/2 in (1486 mm)
* Width at outside of fenders.
Model
Mid-Frame
HWY-224
OFR-224
Net
Payload
1424 lb
(645 kg)
2650 lb
(1202 kg)
Remote Controls
RHC-14 Hand Control
#129 340
Miniature hand control for
remote current and contactor
control. Dimensions: 4 x 4 x
3-1/4 in (102 x 102 x 82 mm). Includes
20 ft (6 m) cord and 14-pin plug.
RFCS-14 HD Foot Control #194 744
Heavy-duty foot current and contactor
control. Includes 20 ft (6 m) cord and
14-pin plug.
RMLS-14 #129 337 14-pin plug
Momentary- and maintained-contact rocker
switch for contactor control. Push forward
for maintained contact and back for momen -
tary contact. Includes 20 ft (6 m) cord.
RMS-14 On/Off Control #187 208
Momentary-contact switch for contactor
control. Rubber-covered pushbutton dome
switch ideal for repetitive on-off
applications. Includes 26.5 ft (8 m) cord
and 14-pin plug.
RCC-14
Remote
Contactor and
Current Control #151 086 14-pin plug
Rotary-motion fingertip control fastens to
TIG torch using two Velcro
® straps.
Includes 28 ft (8.5 m) control cord.
PRHC-14 Hand Control
#195 511
Complete current or
voltage control brings
120 volts GFCI power to
work area in a single cord.
Housed in a durable light aluminum case
and includes 125 ft (38 m) cord with plugs.
Extension Cords for 14-Pin
Remote Controls or 24 VAC Wire Feeders
#122 973 25 ft (7.6 m)
#122 974 50 ft (15.2 m)
#122 975 75 ft (23 m)
