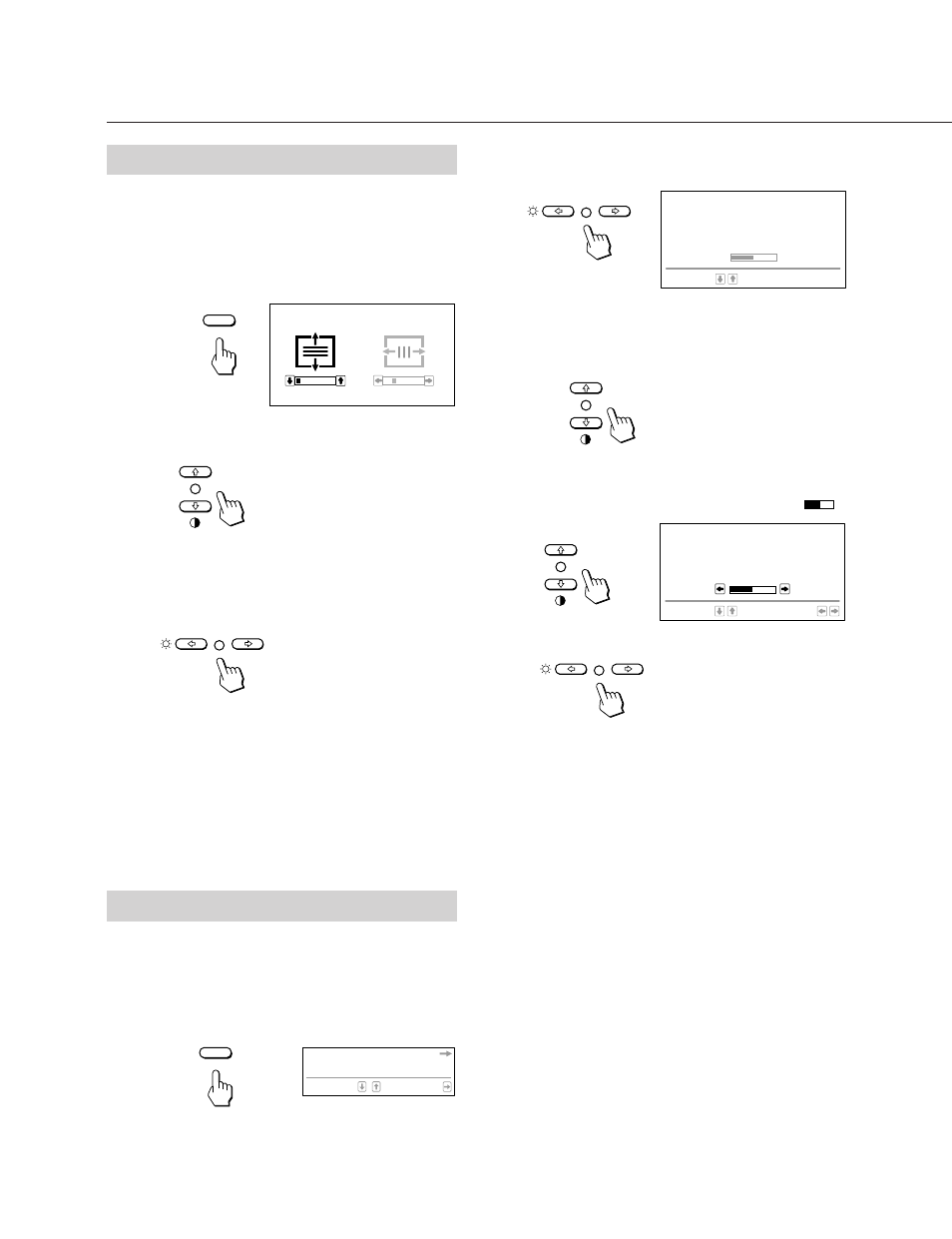

Adjusting the Convergence
The adjustment data becomes the common setting for all
input signals.
1
Press the CONV button.
The “CONVERGENCE” OSD (On Screen Display)
appears.
2
For vertical adjustment
Press the > >/. buttons.
> . . . to move Red up and Blue down
. . . . to move Red down and Blue up
For horizontal adjustment
Press the ¨ ?// buttons.
? . . . to move Red to the left and Blue to the right
/ . . . to move Red to the right and Blue to the left
To erase the “CONVERGENCE” OSD, press the CONV
button again.
The “CONVERGENCE” OSD automatically disappears 10
seconds after you release the buttons.
To reset, press RESET button while the OSD is on.
2
Press the ¨ / button.
The “COLOR TEMPERATURE” OSD appears.
3
Adjust with the > >/. and ¨ ?// buttons.
To select 9300K, 6500K, or 5000K
Press > >/. buttons.
To obtain the desired color temperature between
5000K and 9300K
1 Press the > >/. buttons to select user mode ( ).
2 Press the ¨ ?// buttons.
? . . . for lower temperature (to be reddish)
/ . . . for higher temperature (to be blueish)
Your most recent adjusted color temperature will be
recalled by pressing the > >/. button.
The factory presetting is 6500K for the user adjustable
mode of color temperature.
To erase the “COLOR TEMPERATURE” OSD, press the
COLOR button again.
The OSD automatically disappears 30 seconds after you
release the buttons.
To reset, press RESET button while the OSD is on.
Setting the Color Temperature
The selected color temperature becomes the common setting
for all input signals. (The factory presetting is 9300K.)
1
Press the COLOR button.
The “COLOR TEMPERATURE/INPUT” selection OSD
(On Screen Display) appears.
CONV
CONVERGENCE
0 2 3
COLOR TEMPERATURE
9 3 0 0 K
6 5 0 0 K
5 0 0 0 K
SELECT
5 0
COLOR TEMPERATURE
9 3 0 0 K
6 5 0 0 K
5 0 0 0 K
SELECT
5 0
SET
Adjustments
COLOR TEMPERATURE
INPUT:
SET SELECT
HD1 5 BNC COLOR
