7

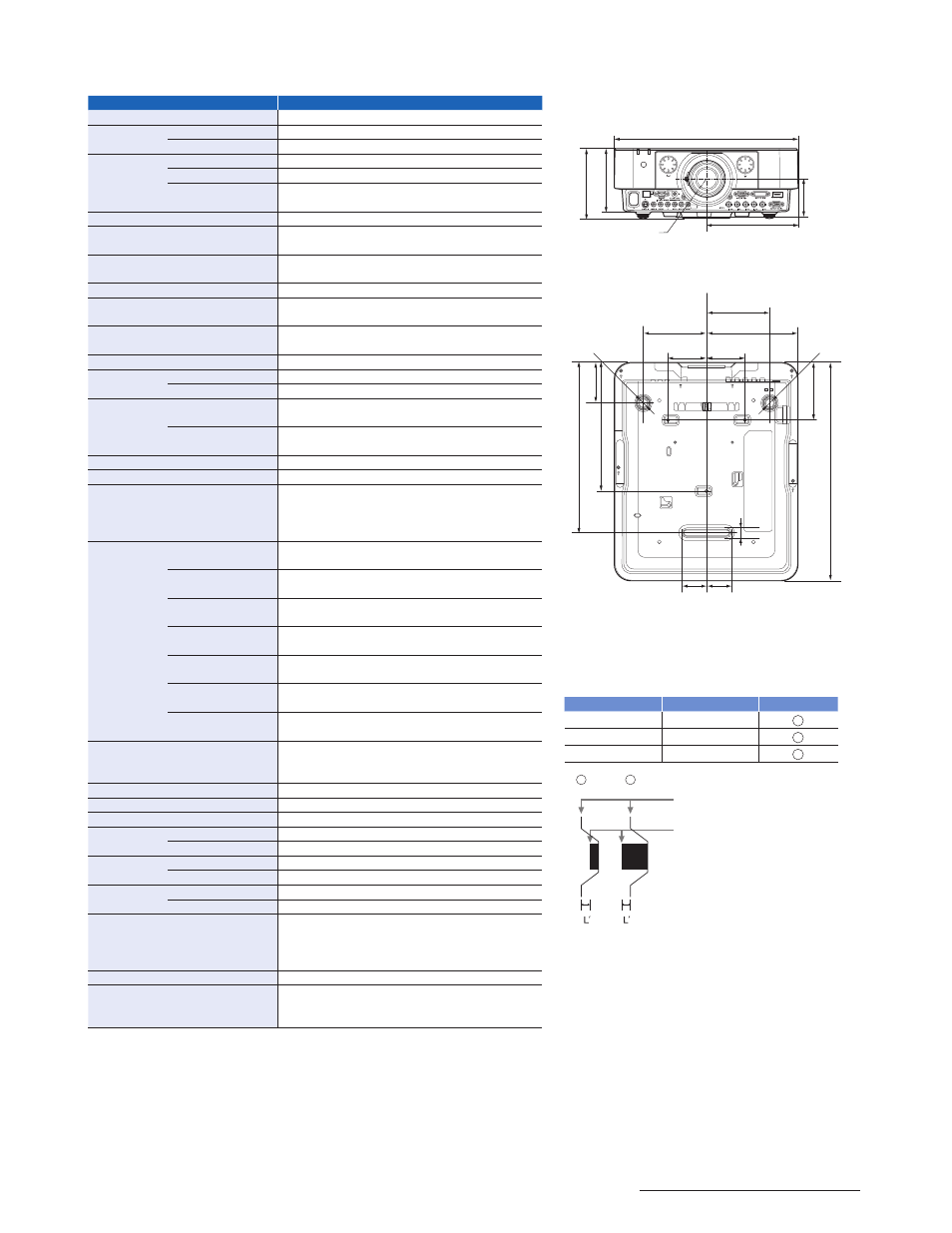

SPECIFICATIONS
DIMENSIONS
18
7
/
32
(
46
3)
Ш
23
/
32
(18)
Ш
23
/
32
(18)
1
31
/
32
(50)
1
31
/
32
(50)
4
13
/
16
(
12
2)
19
/
32
(
15
)
Center of the lens
5
9
/
32
(134)
7
11
/
16
(195)
3
7
/
32
(81.5)
3
7
/
32
(81.5)
5
9
/
32
(134)
10
23
/
32
(
27
2.
6)
3
3
/
8
(8
6)
14
7
/
32
(
36
1)
Front
Unit: inches (mm)
Bottom
15
11
/
32
(390)
3
3
/
16
(
81
)
7
11
/
16
(195)
5
9
/
32
(
13
4)
5
13
/
16
(
14
8)
Center of the lens
VPL-FH30
Display system
3 LCD system
Display device
Size of effective display area 0.76” (19.3 mm) x 3, BrightEra, Aspect ratio: 16:10
Number of pixels
6,912,000 (1920 x 1200 x 3) pixels
Projection lens
Zoom
Manual (Approx. 1.6 x)
Focus
Manual
Lens shift
Manual, Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Light source
High-pressure mercury lamp, 275 W type
Recommended lamp replacement time*
1
3000 H (Lamp mode: High)
4000 H (Lamp mode: Standard)
Filter cleaning cycle
Max. 15000 H*
1
Same time as the lamp replacement is recommended
Screen size
40” to 600” (1.02 m to 15.24 m)*
2
Light output
4300 lm (Lamp mode: High)
3400 lm (Lamp mode: Standard)
Color light output
4300 lm (Lamp mode: High)
3400 lm (Lamp mode: Standard)
Contrast ratio (full white / full black)*
2
2000:1
Displayable
scanning frequency
Horizontal
14 kHz to 93 kHz
Vertical
47 Hz to 93 Hz
Display resolution Computer signal input
Maximum display resolution: 1920 x 1200 dots*
3
Panel display resolution: 1920 x 1200 dots
Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p,
720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p
Color system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction
Vertical: Max. +/- 5 degrees
OSD language
20-languages (English, Dutch, French, Italian, German, Spanish,
Portuguese, Turkish, Polish, Russian, Swedish, Norwegian,
Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai,
Vietnamese, Arabic, Persian)
Computer and
video signal
input/output
INPUT A
RGB / Y P
B
P
R
input connector: 5BNC (female)
Audio input connector: Stereo mini jack
INPUT B
RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack (shared with INPUT C)
INPUT C
DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
Audio input connector: Stereo mini jack (shared with INPUT B)
INPUT D
HDMI input connector: Digital RGB/Y P
B
P
R
Digital Audio: PCN (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz)
S VIDEO IN
S video input connector: Mini DIN 4-pin
Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN
Video input connector: Pin jack
Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
OUTPUT
Monitor output connector*
4
: Mini D-sub 15-pin (female)
Audio output connector*
5
: Stereo mini jack (variable out)
Control signal input/output
RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC 5 V
Operating temperature (Operating humidity)
32°F to 104°F / 0°C to 40°C (35% to 85%; no condensation)
Storage temperature (Storage humidity)
-4°F to +140°F / -20°C to +60°C (10% to 90%)
Power requirements
AC 100 V to 240 V, 4 A to 1.6 A, 50/60 Hz
Power
consumption
AC 100 V to 120 V
400 W
AC 220 V to 240 V
380 W
Standby mode
power consumption
AC 100 V to 120 V
9 W (Standby mode: Standard) / 0.15 W (Standby mode: Low)
AC 220 V to 240 V
10 W (Standby mode: Standard) / 0.3 W (Standby mode: Low)
Heat dissipation
AC 100 V to 120 V
1365 BTU
AC 220 V to 240 V
1297 BTU
Outside dimensions
W 15 11/32 x H 5 13/16 x D 18 25/32 in
(W 390 x H 148 x D 477 mm)
W 15 11/32 x H 5 9/32 x D 18 7/32 in
(W 390 x H 134 x D 463 mm) (without protrusions)
Weight
17 lb 14 oz / 8.1 kg
Supplied accessories
RM-PJ19 Remote Commander (1), Size AA (R6) batteries (2),
AC Power Cord (1), Cable ties (2), Quick Reference Manual (1),
Security Label (1), Operating Instructions (1)
*1 The figures are expected maintenance time and not guaranteed. They will depend on
the environment or how the projector is used.
*2 This value is average.
*3 Available for the VESA Reduced Blanking signal.
*4 From INPUT A and INPUT B.
*5 Works as an audio switcher function. Output from a selected channel; not available in
standby.
1
2
Front of the cabinet
Front of the lens
Unit: inches (mm)
Lens
L’
Type
Standard lens
15/32 (12.2)
1
VPLL-Z1024
1/16 (1.6)
2
VPLL-Z1032
1/32 (0.3)
1
The distance L’ is between the front of the lens
(center) and the front of the cabinet
