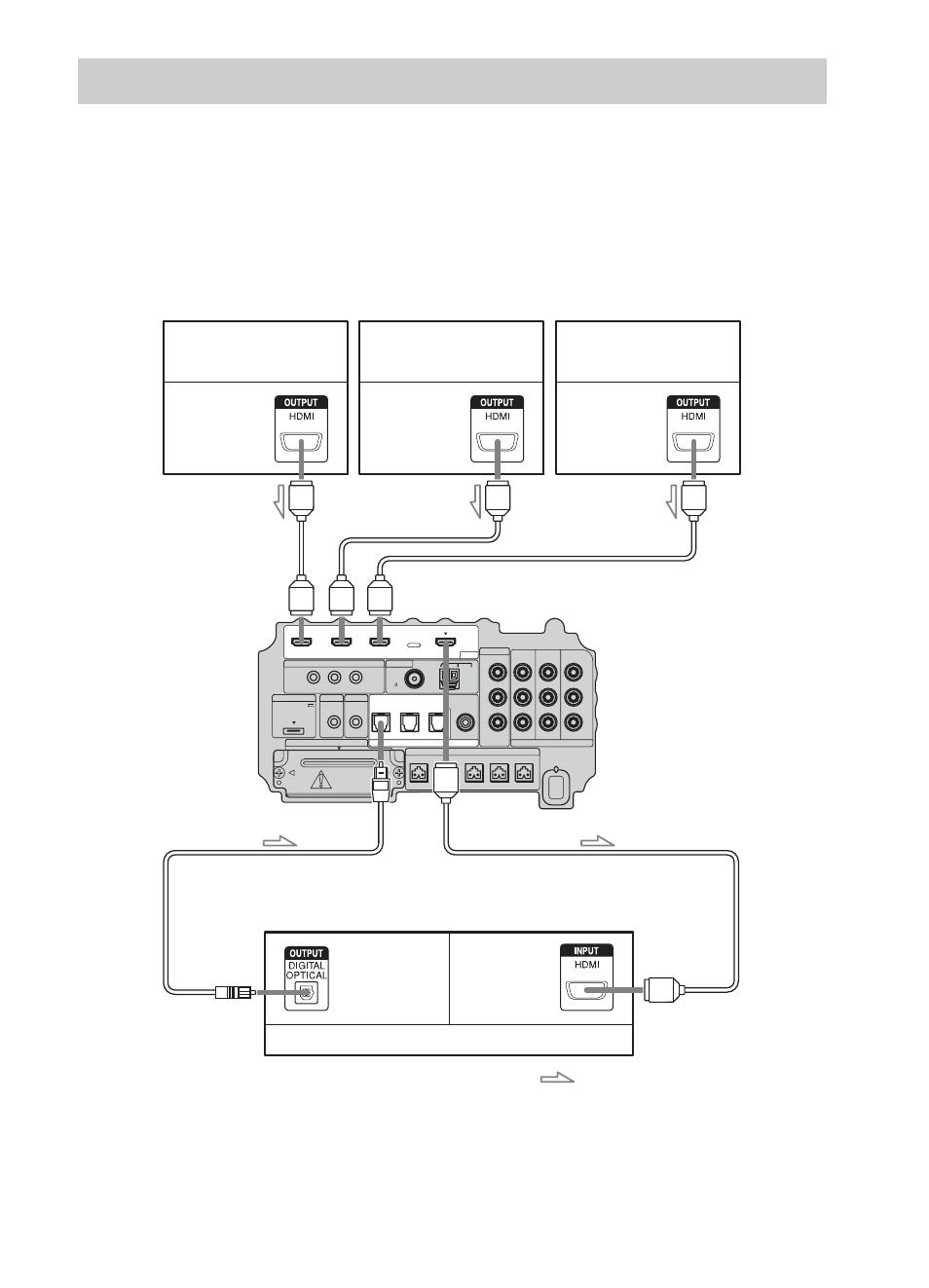

Sony recommends that you connect components to the system using an HDMI cable.
With HDMI, you can easily enjoy both high quality sound and high quality images.
However, it is necessary to connect the audio output of the TV to the audio input of the system
using an optical cable in order to listen to the TV’s sound from the system.
For details on the Control for HDMI function, see ““BRAVIA” Sync features” (page 41).
Step 3a: Connecting the Components with HDMI Jacks
IR REMOTE
VIDEO
DMPORT
SPEAKER
ONLY FOR SS-IS15
ECM-AC2
IR-R100
ANTENNA
HDMI
IR IN
IR OUT1 IR OUT2
FM
AM
75
COAXIAL
DC 5V
0.7A MAX
FRONT R
FRONT L
SUR R
SUR L
CENTER
BD IN
DVD IN
SAT IN
SAT IN
ASSIGNABLE
COAXIAL
AUDIO IN
ASSIGNABLE
VIDEO IN
L
R
TV OUT
EZW-T100
DIGITAL
TV IN
DVD IN
SAT IN
OPTICAL
COMPONENT VIDEO
DVD IN
SAT IN
MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
TV monitor, projector, etc.
A
HDMI cable (not supplied)
B
Optical cable (supplied)
Blu-ray Disc player (recorder),
“PlayStation 3”
Audio/video
signal
Satellite tuner
Audio/video
signal
B
A
Audio/video
signal
DVD player (recorder)
Audio signal
: Signal flow
A
A
A
Bottom of the
subwoofer
Audio/video
signal
