Page 18
18
GB
When you connect a DVD player (recorder), satellite tuner, VCR, etc., that has no HDMI jacks, you
can choose the connecting combination of the system. This subwoofer is equipped with a function for
converting video signals. For details, see “Function for Conversion of Video Signals” (page 29).

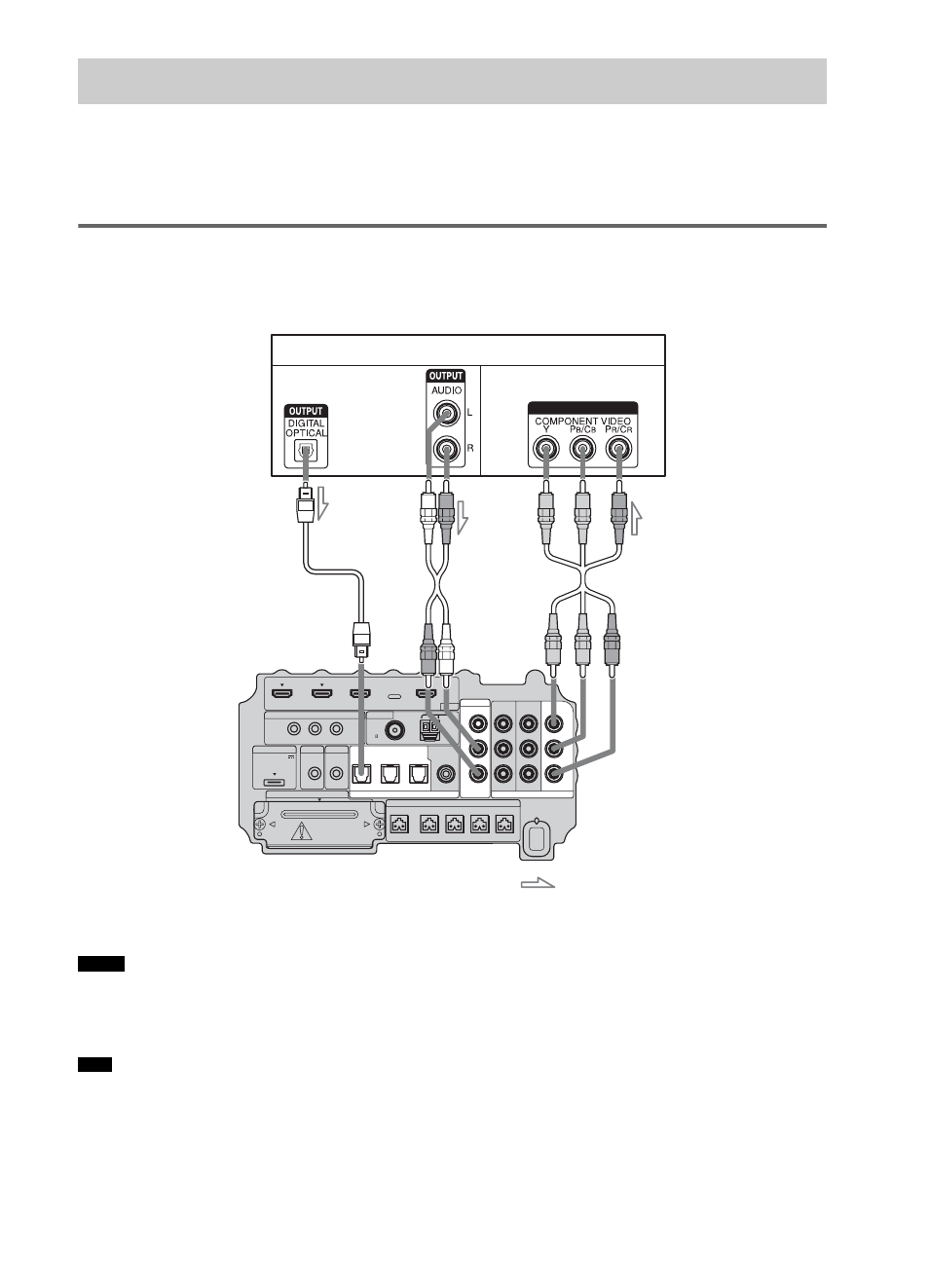

Connecting a TV monitor
The image from a visual component connected to this subwoofer can be displayed on a TV monitor,
projector, etc.
• Connect image display components such as a TV or a projector to the MONITOR OUT jacks on the subwoofer.
• Be sure to turn on the subwoofer when the video and audio of a playback component are being output to a TV via
the subwoofer. If the power supply of the subwoofer is not turned on, neither video nor audio signal is transmitted.
• You can reassign the analog audio input using the AUDIO IN ASSIGNABLE jacks. For details, see “Reassigning
the analog audio input” (page 63).
• You can watch the selected input image when you connect the MONITOR OUT jack to a TV.
Step 3b: Connecting the Components without HDMI Jacks
Notes
Tips
IR REMOTE
VIDEO
DMPORT
SPEAKER
ONLY FOR SS-IS15
ECM-AC2
IR-R100
ANTENNA
HDMI
IR IN
IR OUT1 IR OUT2
FM
AM
75
COAXIAL
DC 5V
0.7A MAX
FRONT R
FRONT L
SUR R
SUR L
CENTER
BD IN
DVD IN
SAT IN
SAT IN
ASSIGNABLE
COAXIAL
AUDIO IN
ASSIGNABLE
VIDEO IN
L
R
TV OUT
EZW-T100
DIGITAL
TV IN
DVD IN
SAT IN
OPTICAL
COMPONENT VIDEO
DVD IN
SAT IN
MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
INPUT
TV monitor, projector, etc.
A
A
Optical cable (supplied)
B
Audio cord (not supplied)
C
Component video cord (not supplied)
Video signal
: Signal flow
B
Audio signal
Bottom of the
subwoofer
C
or
