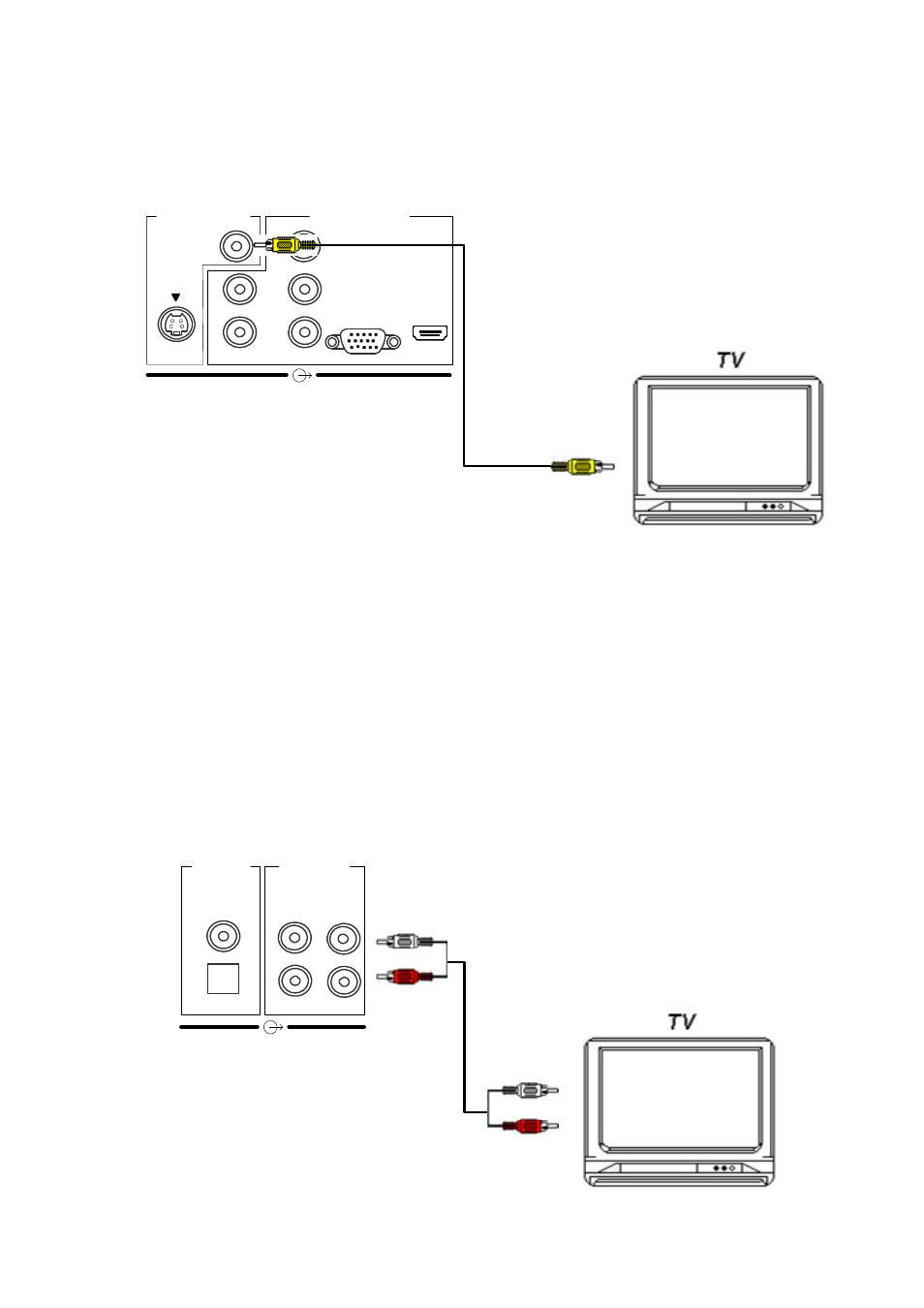

Composite video connection: If your TV has composite video inputs, use the yellow connector of the
Audio/Video cable included in the HDD-J35 accessory box. Connect the yellow video connector from
“SD VIDEO OUT” on the rear of the recorder to the corresponding jack on the TV.
Audio/Video cable
(supplied)
To TV composite
video input
HDD-J35
Match the
colors when
connecting
RGB
SD VIDEO OUT
S-VIDEO
Y/G
P
B
/B
P
R
/R
H
V
VIDEO
HDMI
HD VIDEO OUT
Note: This diagram illustrates video connections only. Refer to Audio connection below.
1-5.
Connections to TV – Audio Connection
For audio connections, you have two choices. You can connect the recorder to your TV or to an audio amplifier
equipped with a Dolby® Digital decoder. If you
do not have an external amplifier equipped with a Dolby® Digital
decoder, use the red and white connectors of the Audio/Video cable included in the package. Connect the audio
connectors from “ANALOG AUDIO OUT” on the rear of the recorder to the corresponding jacks on the TV: red to
red (right audio) and white to white (left audio).
Note: If your TV has only one audio input jack, connect either the right or left audio connector to the audio jack.
Do not connect the yellow connector to TV if using HDMI, RGB, component video or S-Video connector.
Audio/Video cable
(supplied)
To TV audio inputs
white
red
HDD-J35
white
red
Match the
colors when
connecting
L
R
L
R
(COAXIAL)
(OPTICAL)
DIGITAL
AUDIO OUT
ANALOG
AUDIO OUT
