Quality since 1946
8

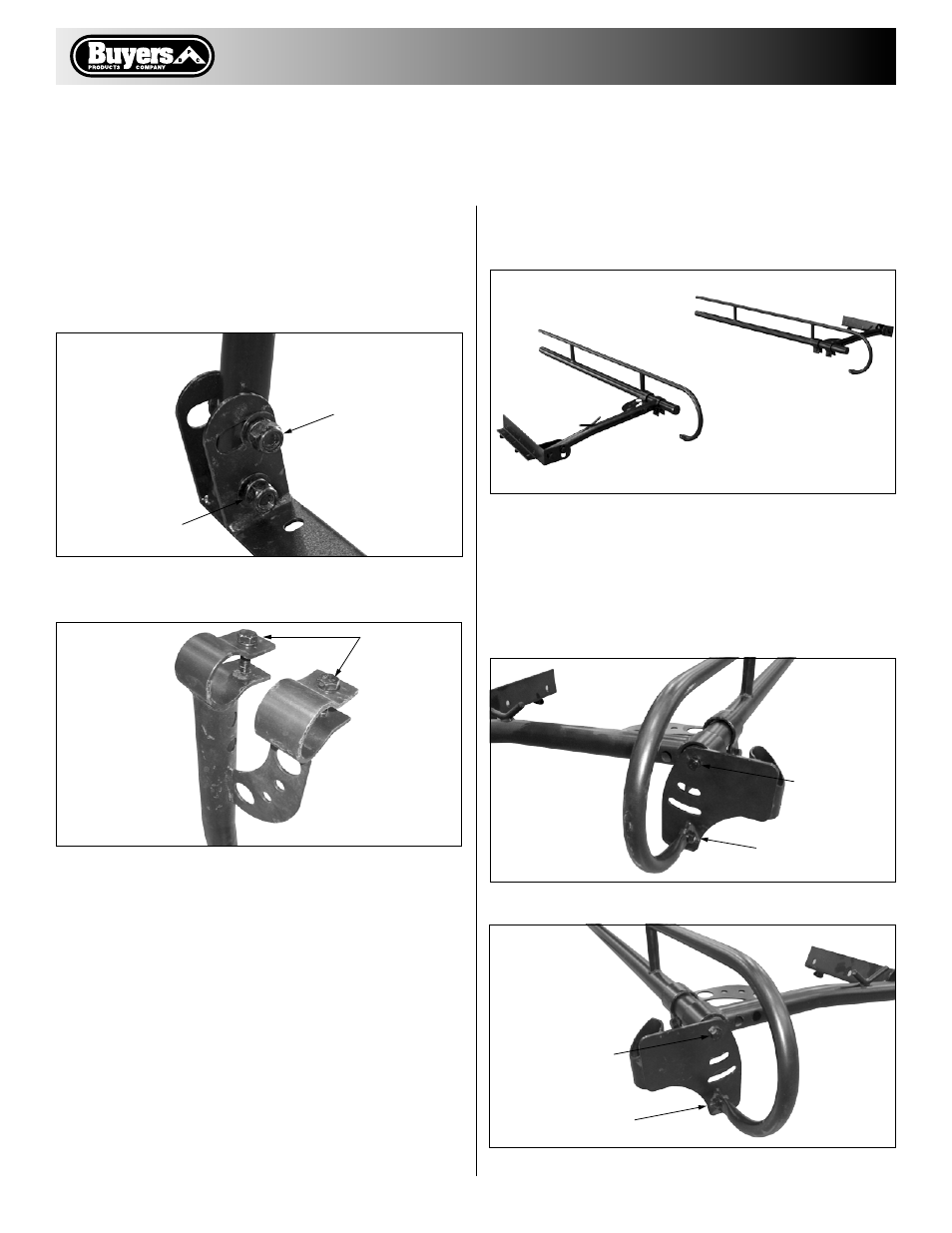

2. Slide the rear legs onto the rear siderails as
shown.
Assembling Rear Half of Rack (Short or Long Bed)
1. Assemble the rear legs and feet as shown.
Legs and feet are directional. Make sure that leg
gussets are facing toward the front of the rack.
Foot mounting tabs should face the inside of the
bed on each side. Hand tighten hardware.
G
H
C
3. Attach the rear crossbar mounting brackets to
the rear siderails as shown. Hardware can be fully
tightened.
F
E
Driver Side
F
E
Passenger Side
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Fig. 25
