REV 1
12/13/2013
SK-2732
SK-
2732
ARNOTT BILSTEIN FRONT SHOCK KIT
FOR
2002-2009
LEXUS GX-470 (TOYOTA PRADO)
4.

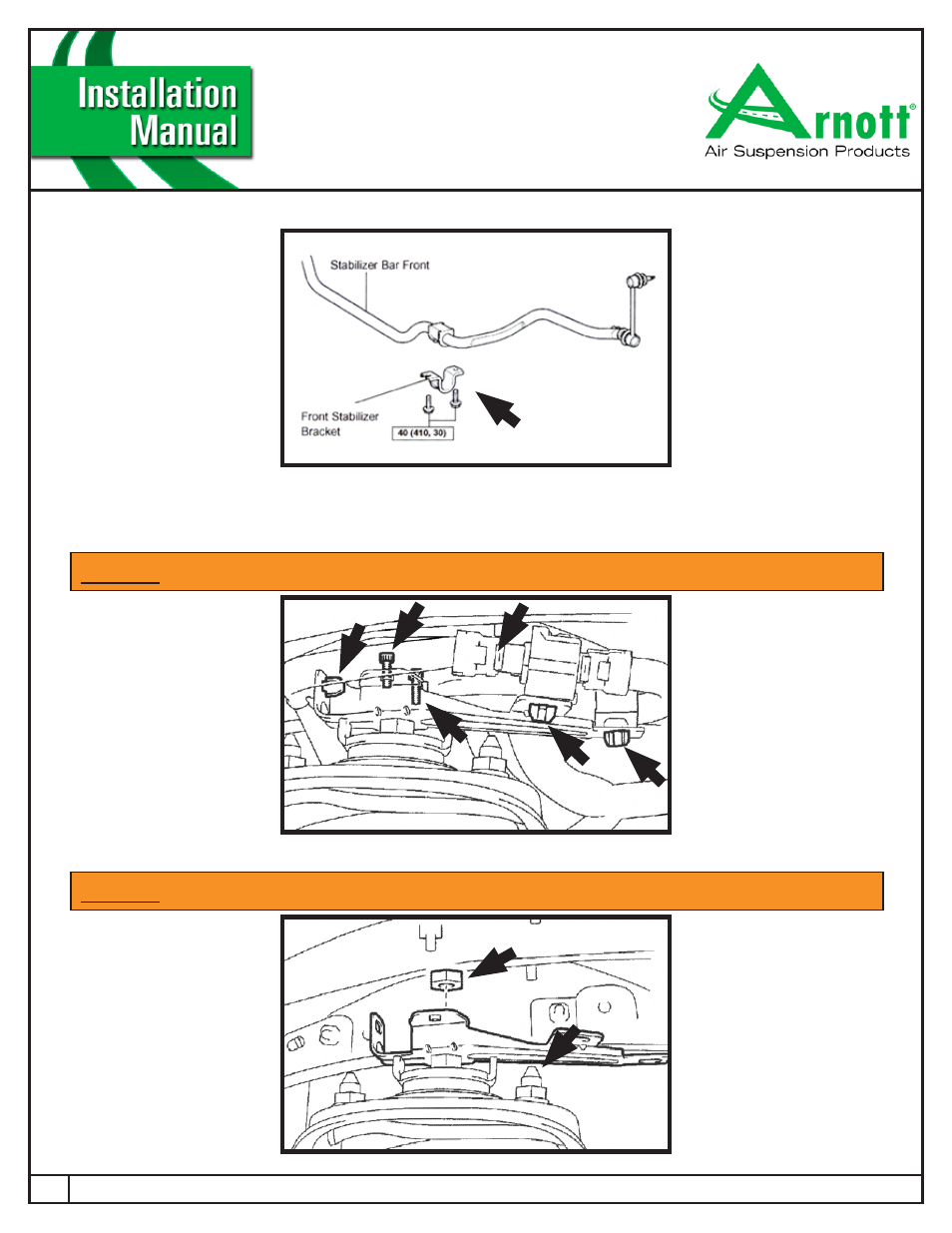

REMOVE FRONT STABILIZER BRACKET(S), BOTH LEFT AND RIGHT SIDES. (FIGURE 2)
5.
REMOVE STABILIZER BAR FRONT.
6.
DISCONNECT THE 3 CLAMPS, CONNECTOR AND THE TWO RETAINING BOLTS OF THE ABSORBER CONTROL
ACTUATOR. (FIGURE 3)
7.
REMOVE THE NUT AND BRACKET. (FIGURE 4)
FIGURE 2
FIGURE 3
FIGURE 4
The absorber control actuator does not get re-installed.
The absorber control actuator does not get re-installed.
NOTE:
NOTE:
THE ABSORBER CONTROL ACTUATOR DOES NOT GET RE-INSTALLED.
THE BRACKET AND NUT DOES NOT GET RE-INSTALLED.
