Air Suspension SK-2732 User Manual
Page 6
Advertising
6
REV 1
12/13/2013
SK-2732
SK-
2732
ARNOTT BILSTEIN FRONT SHOCK KIT
FOR
2002-2009
LEXUS GX-470 (TOYOTA PRADO)
12.

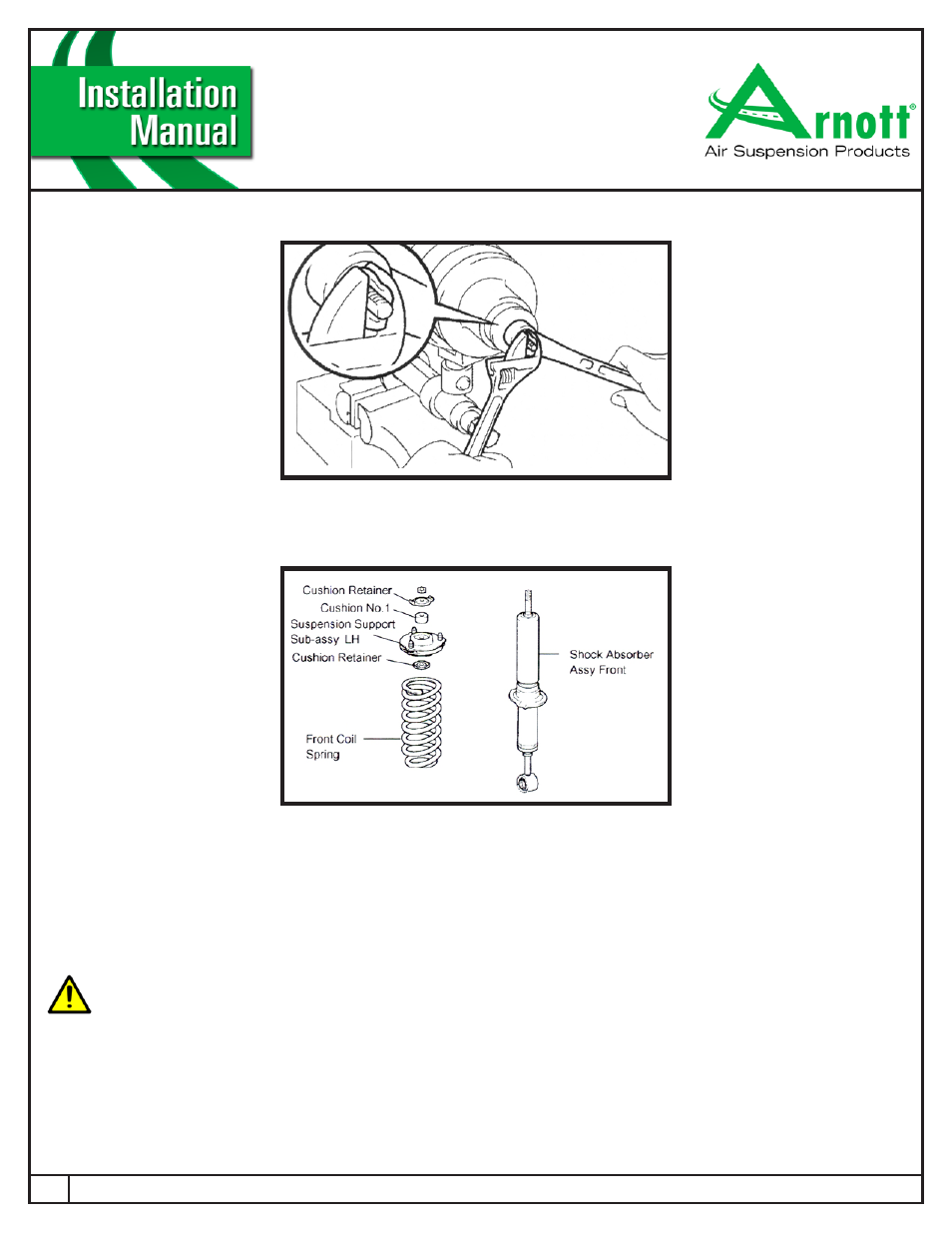

HOLD THE SHOCK ABSORBER AND REMOVE THE NUT. (FIGURE 8)
13.
REMOVE THE CUSHION RETAINER, CUSHION NO. 1, SUPPORT SUB ASSEMBLY, CUSHION RETAINER AND THE
FRONT COIL. (FIGURE 9)
14.
REMOVAL COMPLETE.
FIGURE 8
FIGURE 9
SHOCK INSTALLATION
1.
INSTALLATION IS IN REVERSE ORDER OF SHOCK REMOVAL. (DO NOT RE-INSTALL THE ABSORBER
CONTROL ACTUATOR (STEP 6) AND BRACKET/NUT (STEP 7). TORQUE ALL FASTENING HARDWARE AS
SPECIFIED IN FIGURE A).
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
