ARNOTT BILSTEIN FRONT SHOCK KIT
FOR
2002-2009
LEXUS GX-470 (TOYOTA PRADO)
8.

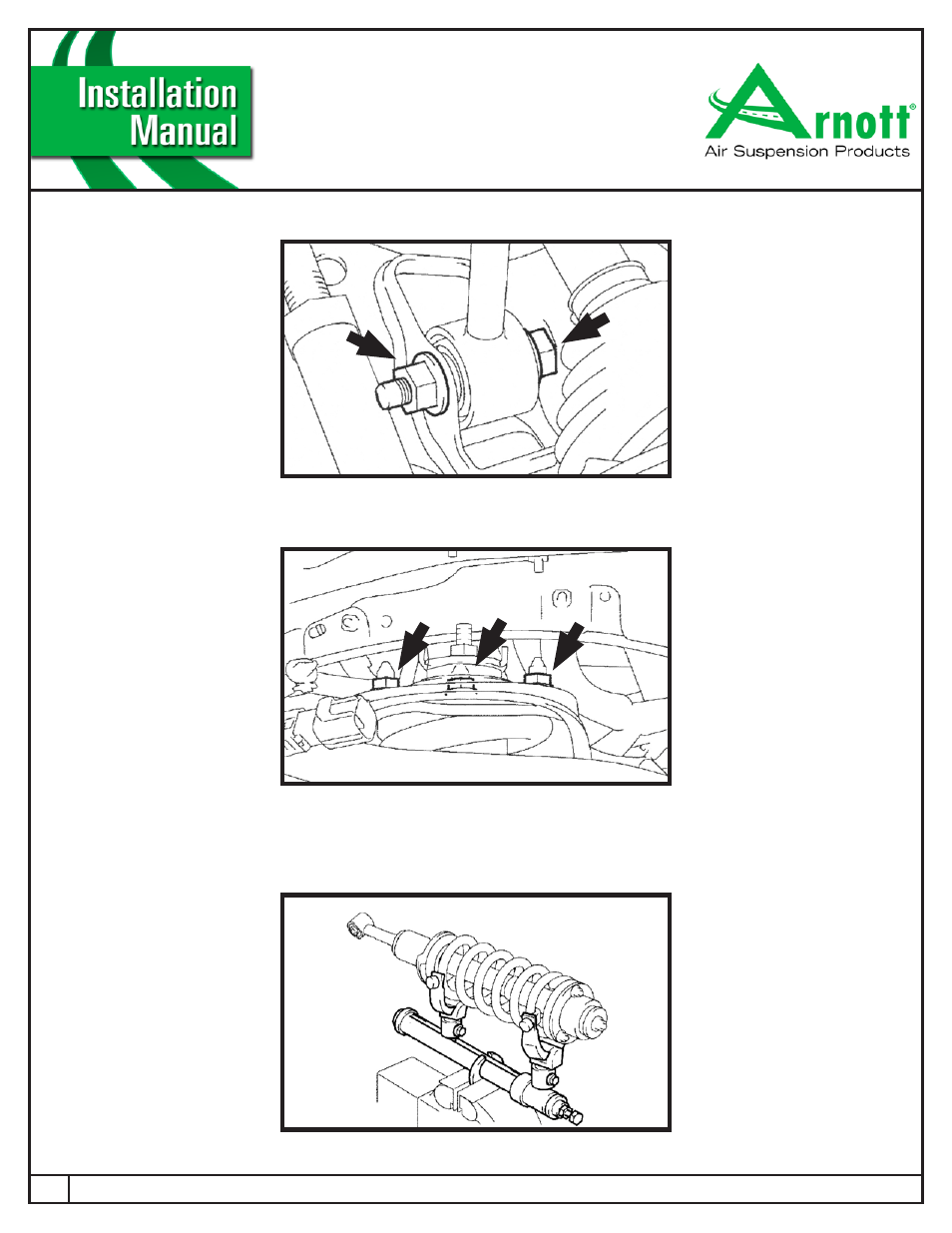

REMOVE THE LOWER SHOCK MOUNTING NUT, WASHER, AND BOLT. (FIGURE 5)
9.
REMOVE THE THREE NUTS ON THE UPPER SIDE OF THE SHOCK ABSORBER WITH COIL SPRING. (FIGURE 6)
10.
REMOVE THE SHOCK ABSORBER WITH COIL SPRING.
11.
USING A COIL COMPRESSOR COMPRESS THE COIL. (FIGURE 7)
FIGURE 5
FIGURE 6
FIGURE 7
