UDZ5V1BF
Document number: DS32228 Rev. 5 - 2
3 of 4
www.diodes.com
August 2010
© Diodes Incorporated
UDZ5V1BF
NEW PROD
UC
T
Ordering Information
(Note 8)
Part Number Case Packaging
UDZ5V1BF-7 SOD-323F 3000/Tape & Reel
Notes: 8. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Date Code Key
Year 2010 2011 2012 2013 2014 2015 2016
Code X Y Z A B C D
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

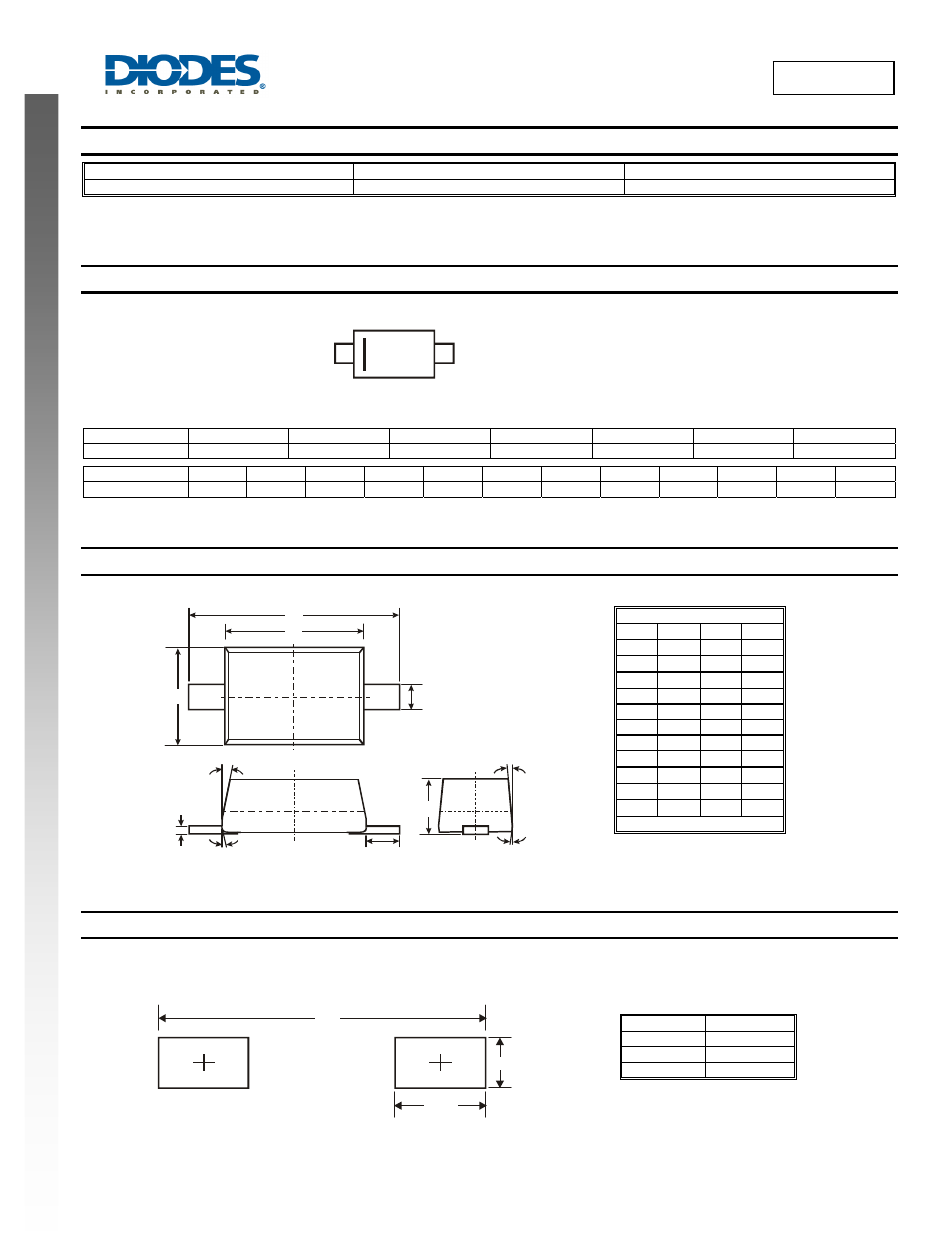

Package Outline Dimensions
Suggested Pad Layout
SOD-323F
Dim Min Max Typ
A 0.60 0.75 −
b 0.25 0.35 −
c 0.05 0.26 −
D 1.15 1.35 1.25
E 1.60 1.80 1.70
He 2.30 2.70 2.50
L1 0.30 0.50 0.40
α1 − − 7°
α2 − − 3°
β1 − − 7°
β2 − − 3°
All Dimensions in mm
Dimensions Value (in mm)
X 0.710
Y 0.403
C 2.700
GM = Product Type Marking Code
(See Electrical Characteristics Table)
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
A
He
E
D b (2x)
c
L1 β2
β1
α2
α1
C
Y (2x)
X (2x)
GM
YM
