TLV431
Document number: DS32088 Rev. 6 - 2
4 of 14
www.diodes.com
October 2012
© Diodes Incorporated
TLV431
A Product Line of
Diodes Incorporated

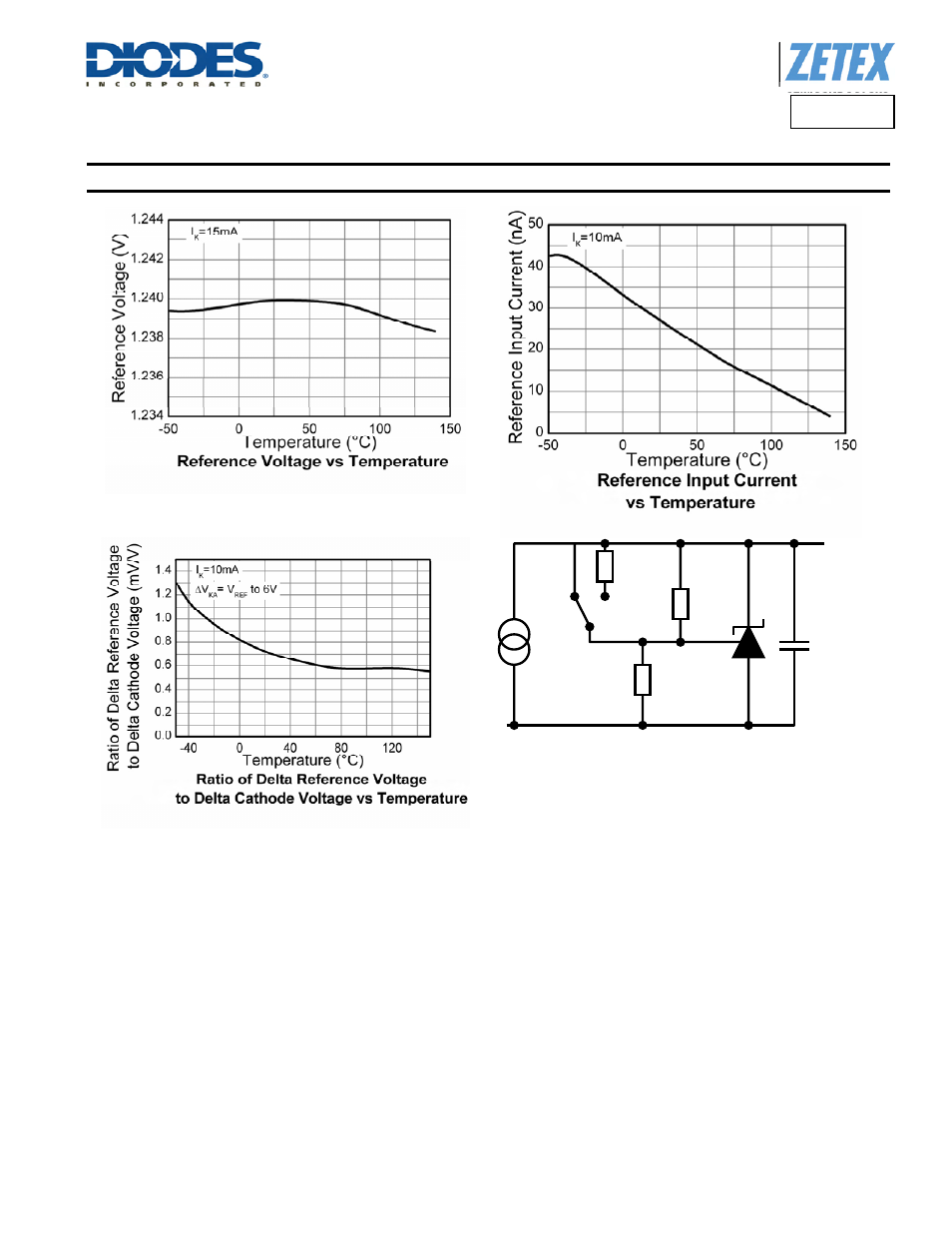

Typical Characteristics
Test Circuit for V
REF
Measurement
10k
Ω
O/P
75k
Ω
I
K
10mA
S1
100nF
56k Ω
