TLV431
Document number: DS32088 Rev. 6 - 2
7 of 14
www.diodes.com
October 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
Typical Characteristics
(cont.)

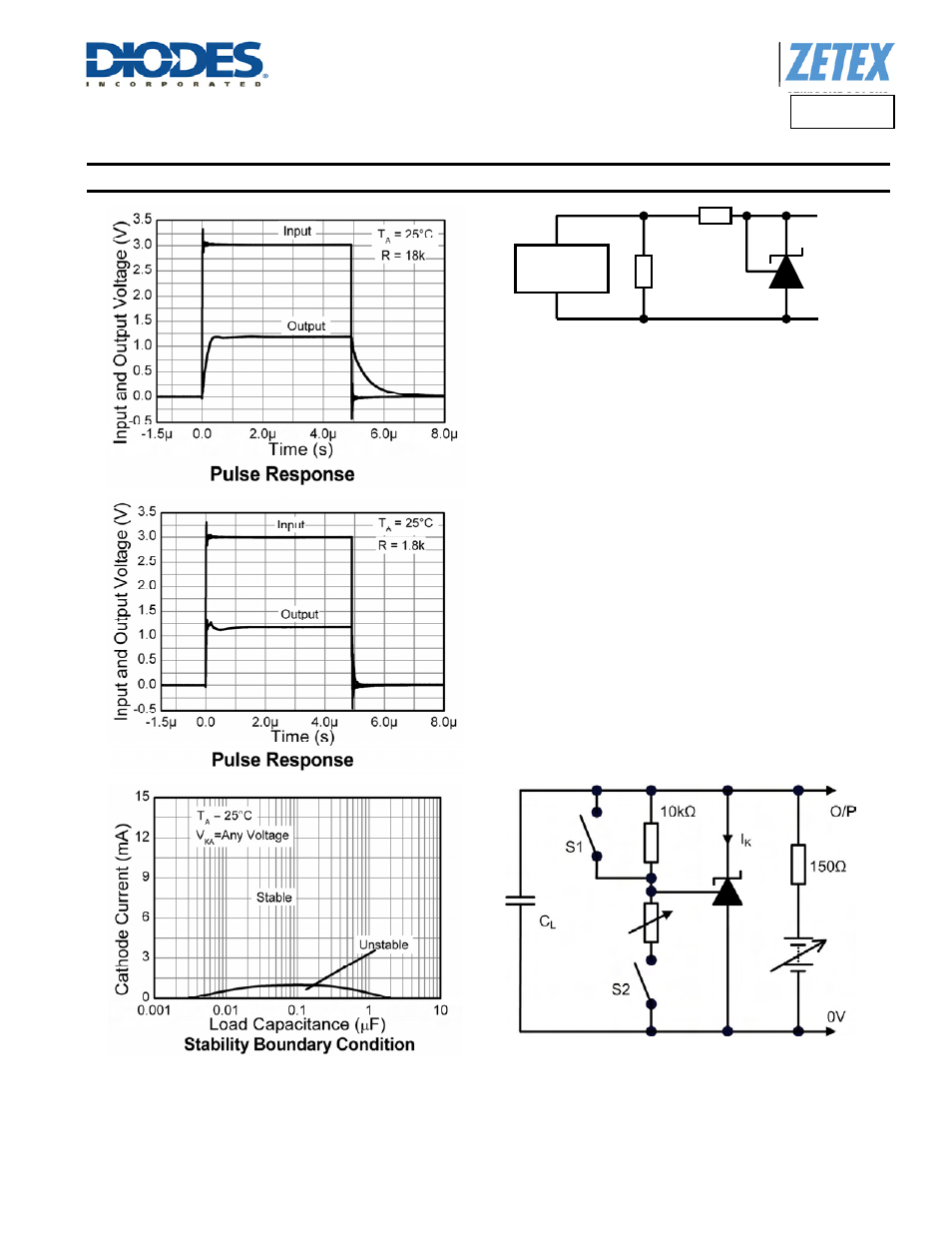

Test Circuit for Pulse Response
Pulse
Generator
O/P
