FMMT560

Document Number: DS33102 Rev. 6 - 2

6 of 7

www.diodes.com

March 2014

© Diodes Incorporated

A Product Line of

Diodes Incorporated

FMMT560




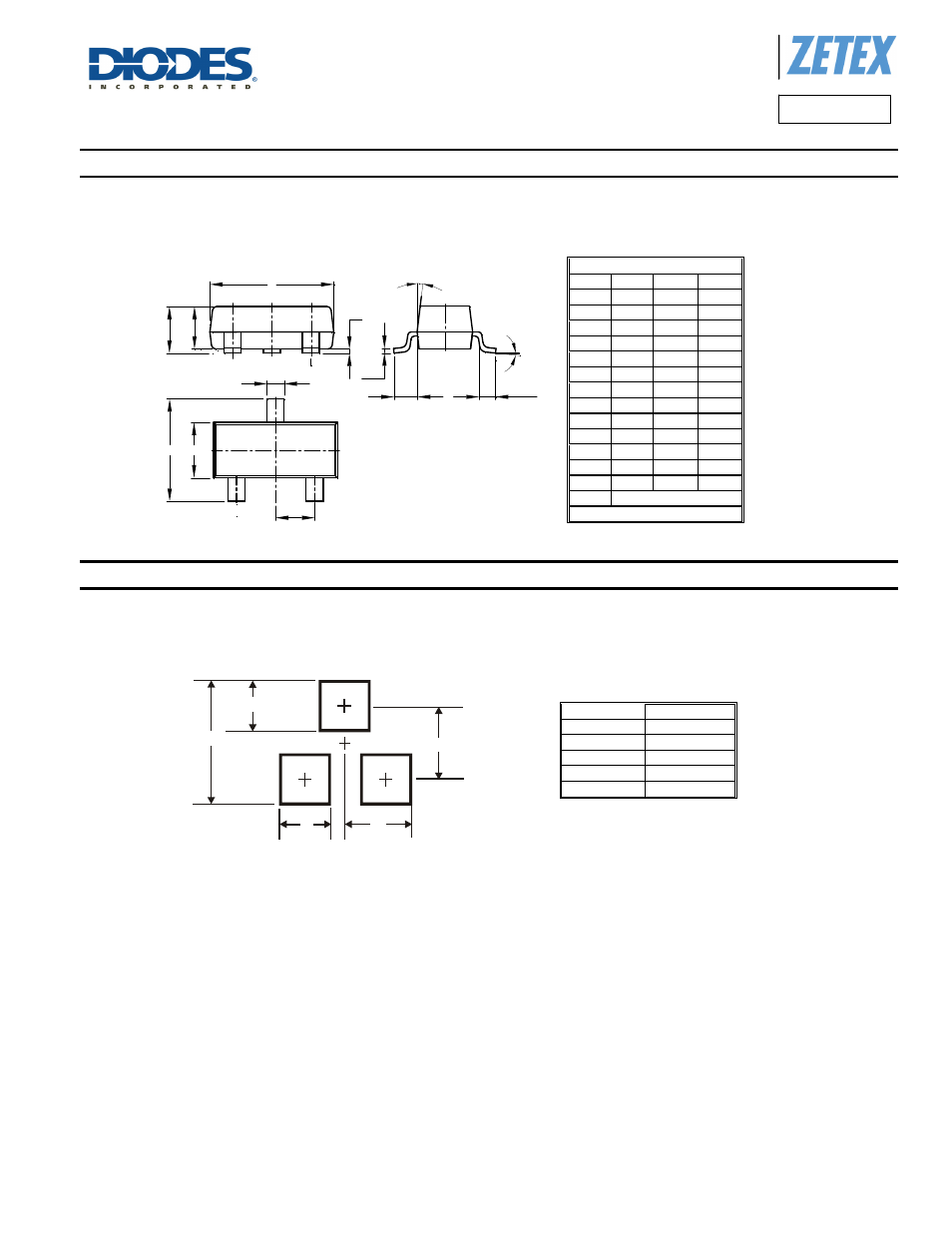

Package Outline Dimensions

Please see AP02002 at

http://www.diodes.com/datasheets/ap02002.pdf

for latest version.


Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.















Note:

For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between
device Terminals and PCB tracking.




SOT23

Dim Min Max Typ

A

0.37 0.51 0.40

B

1.20 1.40 1.30

C

2.30 2.50 2.40

D

0.89 1.03 0.915

F

0.45 0.60 0.535

G

1.78 2.05 1.83

H

2.80 3.00 2.90

J

0.013

0.10 0.05

K

0.890

1.00 0.975

K1

0.903

1.10 1.025

L

0.45 0.61 0.55

L1

0.25 0.55 0.40

M

0.085 0.150 0.110

a

All Dimensions in mm

Dimensions Value (in mm)

Z

2.9

X

0.8

Y

0.9

C

2.0

E

1.35

X

E

Y

C

Z

J

K 1

K

L 1

H

L

M

A l l 7 °

A

C

B

D

a
