FZT560

Document Number DS33140 Rev. 2 - 2

6 of 7

www.diodes.com

December 2013

© Diodes Incorporated

FZT560

A Product Line of

Diodes Incorporated

A1

A

D

b

e

e1

b1

C

E1

L

0°-

10

°

Q

E

0.25

Seating

Plane

Gauge

Plane





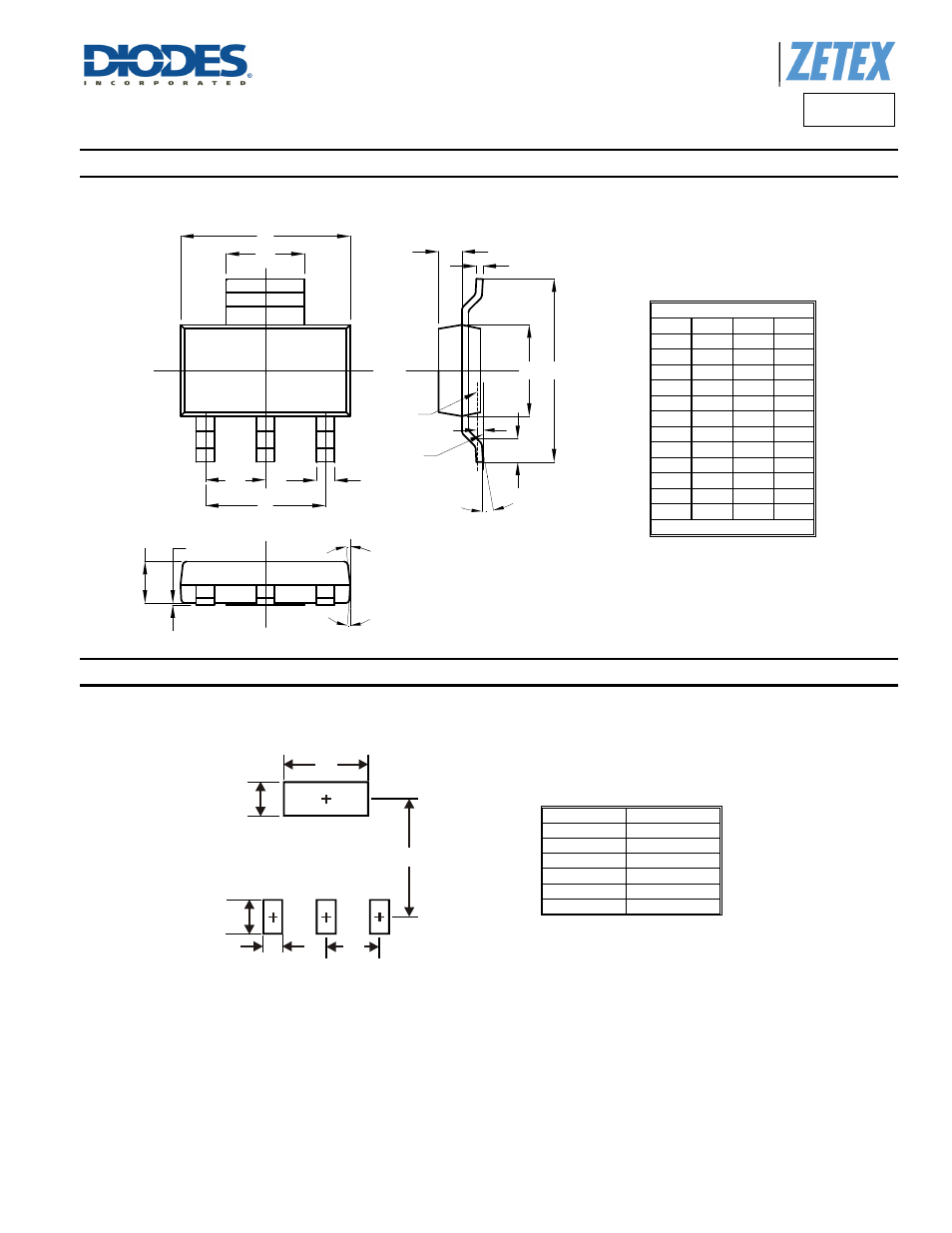

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.




























Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.


















Note: For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device
Terminals and PCB tracking.


SOT223

Dim Min Max Typ

A 1.55 1.65 1.60

A1 0.010 0.15 0.05

b 0.60 0.80 0.70

b1 2.90 3.10 3.00

C 0.20 0.30 0.25
D 6.45 6.55 6.50
E 3.45 3.55 3.50

E1 6.90 7.10 7.00

e - -

4.60

e1 - - 2.30

L 0.85 1.05 0.95

Q 0.84 0.94 0.89

All Dimensions in mm

Dimensions Value (in mm)

X1

3.3

X2

1.2

Y1

1.6

Y2

1.6

C1

6.4

C2

2.3

X2

C1

C2

X1

Y2

Y1
