MMSZ5221BS - MMSZ5259BS
Ordering Information
(Note 7)
MMSZ5221BS -MMSZ5259BS
Document number: DS31038 Rev. 12 - 2
4 of 4
www.diodes.com
June 2008
© Diodes Incorporated
Part Number Case Packaging
(Type Number)-7-F SOD-323 3000/Tape & Reel
* Add “-7” to the appropriate type number in Electrical Characteristics Table . Example: 6.2V Zener = MMSZ5234BS-7-F.
Notes: 7. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
XX XX = Product Type Marking Code
(See Electrical Characteristics Table)

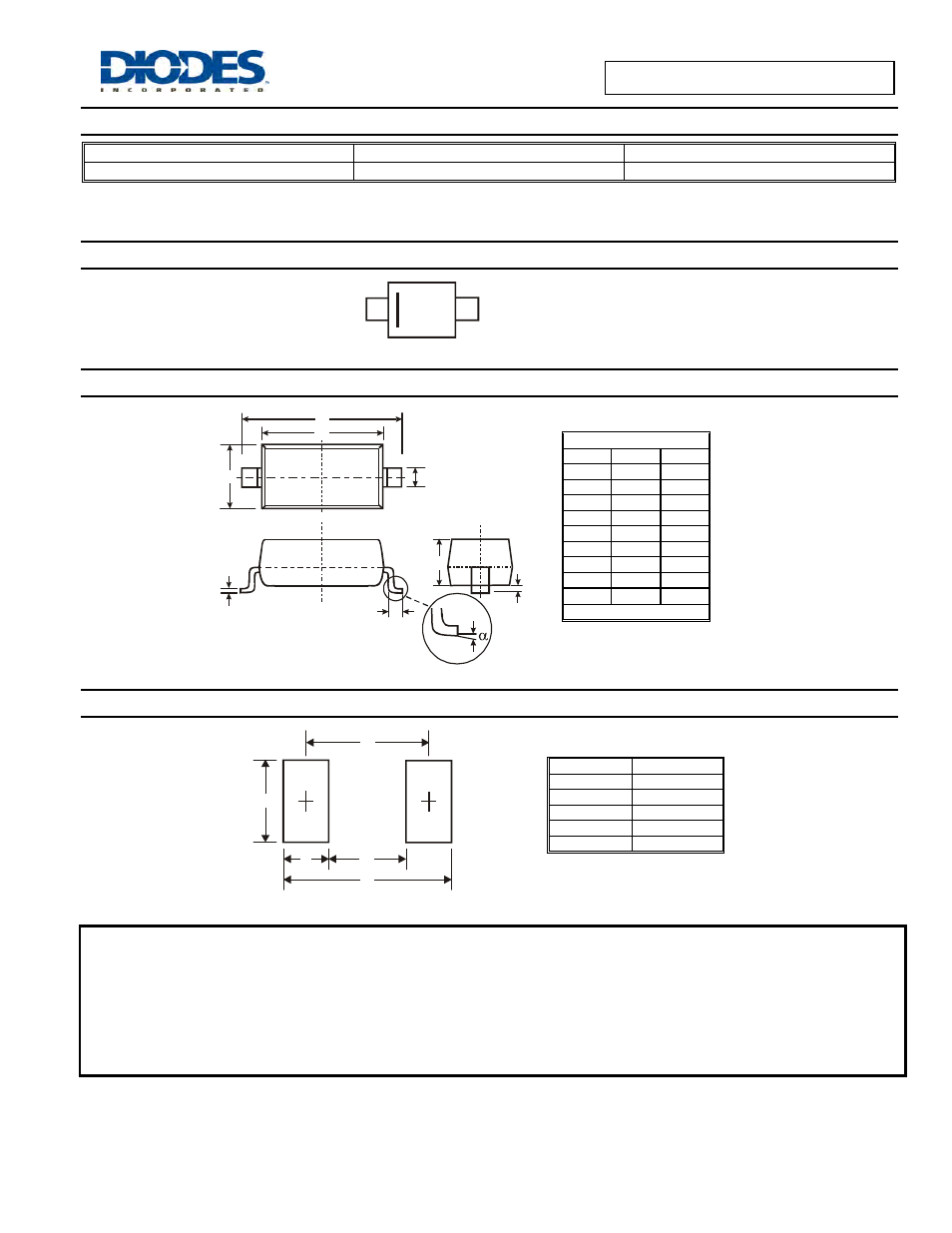

Package Outline Dimensions
Suggested Pad Layout
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
SOD-323
Dim Min Max
A 0.25 0.35
B 1.20 1.40
C 2.30 2.70
H 1.60 1.80
J 0.00 0.10
K 1.0 1.1
L 0.20 0.40
M 0.10 0.15
α 0° 8°
All Dimensions in mm
K
L
M J
C
H
B A
Z
X
C
G Y
Dimensions Value (in mm)
Z 3.75
G 1.05
X 0.65
Y 1.35
C 2.40
