A-8 INSTALLATION
ACTIV8™
A-8
CV Power Sources with Stud Connectors and no
Remote/Local Switch(See Figure A.6)
Place CV/CC switch in the feeder in the "CV" position.
CV Power Source with Twist-Mate Connectors and
Remote/Local Switch. (See Figure A.7)
Place the power source Remote/Local switch in the
Local position.
Place CV/CC switch in the feeder in the "CV" position.
K#
K2999-1
KP1696-XX
KP1697-XX
See Magnum Literature
K1803-XX
Description
ACTIV8™
Drive Roll Kit
Welding Gun
CC power Source
Welding Cables
Work clip
Work
Electrode ACTIV8™
RANGER 250, 250 LPG
RANGER 305G, 305D
RANGER 10,000
RANGER 3 PHASE
RANGER225, 225 GXT
COMMANDER 300
VANTAGE 300, 400, 500
AIR VANTAGE 500

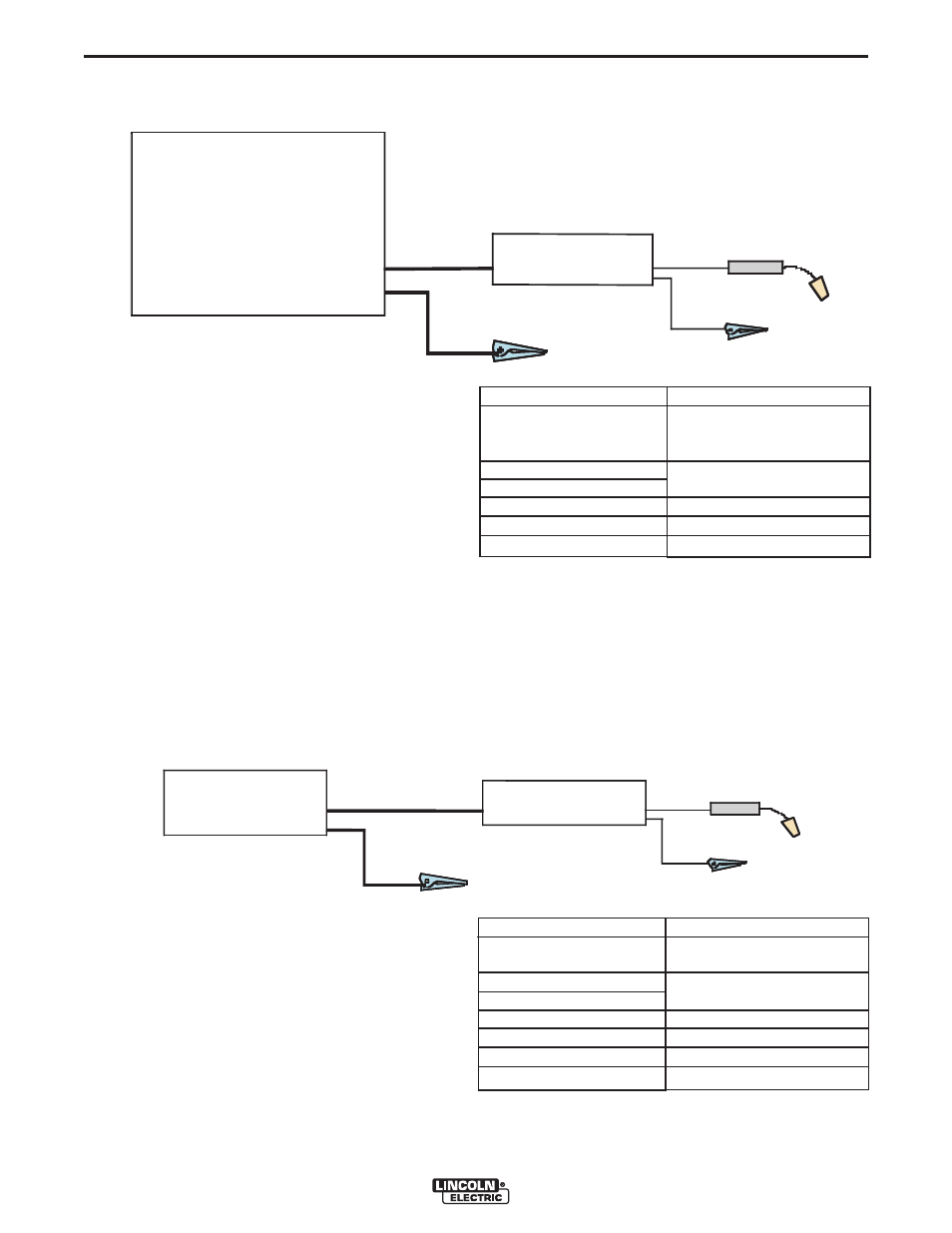

FIGURE A.6
V350-Pr
CV 305
o
Work
Electrode
W or k clip
ACTIV8™
FIGURE A.7
K#
K2999-1
KP1696-XX
KP1697-XX
See Magnum Literature
K1841-XX
K852-95
Description
ACTIV8™
Drive Roll Kit
Welding Gun
CV power Source
Welding Cables
Twist-Mate Cable Plug
