INSTALLATION
3
11
OPTIFLUX 5000
www.krohne.com 04/2011 - 4000686302 - HB OPTIFLUX 5000 FL R02 en
3.4 Installation conditions
3.4.1 Inlet and outlet
3.4.2 Mounting position

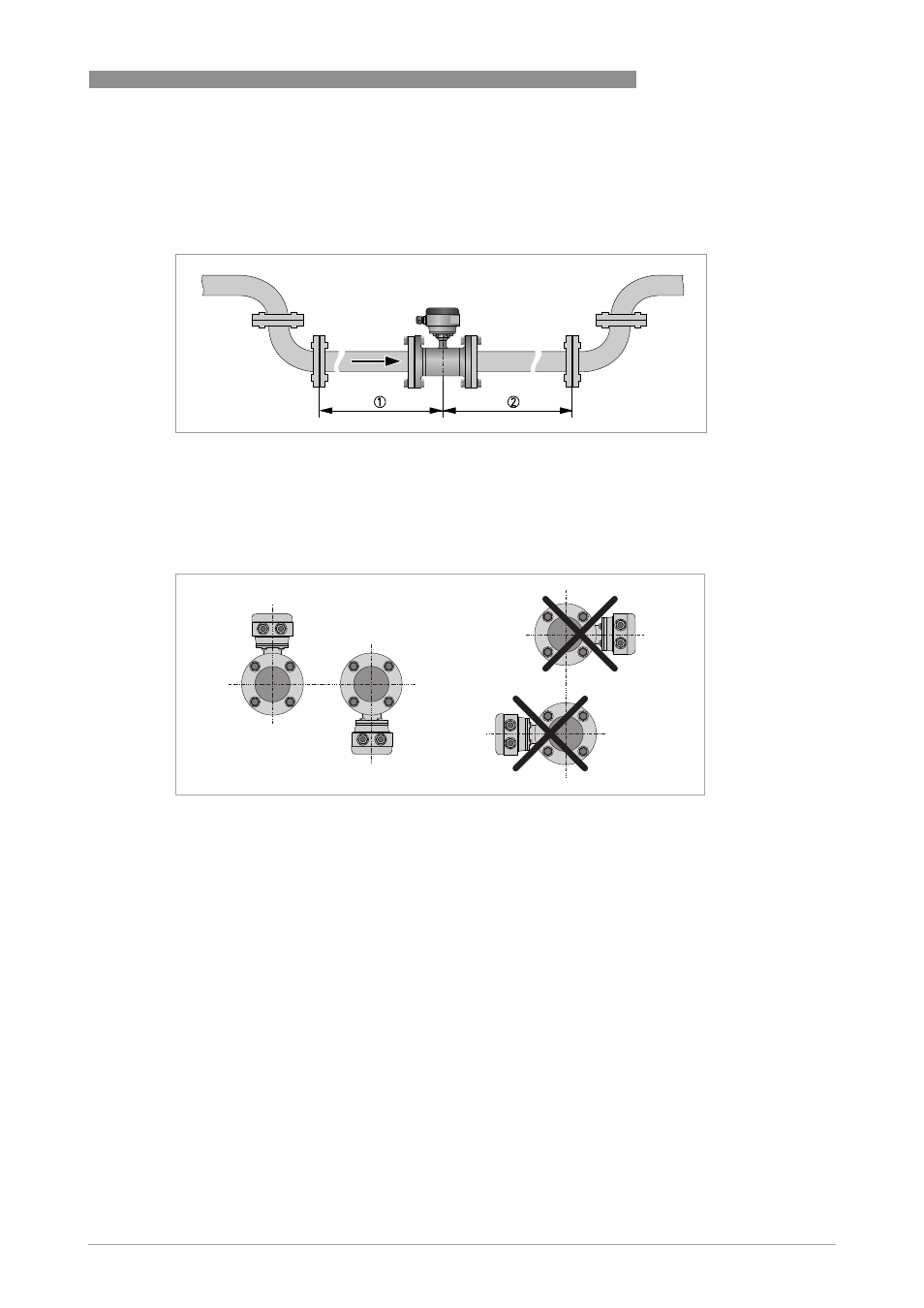

Figure 3-2: Recommended inlet and outlet sections
1 ≥ 5 DN
2 ≥ 2 DN
Figure 3-3: Mounting position
