Blue Angel Pumps BCP20ULS - Manual (Page 3)

3
Model BCP20ULS
www.blueangelpumps.com
Installation
In any installation
where property
damage and/or personal injury might
result from an inoperative or leaking
pump due to power outages, discharge
line blockage or any other reason, use
a backup system(s).
STEP 1: INSTALLATION OF PIPE
A. Insert the discharge pipe or pipe
nipple into the 3/8” ID plastic tube.
Before removing
pump from its
mounting position for service, always
disconnect electrical power to pump
and control switch. For any work on
pump or switch, ALWAYS unplug the
power cord. Do not just turn off circuit
break er or unscrew fuse.
STEP 2: MOUNTING
CONDENSATE UNIT
A. Position the pump below the
evaporator drain and/or furnace
drain.
B. The pump can be installed to the
wall or side of the appliance using
the two mounting brackets. Refer to
Figure 3.
STEP 3: INSTALLATION OF
CONDENSATE DRAIN LINES
A. To prevent pipe blockage in the
reservoir, modify the end of pipe or
tubing as illustrated in Figure 4.
B. Plumb flexible tube or pipe from the
condensate drain, and from the
furnace drain (if applicable), to the
inlet holes on the pump. Refer to
Figure 5.
STEP 4: INSTALLATION OF
DISCHARGE LINE
NOTE: Use 3/8” I.D. (max.) flexible
tubing. A hose clamp is recommended
(not provided).
A. Extend discharge pipe from barbed
check valve to the highest point
possible. Refer to Figure 6.
B. From this point, direct the
discharge line to the location of the
drainage source. Maintain a
continuous downward slope.
NOTE: Construct an inverted “U” (see
Figure 6) at the highest point of
discharge line if a continuous
downward slope is not possible.
Exercise care not to kink or “pinch off”
the flow of condensate liquid.

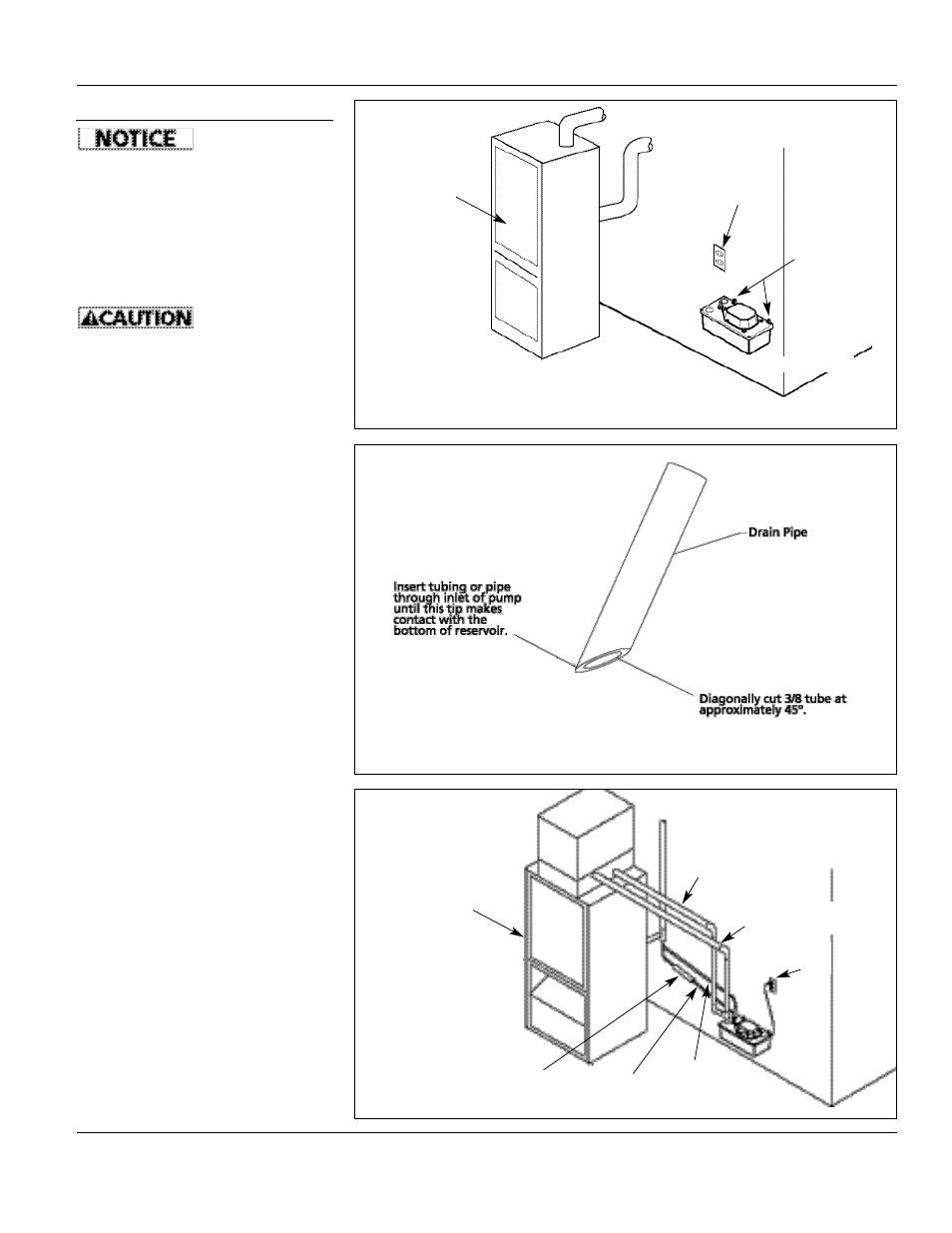

Figure 3 - Mounting location
Figure 4 - Modification of pipe end to prevent blockage
Figure 5 - Plumbing pipe from drain to inlet holes on pump
GFCI Outlet
Mounting
brackets
6 1/2” above floor
High efficiency
gas furnace
Main Drain from Coil
Overflow Drain from
Coil When Required
GFCI
Outlet
Overflow Drain
from Furnace Condensate Neutralizer
Cartridge (If Required) Main Drain
from Furnace
High efficiency
gas furnace
